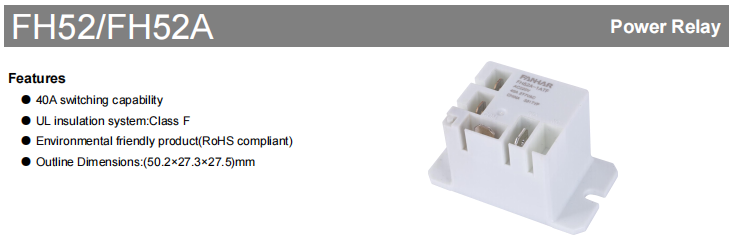

The FH52/FH52A is a high performance power relay from FANHAR designed for high load switching requirements. With a switching capacity of 40A and RoHS compliance, the FH52/FH52A is available in a variety of configurations for industrial control, power systems, home appliances and automation equipment.

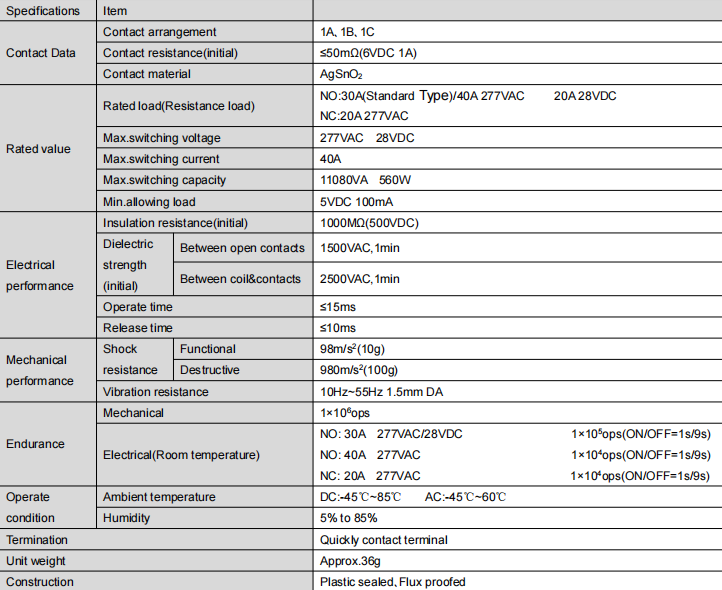

FH52/FH52A power relays have industry-leading 40A high-current switching capability, and can work stably in 277VAC and 28VDC voltage environments. Its outstanding electrical characteristics are shown in:
Ultra-low contact resistance (≤50mΩ), effectively reducing energy loss
Insulation resistance of up to 1000MΩ to ensure safe isolation
1500VAC/1 minute voltage protection to prevent breakdown risk
Maximum switching capacity up to 11080VA (AC) and 560W (DC)
The relay is manufactured with high quality materials and precision craftsmanship for an extra-long service life:
Mechanical life up to 1,000,000 operations to meet frequent switching needs
Electrical life up to 1,000,000 operations under a 30A load.
AgSnO₂ contact material, anti-arc and anti-oxidation.
Optional plastic sealing structure, dustproof and corrosion-resistant
FH52/FH52A achieves fast response with optimised electromagnetic system design:
Action time ≤15ms, release time ≤10ms.
Precise timing control capability
Stable contact pressure design
Multiple coil voltage options (DC5-110V/AC12-277V)
To meet the needs of different application scenarios, the relay has:
Wide temperature operating range (-45℃~85℃)
5%~85% humidity adaptability
Anti-vibration (10Hz~55Hz) and anti-shock (980m/s²) performance
Optional dust and corrosion resistant sealing structure

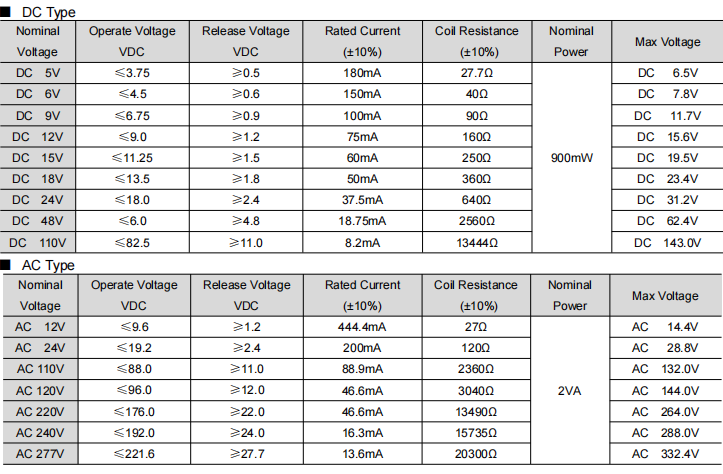

FH52 is a DC type and FH52A is an AC type, supporting a wide range of rated voltages:
Overall dimensions: 50.2 x 27.3 x 27.5mm, compact design saves installation space.
Package type:
Flux proofed: Suitable for clean environments.
Plastic sealed type (Plastic sealed): suitable for environments containing H₂S, SO₂, NO₂ and other pollutants.
Terminal type: Quick-contact terminals for easy installation and maintenance.
FH52/FH52A relays are widely used in the following fields:
Industrial control: PLC system, motor control, automation equipment.
Power system: power distribution cabinet, power switching, UPS system.
Household appliances: air conditioners, washing machines, electric water heaters and other high-power equipment.
New energy: solar energy inverter, charging pile and so on.
1. To maintain the performance of the relay, please avoid dropping the product or subjecting it to mechanical shock.
2. Plastic sealed type is recommended in polluted environments.
3. This specification is for reference only, product parameters may be updated, please refer to the latest information.
