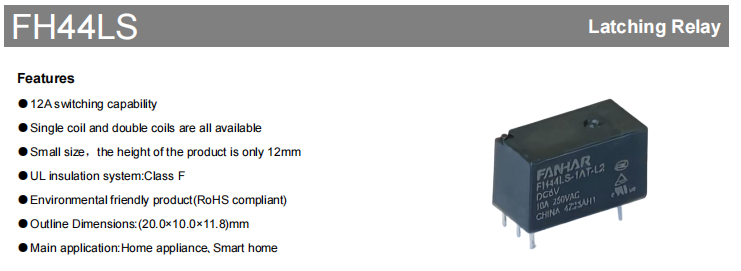

FH44LS is a relay incorporating superior magnetic retention technology, offering both single coil and dual coil driving modes, ideal for intelligent control applications requiring high reliability and low power consumption. Its tiny dimensions, superior electrical performance, and longevity render it an optimal selection for smart home applications, industrial automation, and renewable energy equipment. The products adhere to RoHS environmental regulations and have obtained UL, TUV, CQC, and other international certifications, guaranteeing safe and reliable applications globally.

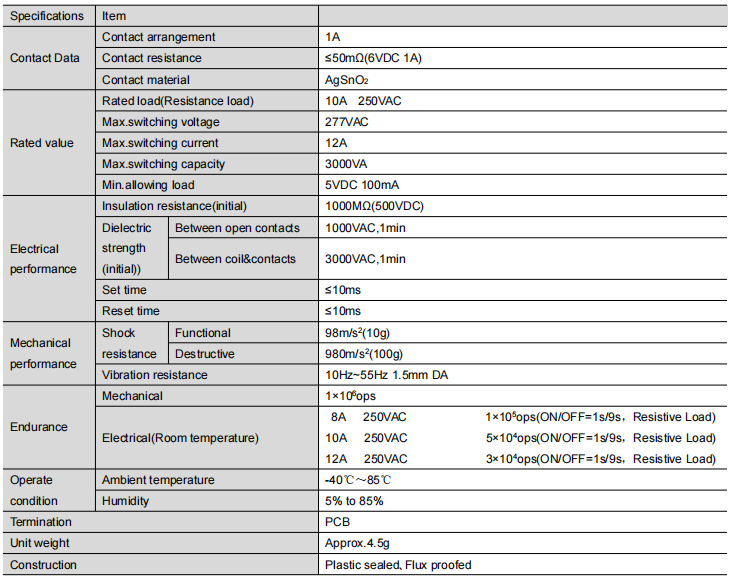

High-current switching capability: maximum switching current 12A, rated load 10A 250VAC, can easily drive all kinds of household appliances and industrial equipment.
Minimal contact resistance: ≤50mΩ (6VDC 1A), diminishing energy loss and enhancing system efficiency.
Exceptional insulation performance: insulation resistance of 1000MΩ (500VDC), withstand voltage of 3000VAC (1 minute), ensuring secure isolation.
Rapid response: action/reset time ≤10ms, appropriate for high-frequency switching applications.
Bistable design: only a short pulse is needed to switch state, no need for continuous power supply, significantly reducing energy consumption.

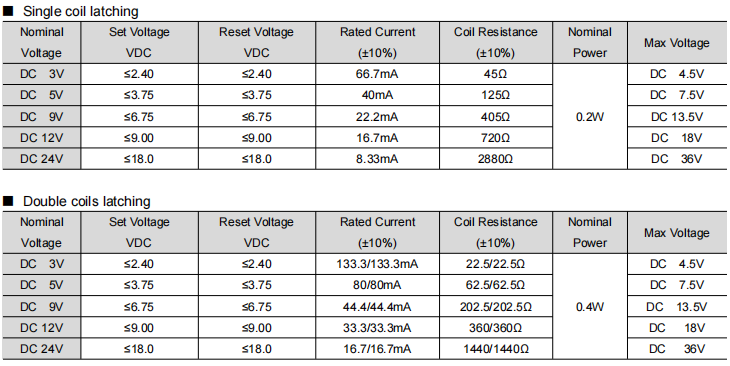

Wide voltage adaption: support 3V/5V/9V/12V/24VDC coil voltage, compatible with all kinds of control circuits.
Single coil type: conserves PCB area by polarity-based control state switching.
Dual coil type: stronger anti-interference, clearer logic, and independent SET/RESET control.
Mechanical lifespan: up to 1 million actuations, appropriate for high-frequency switching applications.
Resilient to extreme environments: operating temperature -40℃ to 85℃, humidity 5% to 85%, accommodating intricate working situations.
Contact material: AgSnO₂ (silver tin oxide), arc-resistant, oxidation-resistant, prolonging contact life.
Plastic sealing type: dust-proof, anti-corrosive gases (H₂S, SO₂, etc.), suitable for industrial environments.
Anti-soldering flux type: Suitable for clean environment, better cost.

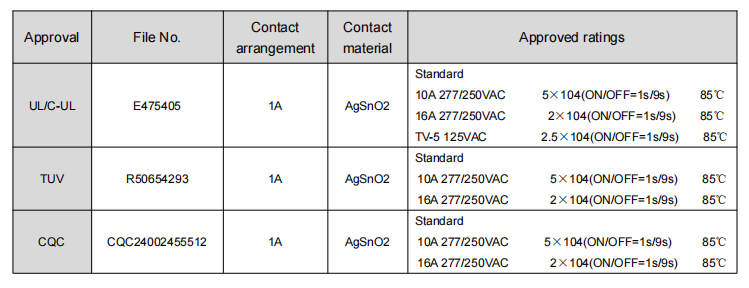

International certification: UL (E475405), TUV (R50654293), CQC (CQC24002455512) certified to meet global safety standards.

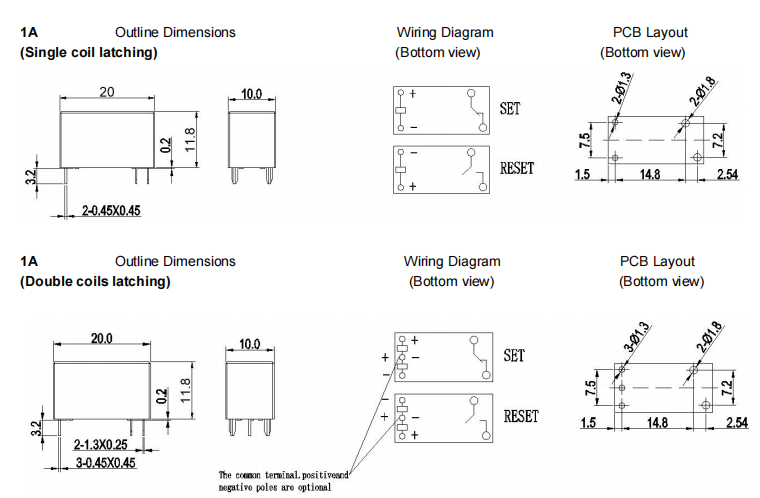

has a small size (20 x 10 x 11.8mm) and weighs only 4.5g, making it suitable for high-density PCB layouts.
Standard PCB pins facilitate automated SMD or plug-in operations, hence decreasing production expenses.
Smart switches, curtain motors, smart sockets
Control of home appliances such as air-conditioners, washing machines, coffee machines, etc.
PLC control module, motor drive
Power management, battery charging and discharging system
Solar inverters, energy storage systems
Charging pile control circuits
Strict testing: Each relay is tested electrically, mechanically and environmentally before leaving the factory to ensure zero defects.
Global support: We provide technical documentation, sample request and after-sales support to help customers to go into production quickly.
Choose FH44LS to provide lasting power for your intelligent control system with excellent performance and reliable quality!
