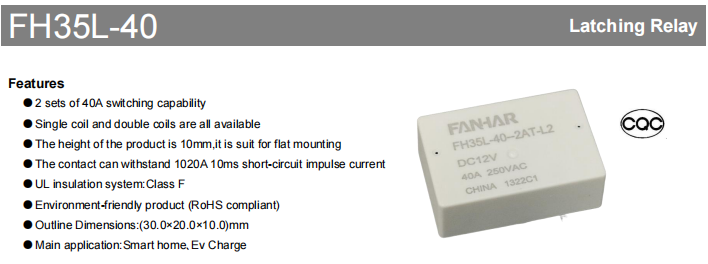

High performance latching relays like the FH35L-40 are made for use in electric vehicle charging and smart home applications. This relay is perfect for use in contemporary electronic control systems because of its small size, high load capacity, and superior electrical performance.
High load capacity: the contact points can tolerate 1020A with two sets of 40A switching capacity. Short-circuit inrush current of 10 ms

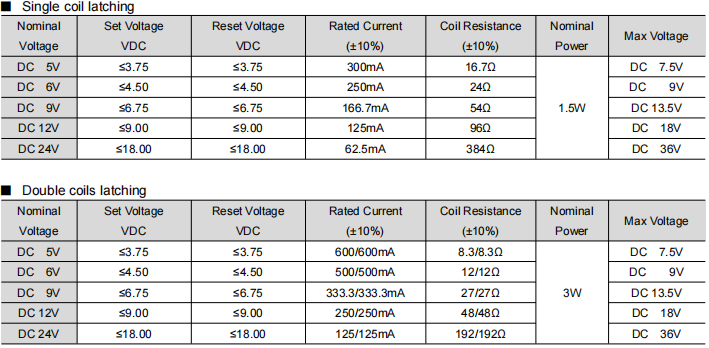

Dual-version design: offered in single-coil and dual-coil variants to accommodate various application needs
Ultra-slim design: only 10 mm high, ideal for placement on a flat surface, and space-saving
Eco-friendly materials: composed of eco-friendly materials and complies with RoHS
Dependable insulation: UL Class F insulation system to guarantee dependable and secure functioning
Long-lasting design Electrical life (at ambient temperature) up to 6,000 cycles (40A 250VAC), mechanical life up to 300,000 cycles
FH35L-40 relays are especially suitable for:
Smart home control systems
Electric vehicle charging equipment
Industrial automation control systems
Power distribution systems
Electronic equipment requiring high reliability switching
High Reliability: Adopting high quality AgSnO₂ contact material to ensure long term stable operation
Energy Saving Design: Latching feature only requires pulse power supply to maintain the state, reducing energy consumption
Compact Size: Ultra-small volume of 30.0×20.0×10.0mm, suitable for space-constrained applications
Wide Voltage Range: A variety of rated voltages are available to adapt to different power supply systems
Environmental Adaptation: Wide temperature operating range, suitable for harsh Environment
It is recommended to reset the relay by applying the rated pulse voltage prior to installation.
Avoid dropping the product in order to maintain the performance parameters.
Ensure that the rated voltage is reached for Set or Reset operation, and that the pulse width is ≥5 times the operating time.
Do not supply power to the Set and Reset coils at the same time. Do not supply power to the "Set" and "Reset" coils at the same time.
The FH35L-40 latching relay is the best choice for a lot of tough switching tasks since it works so well and is so reliable. For additional information about the technical aspects or to make changes, please get in touch with the experts at Zhejiang Fanhar Electronics Co.
