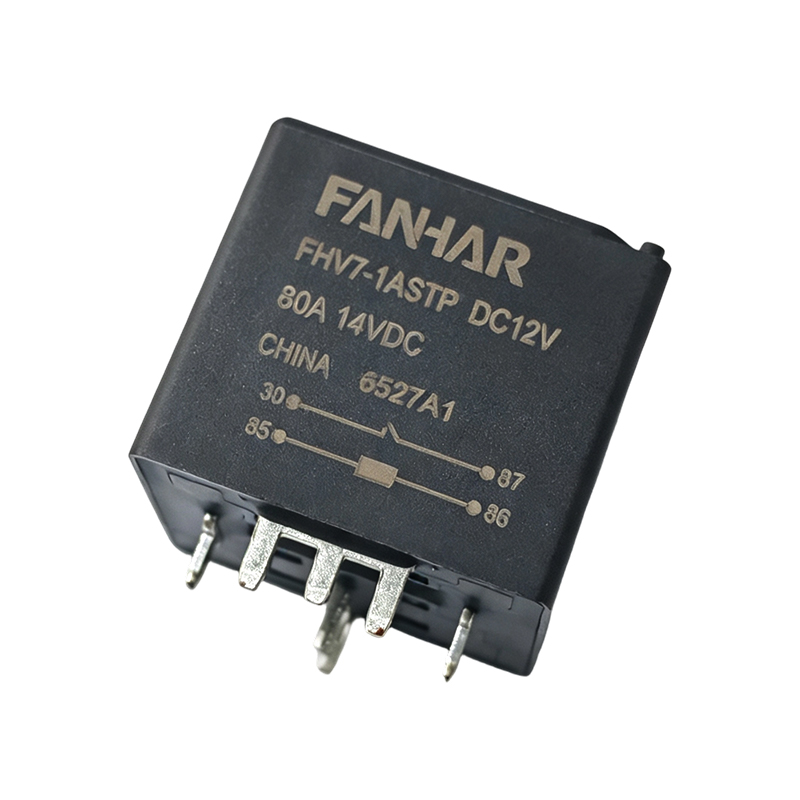

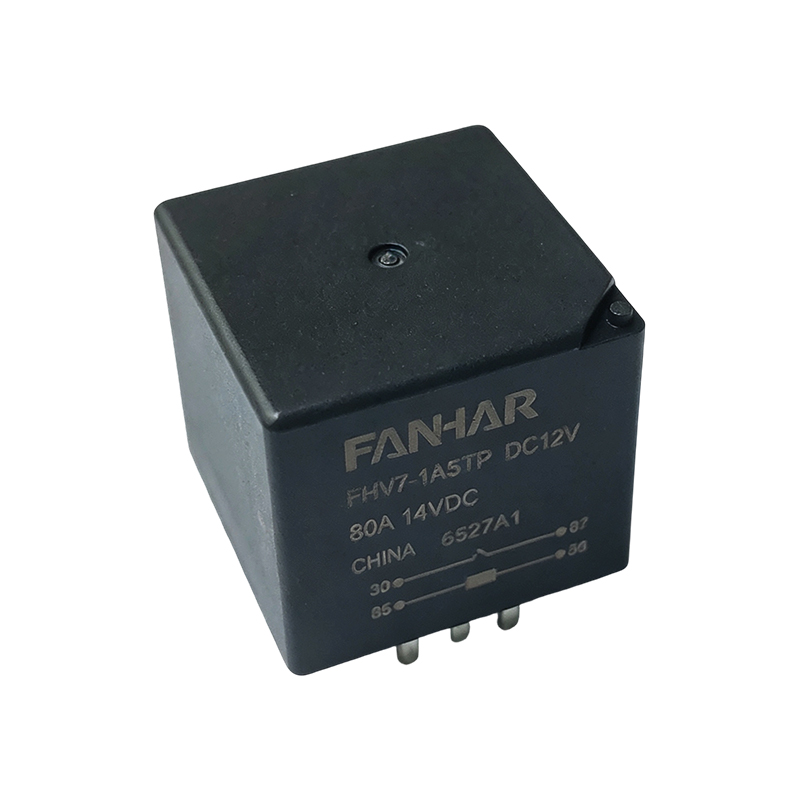

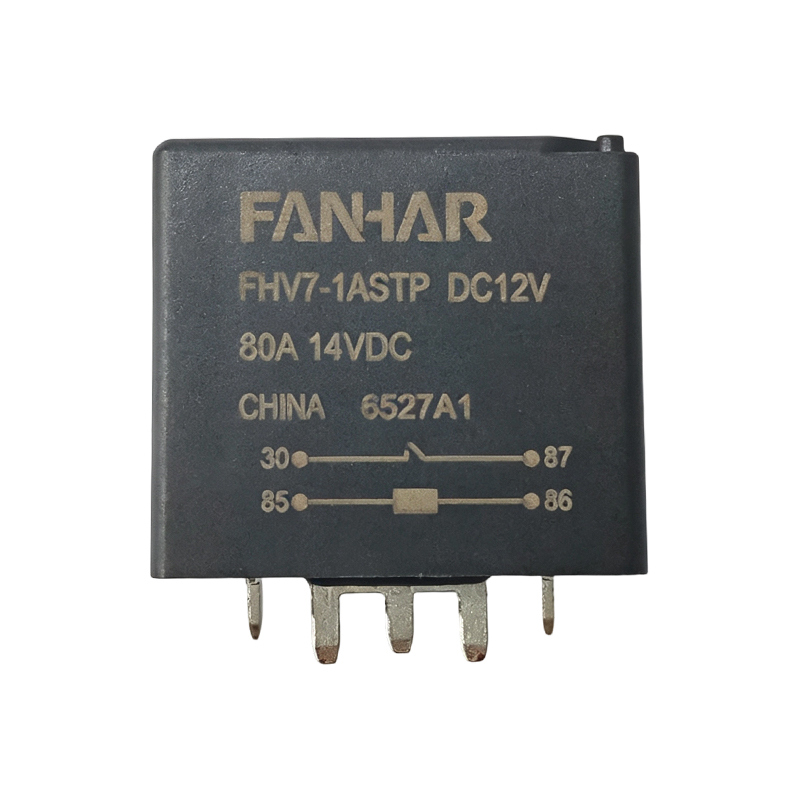

FHV7 80A Automotive Power Relay for ABS and Cooling Fan Systems

FHV7 80A Automotive Power Relay for ABS and Cooling Fan Systems

Features
Micro-sized
Contact load capacity up to 80A

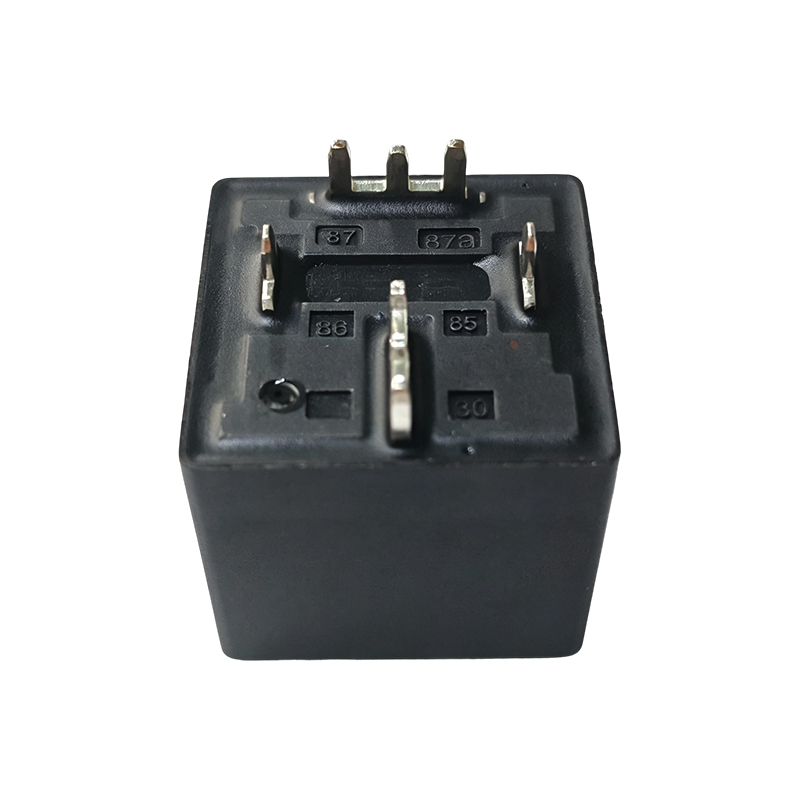

Terminal types: QC and PCB versions available
Offered in plastic-sealed and dust-proof types
Dimensions: (26.5×26.5×23.5) mm
Main applications: Rear window defrosters, battery disconnect units, automotive air conditioning, fog lamp/headlight control, power
distribution, anti-lock braking systems (ABS), traction control systems, high-speed fan control

  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item



Contact Data

Contact arrangement

1A

Contact resistance(initial)

≤100mΩ

Contact material

AgSnO2





Rated Load

Control Load (Resistive)

80A/14VDC

Maximum Switching Voltage

75VDC

Maximum Switching Current

80A

Maximum Switching Capacity

1120W

Minimum Permissible Load

6VDC 1A







Electrical

performance

Insulation resistance(initial)

100MΩ (500VDC)

Dielectric strength

(initial)

Between   open

Main contacts

50Hz 500VAC, 1 minute

Between coil & Main contacts

50Hz 750VAC, 1minute

Set time

≤10ms

Reset time

≤10ms

Mechanical

performance

Shock

Stability

294m/s2

Strength

294m/s2

Vibration

10Hz~55Hz 3.0mm double amplitude

Endurance

Mechanical

1× 107ops

Electrical (at room temperature)

1× 105ops

Condition

Ambient Temperature

-40℃~85℃/125℃ (special requirements to be specified))

Humidity

5% to 85%

Termination

PCB solder type; quick-connect type

Weight

Approx. 38g (without mounting bracket), 41g (with plastic mounting bracket), 46g (with metal mounting bracket)

Enclosure Type

Plastic sealed type, flux-proof type
