FH26L 100A 120A Latching Relay IEC62052-31 UC3 Compliant

• Smart Electricity Meter

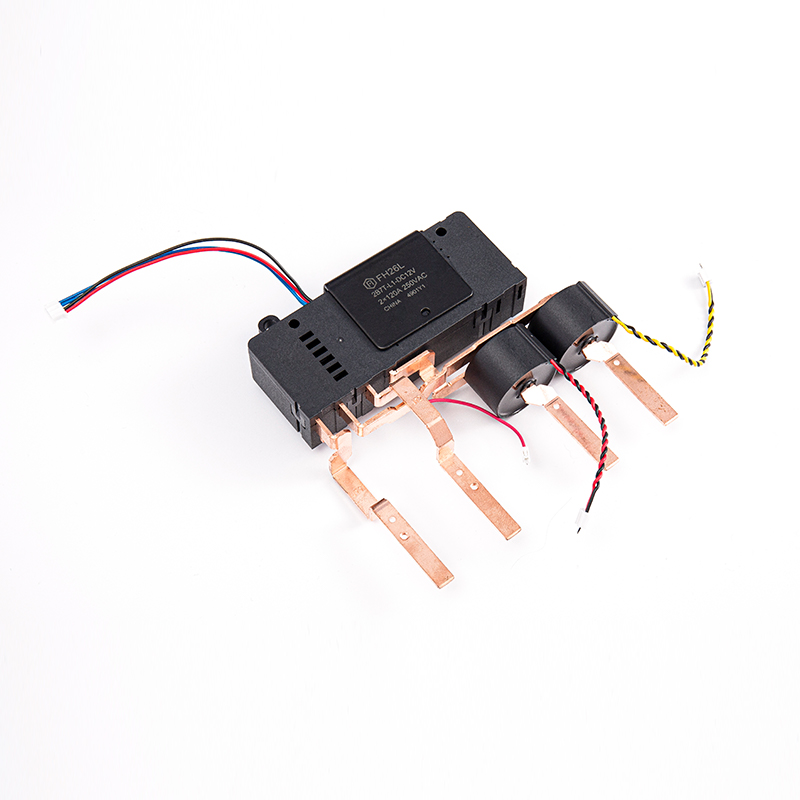

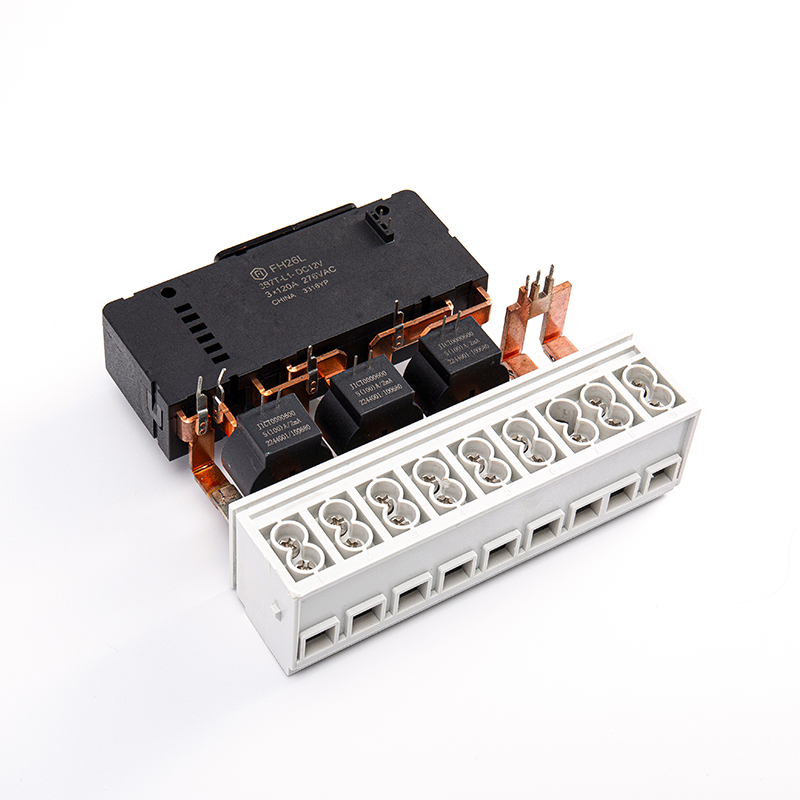

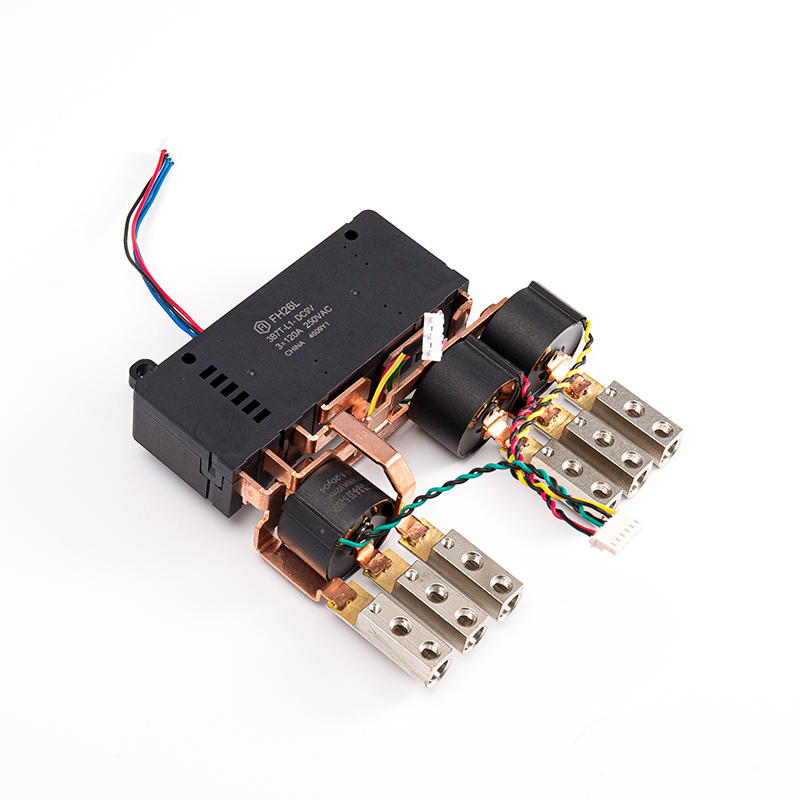

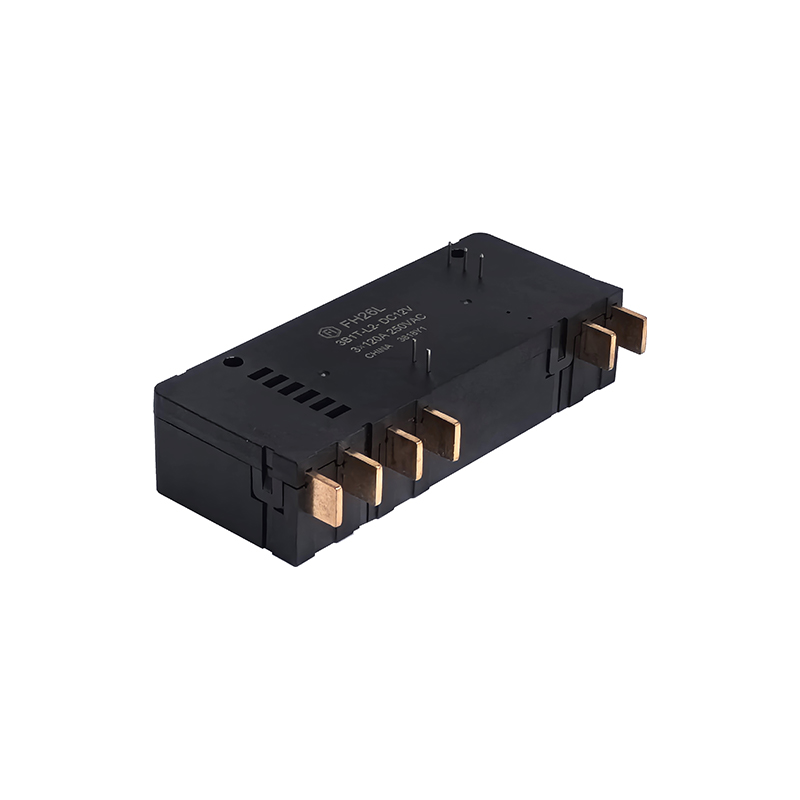

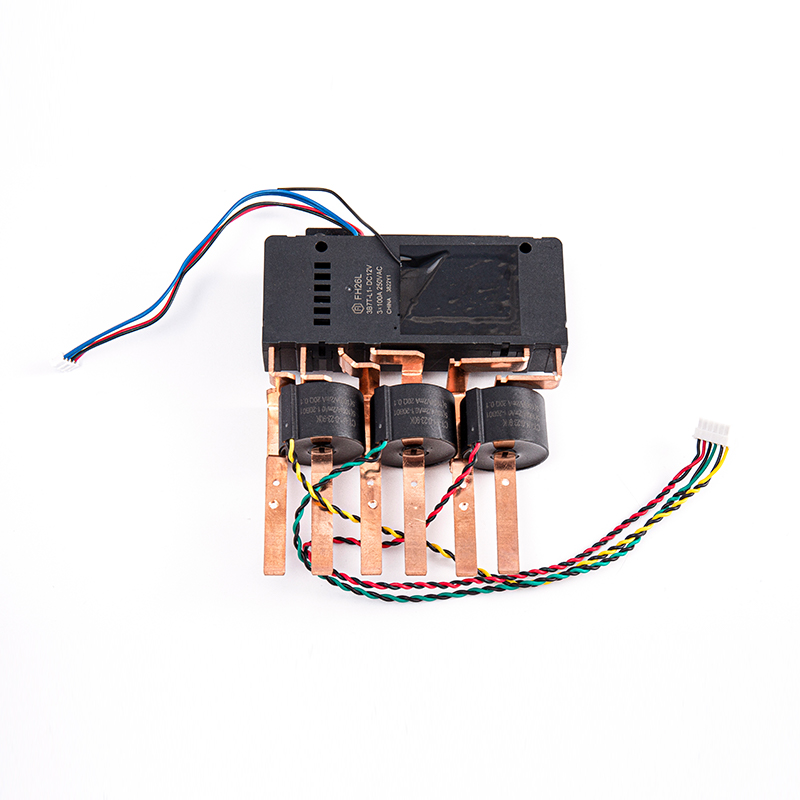

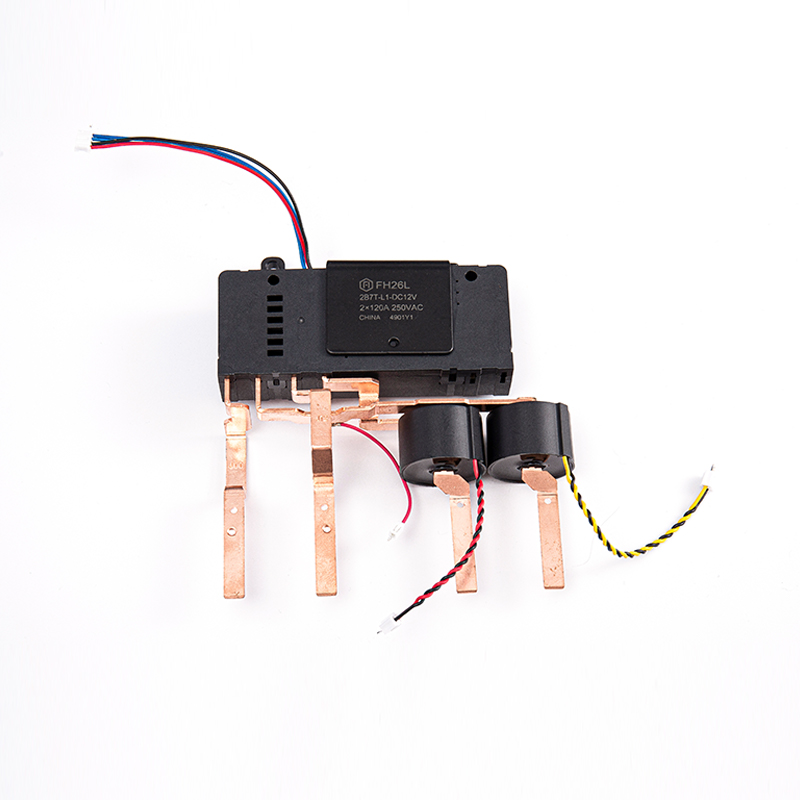

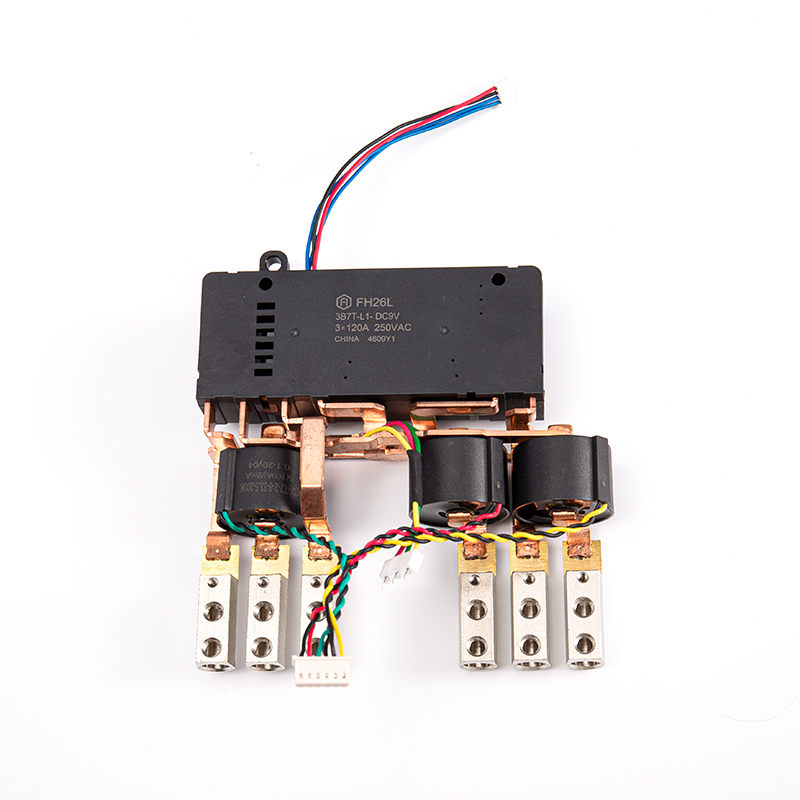

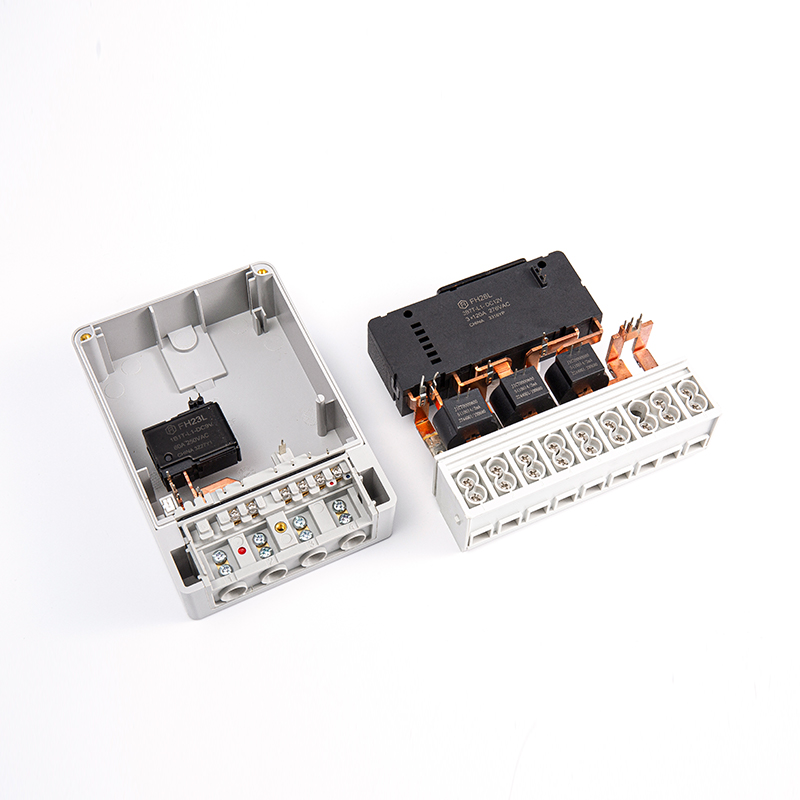

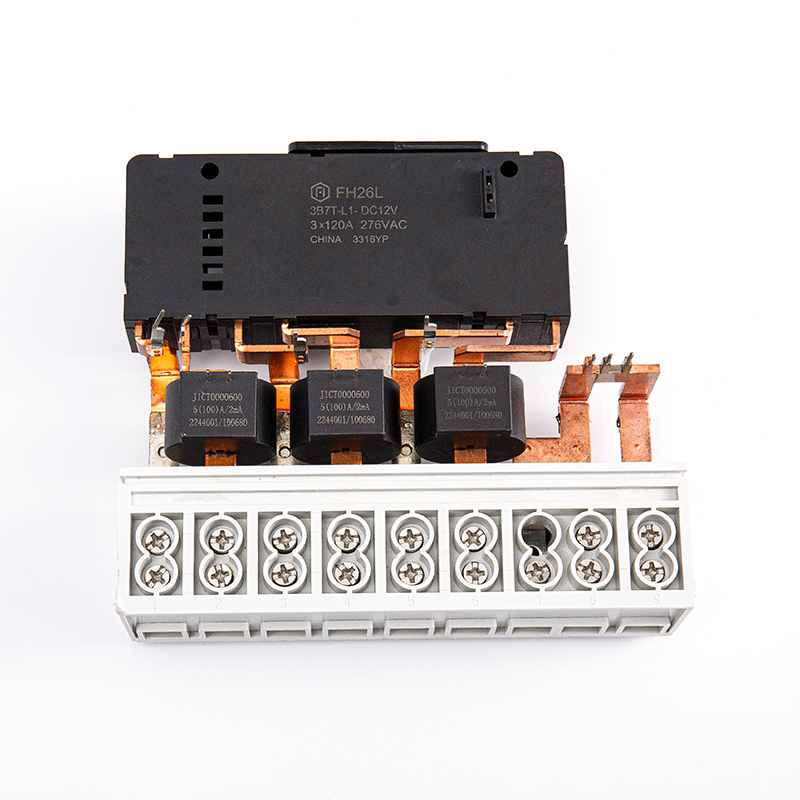

The FH26L Latching Relay 120A Contact Switching Capability is a high-performance electromagnetic relay with a contact switching capacity of 120A, suitable for a variety of application scenarios such as industry, construction and household appliances. The relay adopts low-power pulse drive technology, which can maintain its normally open or normally closed state without power supply, thereby realizing automatic switching function. The FH26L relay supports single-phase and three-phase circuits, can handle up to 120A continuous current, and has a coil-contact withstand voltage of up to 4kV to ensure safe operation in high-voltage environments. Its mechanical life can reach 1 million times and its electrical life exceeds 10,000 times, showing excellent durability and reliability. The relay uses silver alloy contact material with extremely low contact resistance (maximum 1mΩ), ensuring high conductivity and long-term stability. Its flexible contact configuration supports single-coil or dual-coil versions to meet different application requirements. The FH26L relay complies with RoHS environmental protection standards and has a compact size (98.4mm x 40.3mm x 37.8mm) for easy integration into PCB circuit boards. In addition, it also supports customized services, and can add additional functions such as copper leads, flexible leads or integrated rectifier bridges according to customer needs. With its high reliability, low power consumption and flexible configuration options, the FH26L latching relay has become an ideal choice for industrial automation, smart meters, UPS power control, and electric vehicle charging stations.
