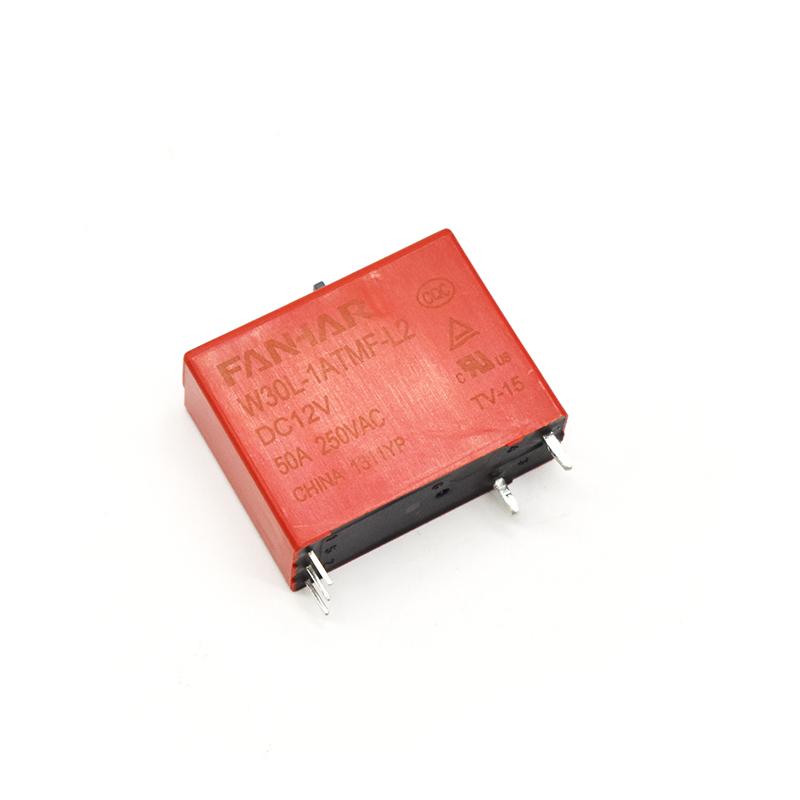

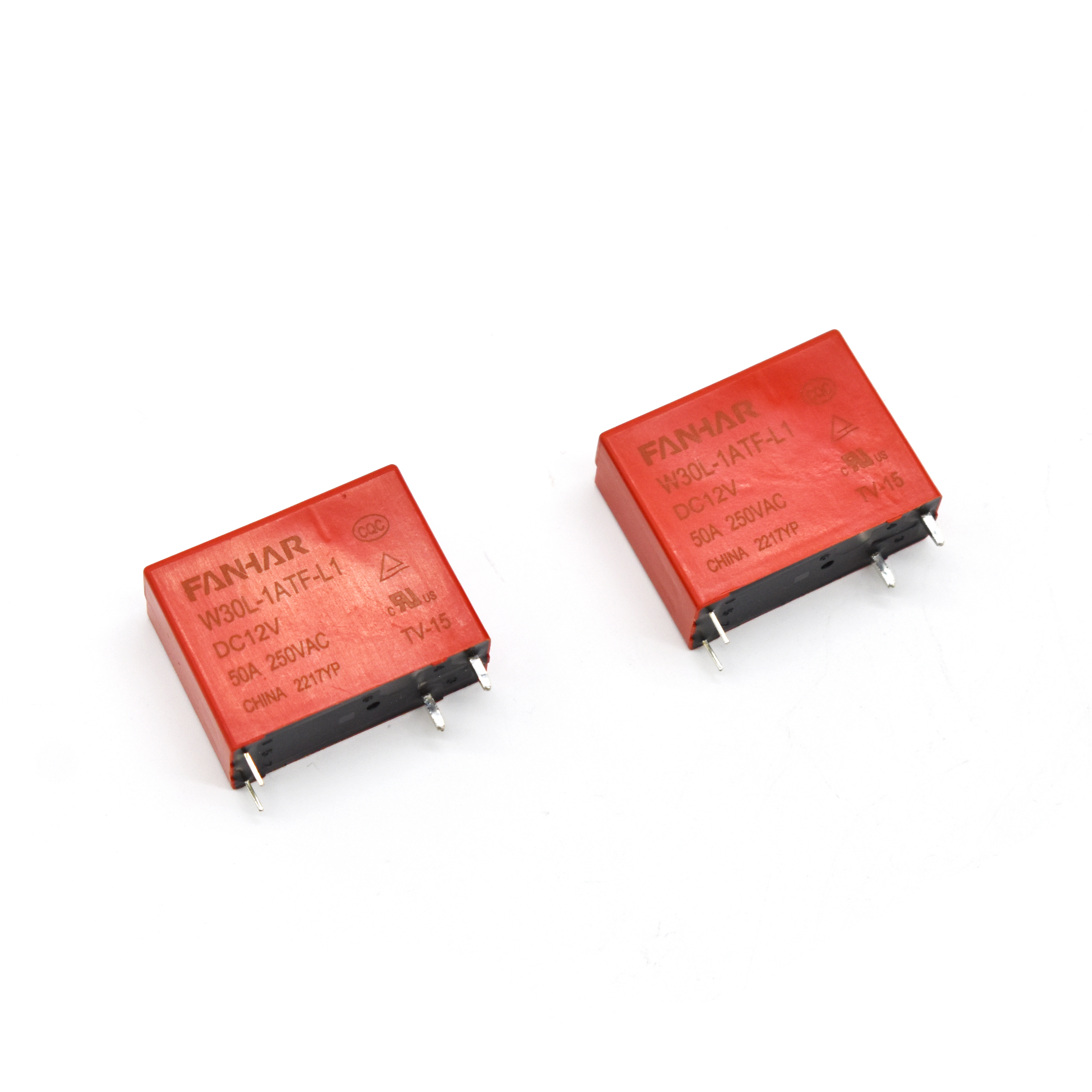

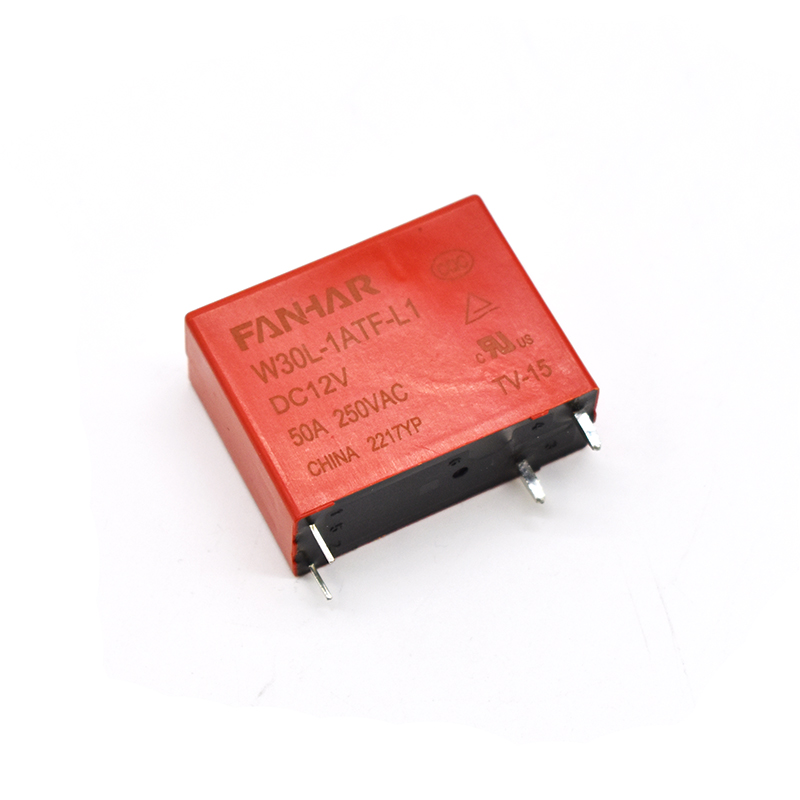

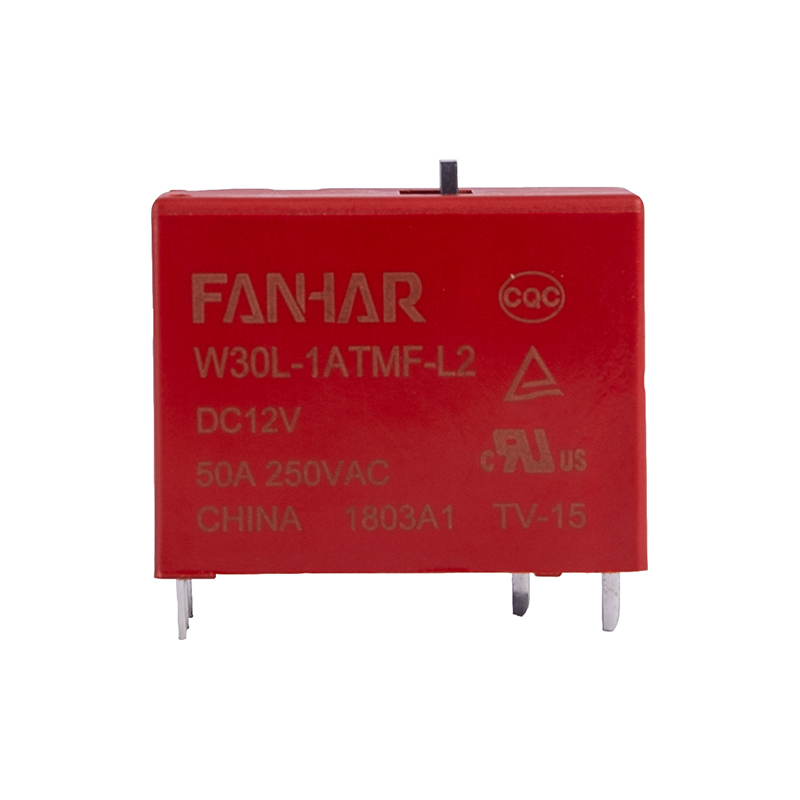

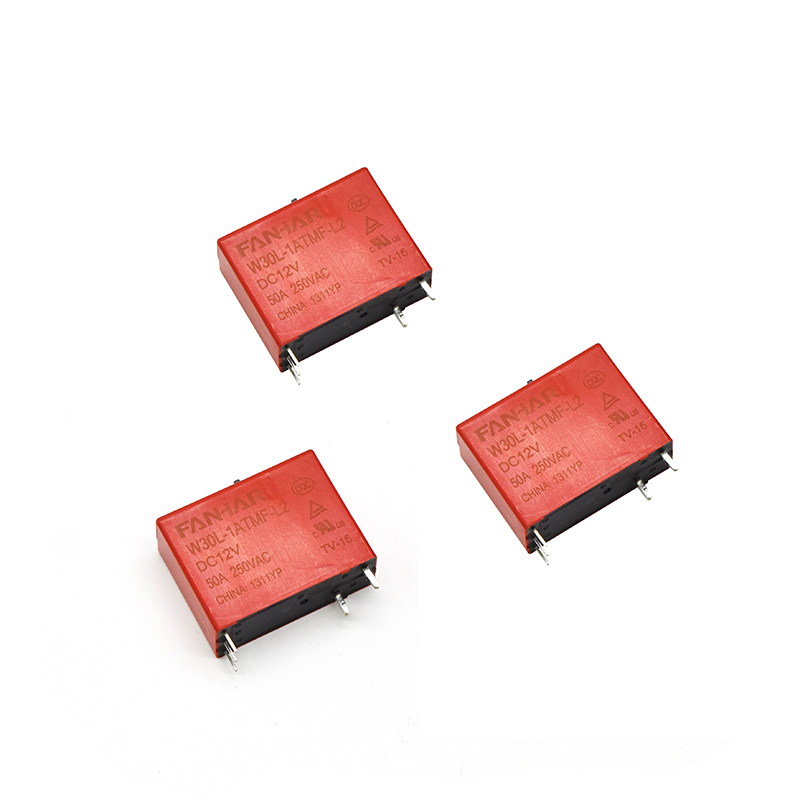

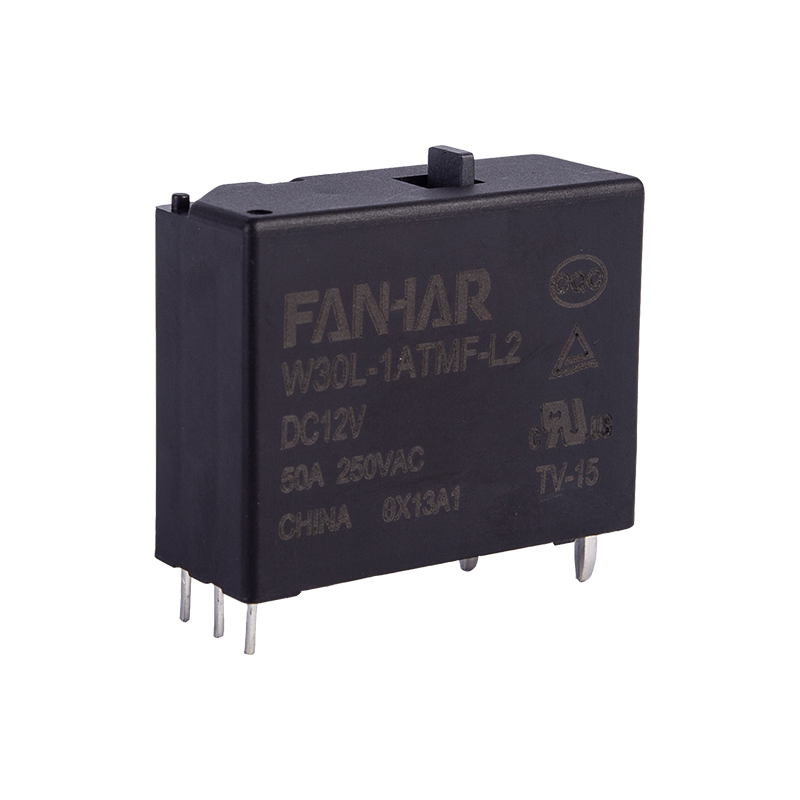

W30L 40A 50A Latching Relay UL TUV CQC Compliant

Features：
50A contact switching capability
We can provide the contact gap is ≥ 1.5mm
Contact arrangement:1A､1B､1C
Surge voltage(1.2/50μs):between contact and coil 12KV
Contact on and off can be controlled by a manual control switch
UL insulation system: Class F
Environmentally friendly product(RoHS compliant)
Outline Dimensions:(39.0×15×30.2)mm
Main application :Smart home, Lighting control

Download

PREV: FH31L 80A Latching Relay fIEC62052-31:2005 UC2 Compliant NEXT: No next article

Parameters
Application
Describe

Parameters

Specifications	Item
Contact Data	Contact arrangement		1A、1B	1C
	Contact resistance(initial)		≤20mΩ(6VDC 1A)
	Contact material		AgSnO₂
Rated value	Rated load(Resistance load)		50A 250VAC	40A 250VAC
	Max.switching voltage		440VAC	440VAC
	Max.switching current		50A	40A
	Max.switching capacity		12500VA	10000VA
Electrical performance	Insulation resistance(initial)		1000MΩ(500VDC)
	Dielectric strength (initial)	Between open contacts	2000VAC,1min	1500VAC,1min
		Between coil&contacts	4000VAC 1min
	Closing time		≤20ms
	Opening time		≤20ms
Surge Voltage (1.2/50μs)	Between coil&contacts		12KV
Mechanical performance	Shock resistance	Functional	98m/s2(10g)
		Destructive	980m/s2(100g)
	Vibration resistance		10Hz~55Hz 1.5mm DA
Endurance	Mechanical		1 × 10⁶ops
	Electrical	ON/OFF= 1S/9S	50A 250VAC 5× 10⁴ops(COSφ= 1)
	Electrical	ON/OFF=3S/3S	40A 250VAC 3× 10⁴ops(COSφ= 1)
Operate condition	Ambient temperature		-40℃~85℃
	Humidity		5%~85%RH
Termination			PCB type
Unit weight			Approx.31g
Construction			Plastic sealed,Flux proofed
