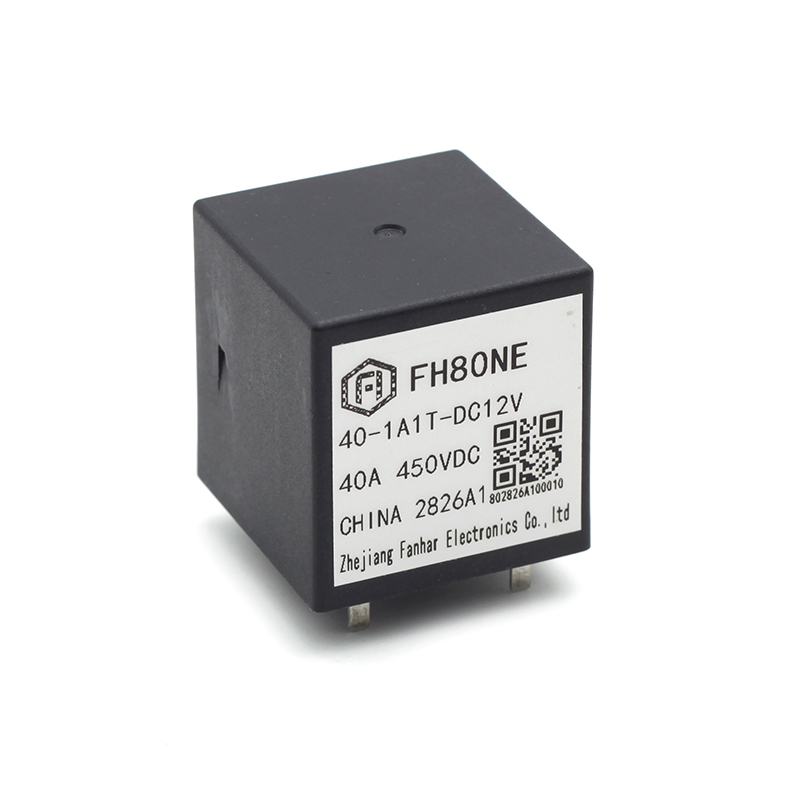

FH80NE 40A New Energy Relay

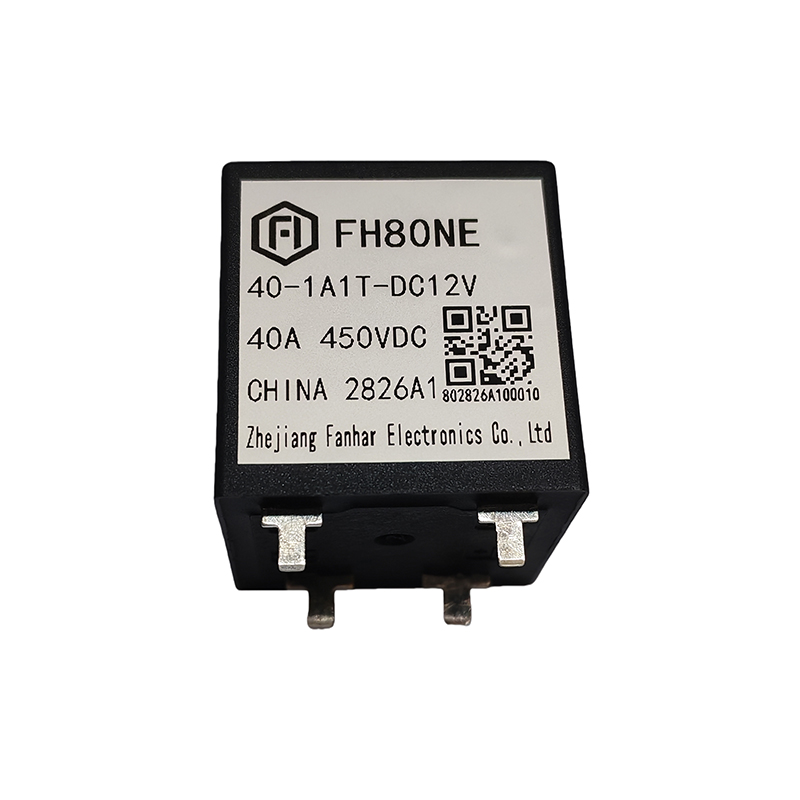

FH80NE 40A New Energy Relay

Features:

  • 40Acontinuouscarry current capability at 85 °C.
  • Safety certification comply withIEC60664-1
  • Environment-friendly product(RoHScompliant)
  • MainUses:Pre-charging and    heating relay for new energy vehicles
  • OutlineDimensions:(30x29.2x30.1)mm
  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item



Contact Data

Contact arrangement

1A

Contact resistance(initial)

≤5mΩ(6VDC 20A)

Contact material

AgSnO2

Rated value

Rated Current

40A

Rated load(Resistance load)

40A   450VDC

Max.switching voltage

750VDC

Max. breaking current

50A(450 VDC)≥1op

Max.switching capacity

22500VA

Electrical

performance

Insulation resistance(initial)

1000MΩ(500VDC)

Dielectric strength(Initial)

Between open contacts

2000VAC,1min

Between coil&contacts

3000VAC,1min

Operate time (at rated volt.)

≤30ms

Release time (at rated volt.)

≤10ms

Mechanical

performance

Shock  resistance

Functional

196m/s2(10g)

Destructive

490m/s2(100g)

Vibration resistance

10Hz~500Hz   49m/s²

Endurance

Mechanical

1×105ops





Electrical(Resistive)

Swithing: 1×103ops(450VDC,40A)

Swithing: 1×104ops(450VDC,10A)

Swithing:4×103ops(650VDC,12A)

Making : 7.5×104ops(450VDC,35A)

Making  :5×104ops(750VDC,40A)

Current carrying capacity

40A

60A: 30min

80A: 60s

160A: 5s

240A: 3s

400A: 0.6s

Operate

condition

Ambient temperature

-40℃~85℃

Humidity

5%~85%RH

Unit weight

Approx.55g (Without attachment)

Construction

Flux proofed
