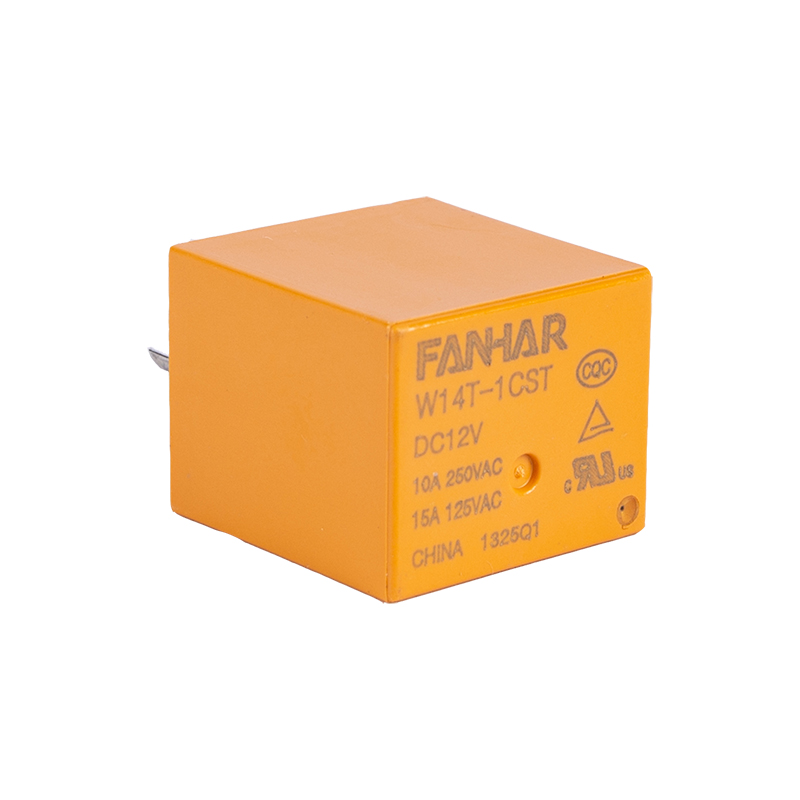

W14T 10A 15A Power Relay UL TUV CQC Compliant

• Smart Home

The W14T Power Relay 15A Switching Capability Subminiature is a miniature relay designed for high-power switching needs, suitable for space-constrained applications. This relay uses a compact package with a size of only 19.0 x 15.2 x 15.5 mm, and can achieve up to 15A switching capacity in a limited space, which is very suitable for electronic devices that require high efficiency and miniaturization. The relay supports two common configuration forms: Form A (NO) and Form C (DPDT), which can meet the needs of different circuit designs. Its standard PCB layout design facilitates integration into various electronic modules, and it is also available in plastic sealed and solder mask versions to meet the needs of use in harsh environments. In addition, the product meets the UL94 V-0 flame retardant rating and has passed the IEC 60335-1 certification, ensuring its reliability in terms of Safety. The W14T relay adopts a low-power coil design, with a single coil power consumption of approximately 0.4W and a dual coil power consumption of approximately 0.8W, which makes it more energy-efficient and efficient during operation. Its fast switching characteristics (contact time less than 10ms) enable it to complete the closing and opening of the circuit in a short time, which is very suitable for applications that require frequent operations. This relay also has good environmental adaptability, can withstand a wide operating temperature range, and supports voltage switching capabilities up to 300V. Its environmental characteristics also comply with RoHS standards, further enhancing the market competitiveness of the product. W14T Power Relay is a miniature relay that combines high performance, miniaturization, and reliability, and is an ideal choice for engineers when designing compact electronic devices.
