Understanding Electromechanical Relays, Multi-application Relays, and Automation Relays in Modern Industrial Control Systems

1. Fundamental Principles

1.1 Definition and Core Function

An electromechanical relay is an electronic control device that is widely used in automatic control circuits. Its main function is to control a larger current through a smaller current, thereby achieving automatic regulation, safety protection, and conversion of the circuit.

Key characteristics of electromechanical relays:

• Consists of a control system (input circuit) and a controlled system (output circuit)
• Functions as an "automatic switch" in electrical systems
• Provides electrical isolation between control and load circuits
• Enables remote control and signal amplification

1.2 Working Principle

The working principle of the relay is based on the electromagnetic effect. When the coil is energized, a magnetic field is generated to attract the armature, driving the contacts to connect or disconnect the circuit.

The operational sequence follows these steps:

2. Technical Specifications

2.1 Performance Parameters

Typical specifications of electromechanical relays include:

2.2 Contact Configurations

Common contact types for electromechanical relays:

• SPST (Single Pole Single Throw): One input and one output terminal; functions as simple on/off switch; available in normally open or normally closed variants
• SPDT (Single Pole Double Throw): One input switches between two outputs; provides selectable circuit paths
• DPDT (Double Pole Double Throw): Two fully isolated circuits with selectable outputs; ideal for simultaneous control of multiple circuits or redundant signal paths

3. Multi-application Relays

3.1 Application Domains

Multi-application relays are designed to address diverse operational requirements across multiple industrial sectors. These devices combine robust construction with flexible configuration options.

Primary application areas include:

3.2 Technical Advantages

Core advantages of multi-application relays:

• High Reliability and Safety: Quality materials and advanced manufacturing provide strong anti-interference, long lifespan, and stable operation
• Space-Saving Design: Compact size allows easy installation on high-density PCBs
• Fast Response: Quick switching meets demands of frequent operations in sophisticated automation systems
• Flexible Installation: Thoughtful design makes replacement and maintenance easy, reducing downtime

4. Automation Relays

4.1 Role in Industrial Systems

Automation relays serve as fundamental components in modern industrial automation architecture. They function as the interface between low-voltage control systems and high-power industrial equipment.

Key functions of automation relays:

• Signal Amplification: Converting weak sensor outputs into sufficient power to drive actuators
• Circuit Isolation: Providing electrical separation between sensitive control electronics and high-voltage power circuits
• Load Switching: Controlling motors, pumps, heaters with precise timing
• Safety Interlocking: Implementing emergency stop functions and protective shutdown sequences
• Sequence Control: Enabling coordinated operation of multiple machines in production lines

4.2 Integration with Control Systems

Automation relays integrate seamlessly with:

• Programmable Logic Controllers (PLCs)
• Supervisory Control and Data Acquisition (SCADA) systems
• Remote monitoring systems
• Building Management Systems (BMS)

5. Industry Applications

5.1 Manufacturing and Process Control

In industrial automation and process control systems, electromechanical relays and automation relays function as critical interfaces between programmable logic controllers and heavy actuators.

Specific applications include:

• Controlling motors on assembly lines
• Managing pumps and conveyor belts
• Implementing safety interlocks
• Enabling precise production rhythms

5.2 Power System Protection

Electrical relays act as protective devices in transmission and distribution systems. They detect faults such as overcurrent, under-voltage, or short circuits, and trigger circuit breakers to prevent damage to transformers, feeders, and connected equipment.

5.3 Home and Building Automation

Relays are widely used in commercial and industrial lighting systems. They integrate with occupancy sensors, building management systems, or programmable controllers to enable automated control, scheduled switching, and energy efficiency.

6. Company Profile: Zhejiang Fanhar Electronics

6.1 Corporate Overview

Zhejiang Fanhar Electronics Co., Ltd. is a national high-tech enterprise specializing in R&D, manufacturing, and sales of relays. The company maintains a professional team of nearly 500 employees and operates 30 fully automated production lines.

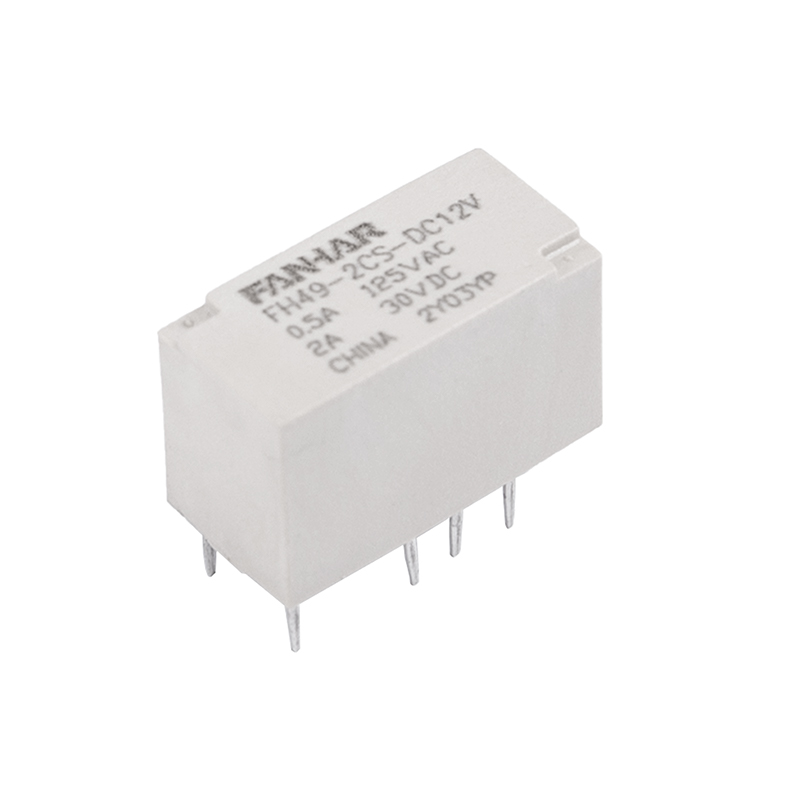

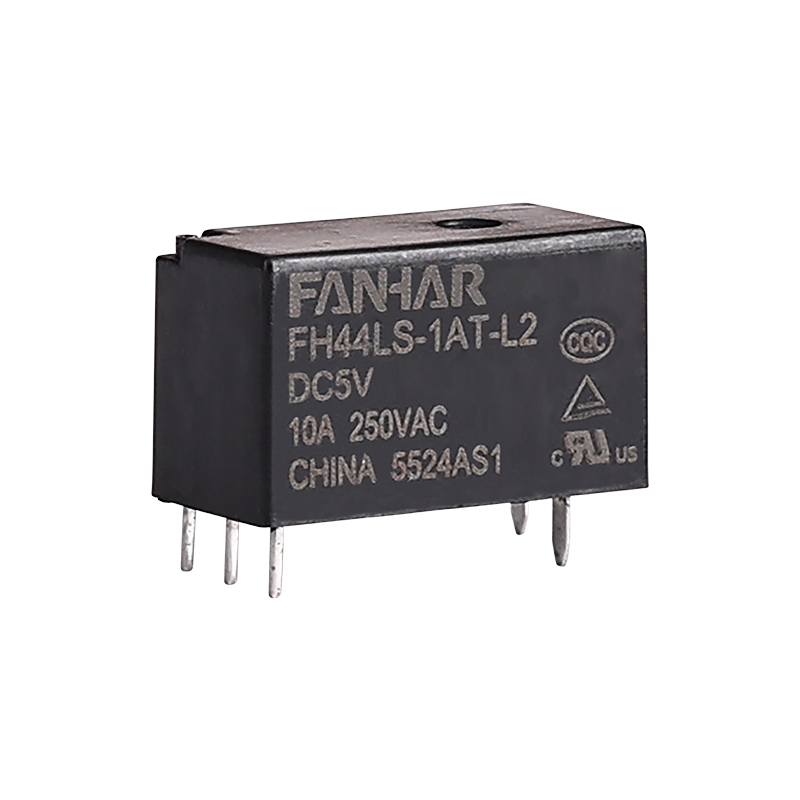

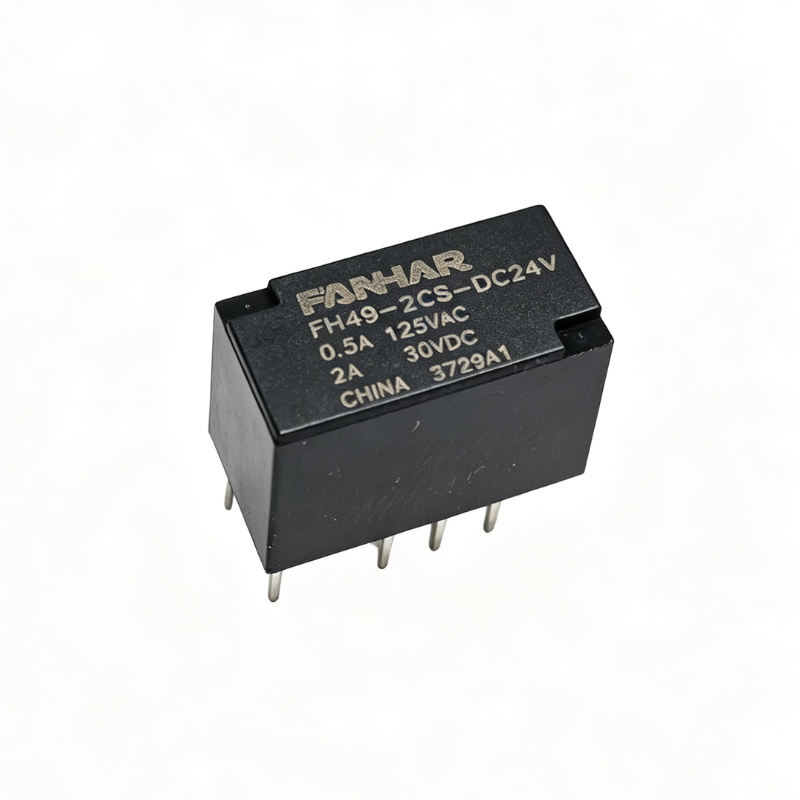

6.2 Product Portfolio

The company's products are widely applied in:

• Smart home systems
• Photovoltaic new energy
• Charging piles
• Smart meters
• Industrial control

6.3 Quality and Innovation

To better serve customers and meet market demands, Zhejiang Fanhar Electronics continuously improves its products and manufacturing technologies, investing 6%-8% of annual sales revenue in R&D and innovation.

The company has been recognized as a National High-Tech Enterprise and Provincial R&D Center, holding more than 40 national patents. Products have obtained international certifications including ISO9001, ISO14001, and ISO45001, as well as authoritative UL, TUV, and CQC certifications, fully complying with EU ROHS/REACH directives.

7. Comparison: Electromechanical vs. Solid-State Relays

7.1 Technical Differences

7.2 Selection Guidelines

Choose electromechanical relays for:

• High-current applications
• Clear physical isolation requirements
• Cost-sensitive designs
• Moderate switching frequencies
• Applications requiring audible confirmation of operation

Choose solid-state relays for:

• High-speed switching requirements
• Silent operation environments
• Extremely frequent switching operations
• Severe vibration or dust contamination
• Applications where mechanical wear is unacceptable

8. Selection Criteria

8.1 Technical Considerations

When selecting electromechanical relays, multi-application relays, or automation relays, evaluate the following factors:

8.2 Load Type Characteristics

Different load types present unique switching challenges:

• Resistive Loads: Heaters, incandescent lamps; present relatively benign switching conditions
• Inductive Loads: Motors, solenoids, transformers; generate high inrush currents and voltage spikes requiring enhanced contact materials and arc suppression
• Capacitive Loads: Power supplies, capacitor banks; present severe inrush conditions that may require pre-charge circuits

9. Maintenance and Troubleshooting

9.1 Common Failure Modes

Understanding failure modes helps prevent relay malfunction:

• Contact Welding: Contacts fuse closed due to excessive current or arcing; prevention includes proper sizing for inrush currents and arc suppression circuits
• Coil Burnout: Results from overvoltage or continuous operation beyond duty cycle
• Contact Corrosion: Caused by environmental exposure or infrequent operation
• Mechanical Wear: Normal degradation from repeated switching operations

9.2 Testing Procedures

Basic relay testing involves:

1. Measure coil resistance with multimeter (infinite resistance indicates open coil)
2. Apply rated voltage to coil terminals and verify audible switching
3. Measure continuity across contacts in energized and de-energized states
4. Verify contacts return to default states when voltage is removed

10. Future Trends

10.1 Technological Developments

The evolution of electromechanical relays, multi-application relays, and automation relays continues with several key trends:

• Miniaturization: Smaller relays capable of handling substantial loads while occupying minimal PCB area
• Smart Relays: Integration of sensors and communication protocols for real-time data and remote control
• Advanced Materials: Improved contact materials with enhanced arc resistance and longer operational life
• Energy Efficiency: Designs minimizing power consumption and maximizing durability

11. Frequently Asked Questions (FAQ)

Q1: What is the typical lifespan of an electromechanical relay?

A: The operational life depends heavily on load type and switching frequency. Under light resistive loads with infrequent switching, these devices can achieve millions of operational cycles. Heavy inductive loads or high-frequency switching may reduce service life to hundreds of thousands of cycles.

Q2: Why does my relay make a clicking noise?

A: The audible clicking is a normal characteristic of electromechanical relays, resulting from mechanical movement of the armature and contacts. This sound indicates proper mechanical function and provides useful feedback for troubleshooting.

Q3: How do I choose between EMR and SSR?

A: Choose electromechanical relays for high-current applications, clear physical isolation requirements, cost-sensitive designs, and moderate switching frequencies. Select solid-state relays for high-speed switching, silent operation, or environments with severe vibration.

Q4: What causes contact welding?

A: Contact welding typically results from excessive inrush current or prolonged arcing during switching. Prevention strategies include proper relay sizing for inrush currents and selection of relays with appropriate contact materials.

Q5: Can electromechanical relays switch both AC and DC?

A: Yes, but DC switching is more demanding because the absence of zero-crossings allows arcs to persist longer, causing greater contact erosion. Relays rated for DC switching typically have lower current ratings than AC equivalents.

Q6: What certifications should industrial relays have?

A: Important certifications include UL for North American markets, CE for European compliance, and IEC standards for international applications. Environmental compliance certifications such as ROHS and REACH ensure restriction of hazardous substances.

Q7: How do I test a relay?

A: Measure coil resistance with a multimeter, apply rated voltage and listen for switching, measure contact continuity in both states, and verify return to default positions when de-energized.

Q8: What is the difference between NO and NC contacts?

A: Normally open (NO) contacts are open when the coil is de-energized and close when energized. Normally closed (NC) contacts are closed when de-energized and open when energized.
