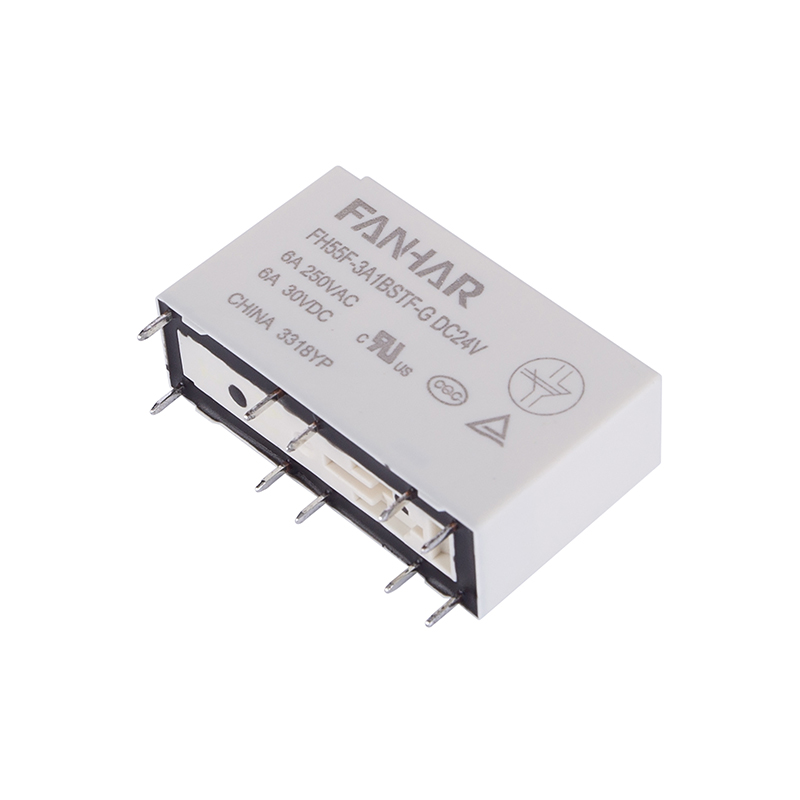

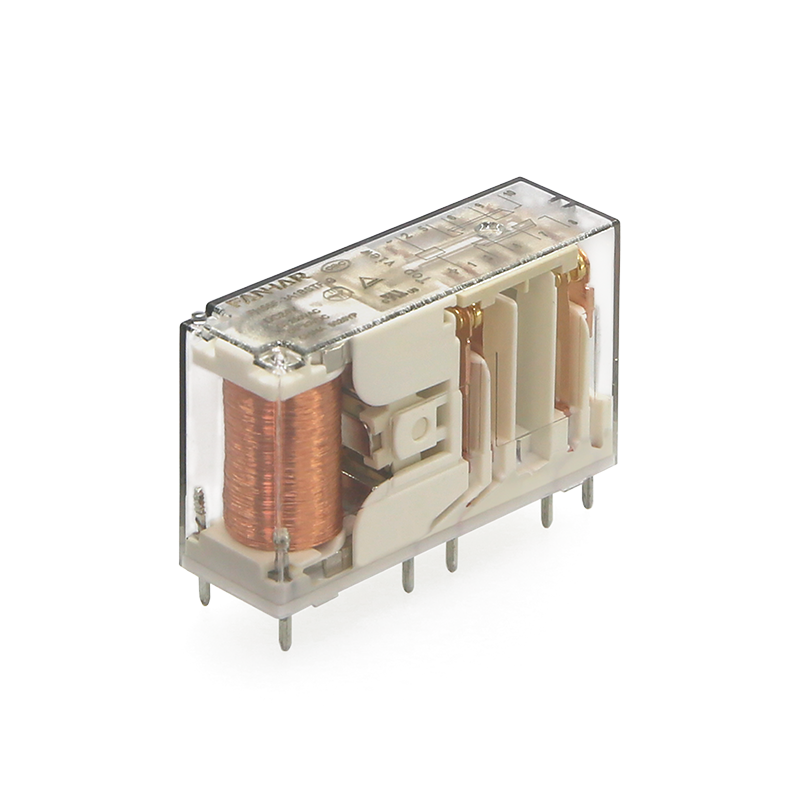

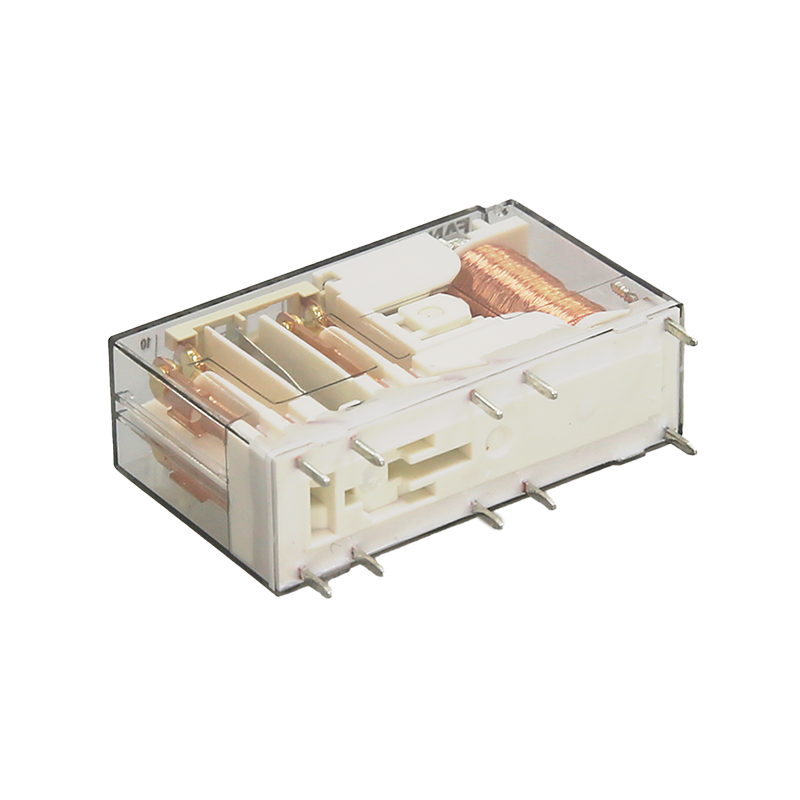

FH55F 6A Industrial Relay UL TUV CQC Compliant-Zhejiang Fanhar Electronics Co., Ltd.

Home / Products / Relay / Industrial Relay / FH55F 6A Industrial Relay UL TUV CQC Compliant

Features:

6Aswitching capability
Contact arrangement:3A1B,2A2B
Contact structure of mandatory oriented:EN50205compliant
Low input power consumption:360mW
UL insulation system:Class B､Class F
Strong insulation ability:Surge voltage (Between coil&contacts):10KV
Surge voltage(Between contact groups) (Waveform 1.2/50μs):5kV
Environmental friendly product(RoHS compliant)

Parameters

Specifications	Item
Contact Data	Contact arrangement		3A1B､2A2B
	Structural classification (According EN50205)		Class A mandatory orientation
	Contact resistance(initial)		≤100mΩ(6VDC 1A)
	Contact material		AgSnO₂
Rated value	Rated load(Resistance load)		6A 277VAC/30VDC
	Max.switching voltage		400VAC
	Max.switching current		6A
	Max.switching capacity		1662VA/180W
	Min.allowing load		5VDC 10mA(Contacts Gold Plating)
Electrical performance	Insulation resistance(initial)		1000MΩ(500VDC)
	Dielectric strength (initial)	Between open contacts	1500VAC
		Between coil&contacts	4000VAC,1min
		Between contact groups	2500VAC,1min(7-8/9-10) 4000VAC,1min(Other)
	Operate time		≤20ms
	Release time		≤20ms
Mechanical performance	Shock resistance	Functional	98m/s²(10g)
		Destructive	980m/s²(100g)
	Vibration resistance		N0/NC:10Hz~55Hz 1.5mm DA N0:55Hz~200Hz ,98m/s2 NC:55Hz~200Hz ,49m/s2
Creepage distance	Between coil&contacts		8mm
	Between contact groups		5.5mm
Air distance	Between coil&contacts		8mm
	Between contact groups		5.5mm
Endurance	Mechanical		1×107ops
	Electrical(Room temperature)		6A 277VAC/30VDC 1×105ops(ON/OFF=1s/9s)
Operate condition	Ambient temperature		-40℃~85℃
	Humidity		5% to 85%
Termination			PCB
Unit weight			Approx.22g
Construction			Plastic sealed､Flux proofed
