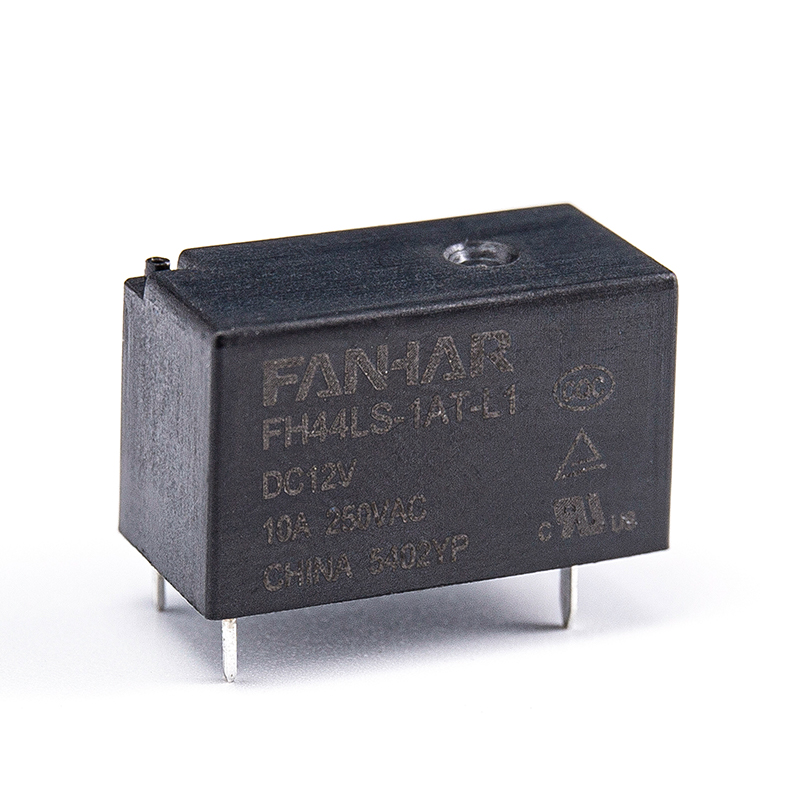

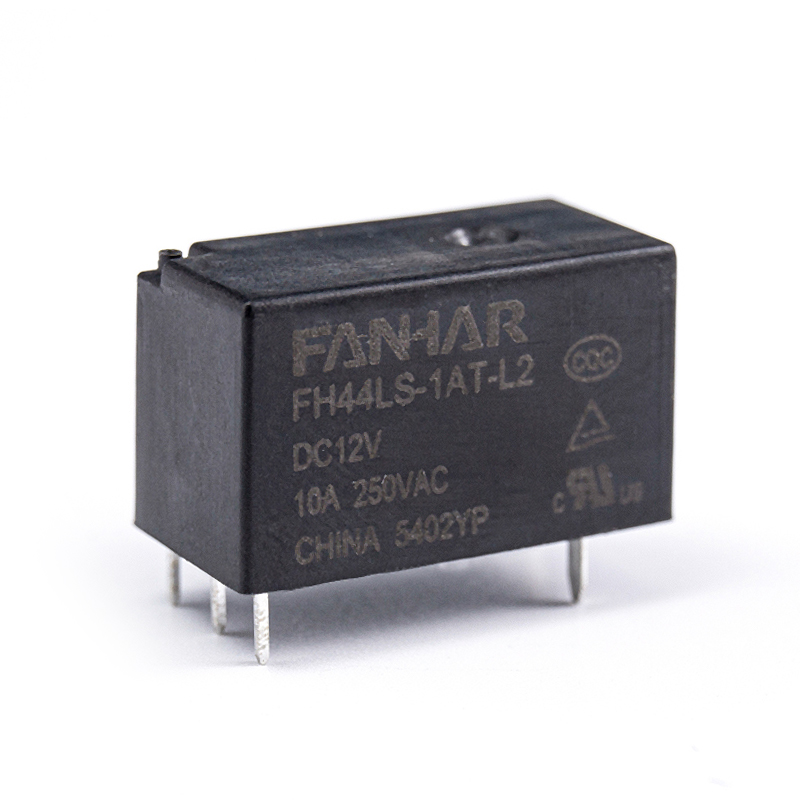

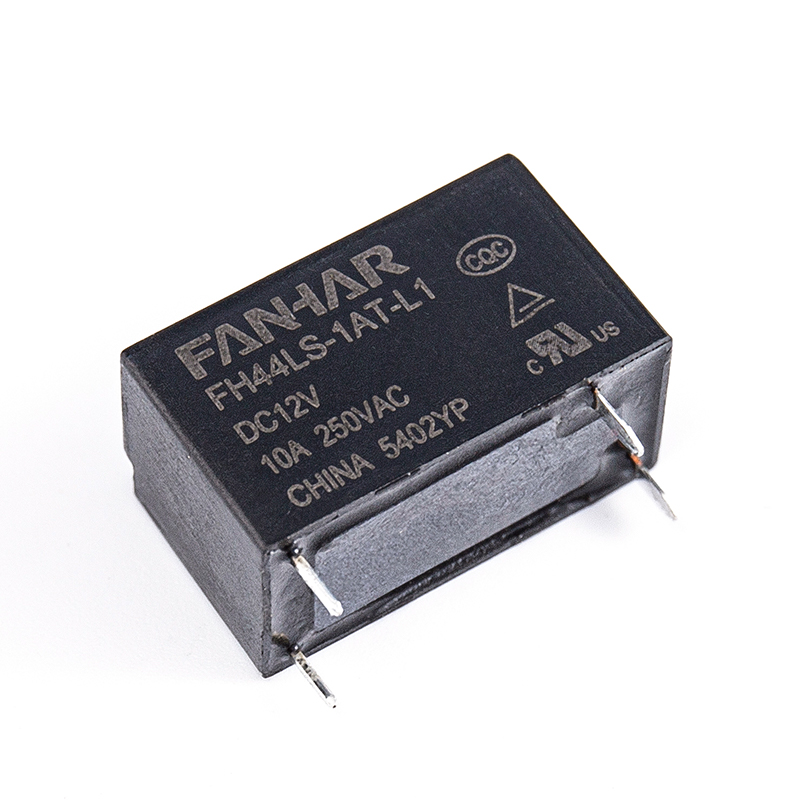

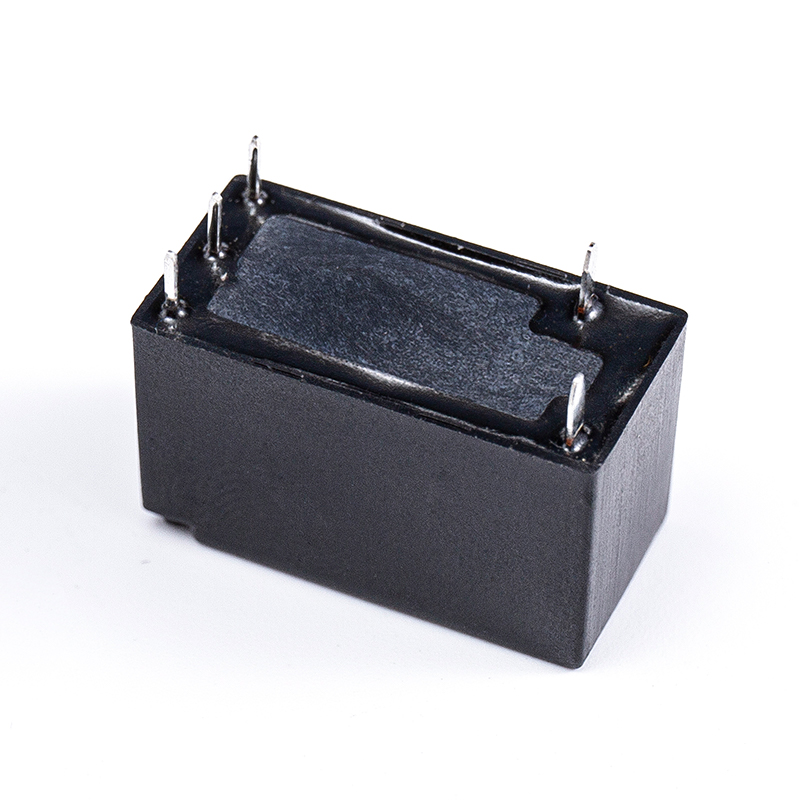

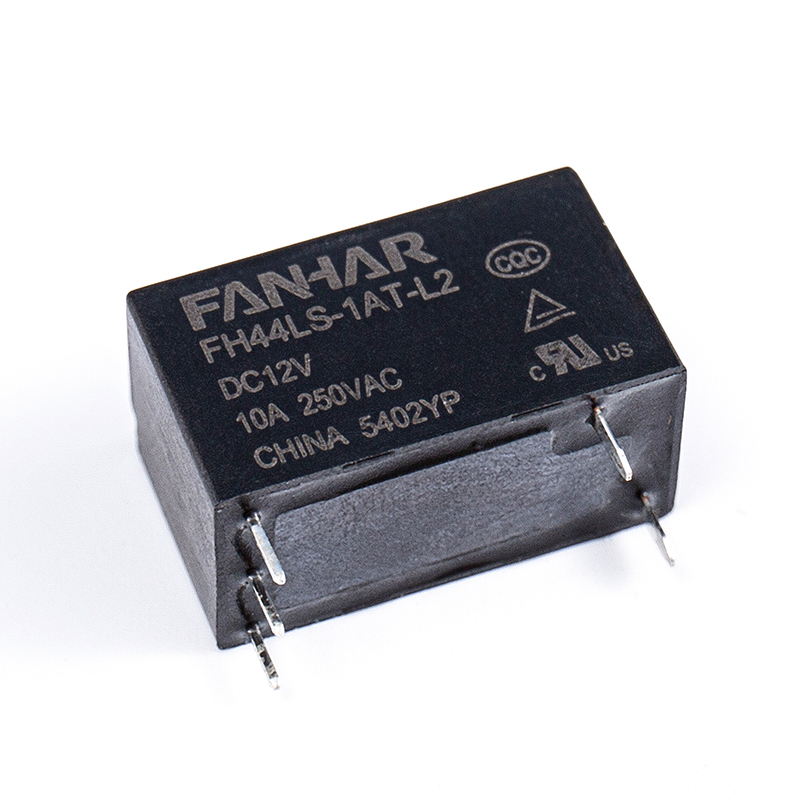

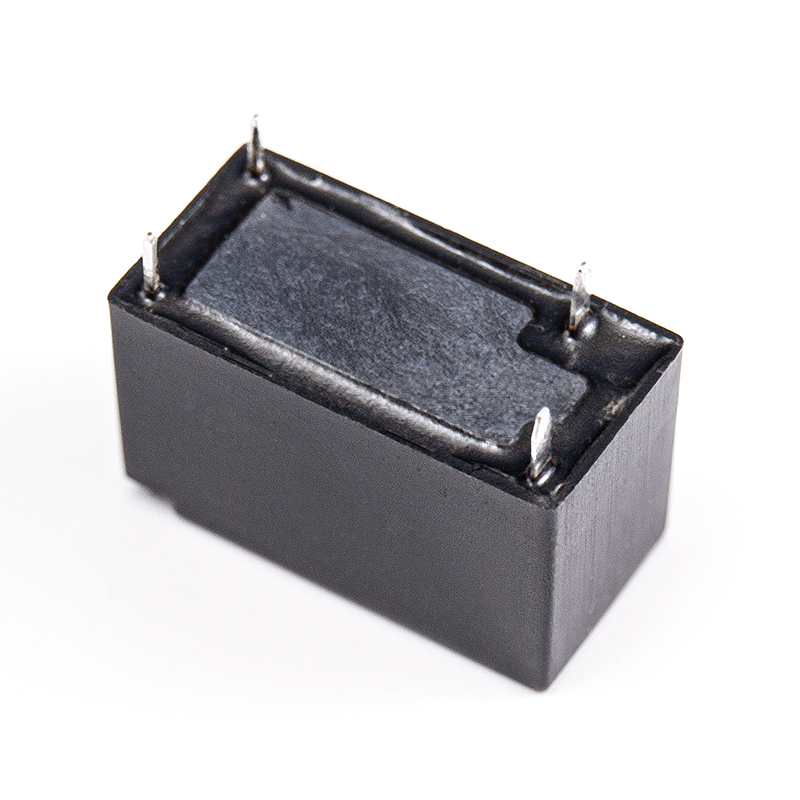

FH44LS 10A Latching Relay UL TUV CQC Compliant

FH44LS 10A Latching Relay UL TUV CQC Compliant

Features:
12A switching capability
Single coils and double coils are all available
Small size ,the height of the product is only 12mm
UL insulation system :Class F
Environmental friendly product(RoHS compliant)
Outline Dimensions:(20.0×10.0×11.8)mm
Main application :Home appliance、Smart home

  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item



Contact Data

Contact arrangement

1A

Contact resistance

≤50mΩ(6VDC 1A)

Contact material

AgSnO2

Rated value

Rated load(Resistance load)

10A  250VAC

Max.switching voltage

277VAC

Max.switching current

12A

Max.switching capacity

3000VA

Min.allowing load

5VDC 100mA

Electrical performance

Insulation resistance(initial)

1000MΩ(500VDC)

Dielectric strength
(initial)

Between open contacts

1000VAC,1min

Between coil&contacts

3000VAC,1min

Set time

≤10ms

Reset time

≤10ms

Mechanical performance

Shock
resistance

Functional

98m/s2(10g)

Destructive

980m/s2(100g)

Vibration resistance

10Hz~55Hz 1.5mm DA

Endurance

Mechanical

1×106ops

Electrical(Room temperature)

 8A   250VAC             1×105ops(ON/OFF=1s/9s,Resistive Load)

10A   250VAC             5×104ops(ON/OFF=1s/9s,Resistive Load)

12A   250VAC             3×104ops(ON/OFF=1s/9s,Resistive Load)

Operate condition

Ambient temperature

-40℃~85℃

Humidity

5% to 85%

Termination

PCB

Unit weight

Approx.4.5g

Construction

Plastic sealed、Flux proofed
