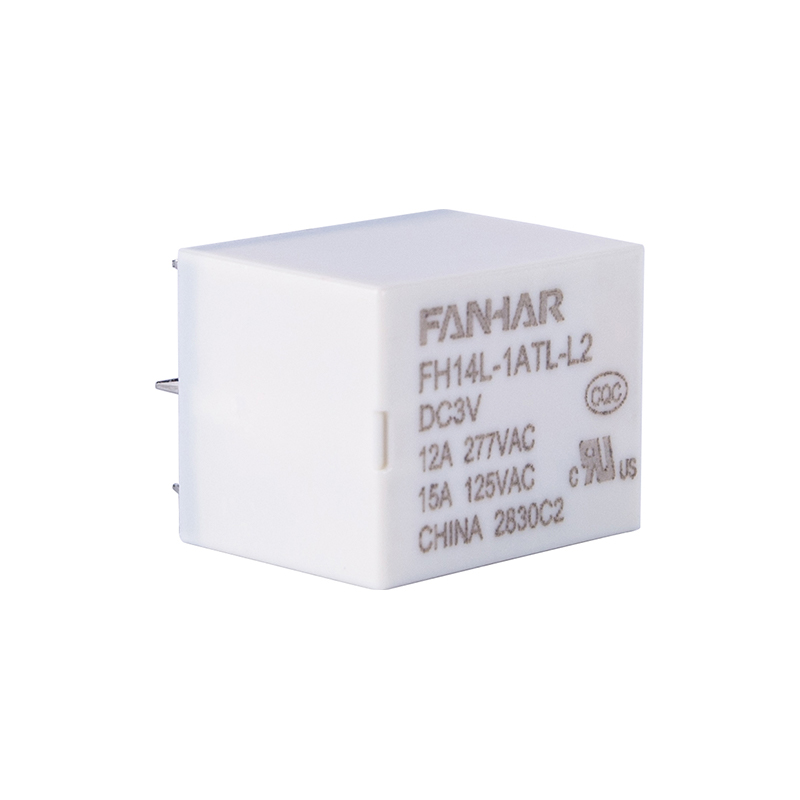

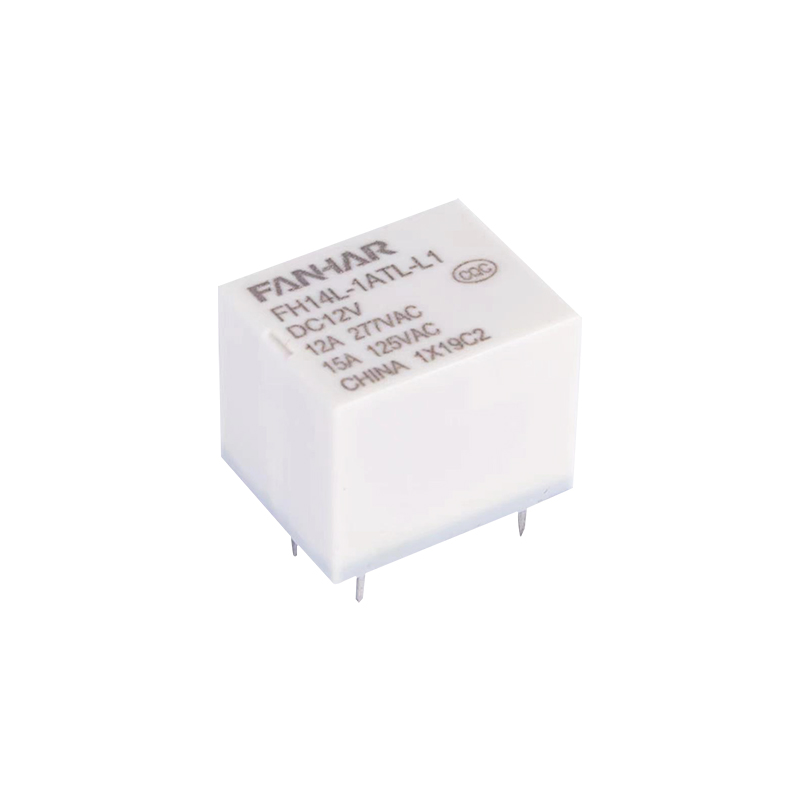

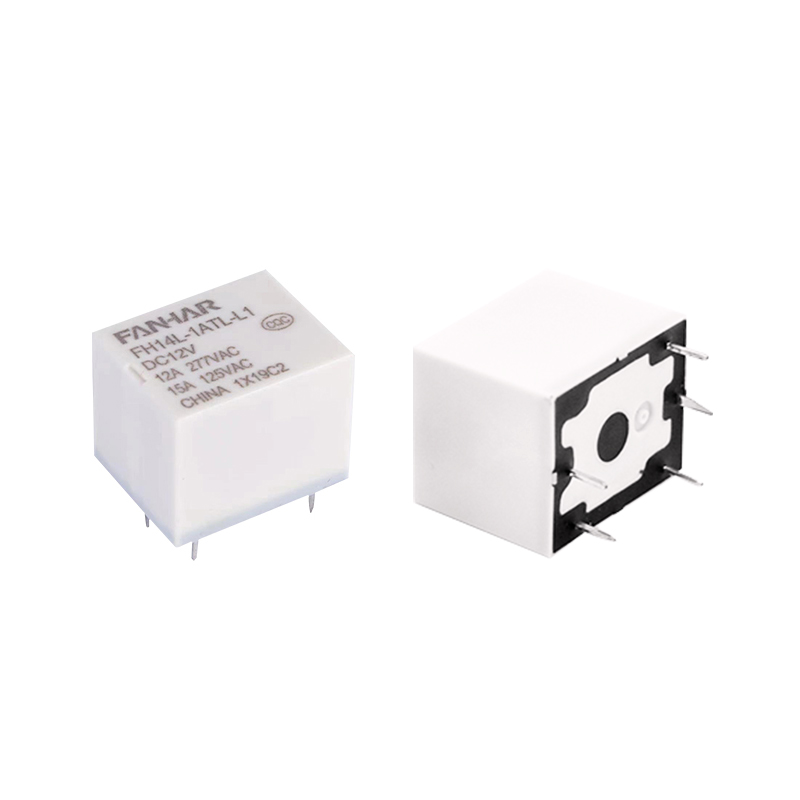

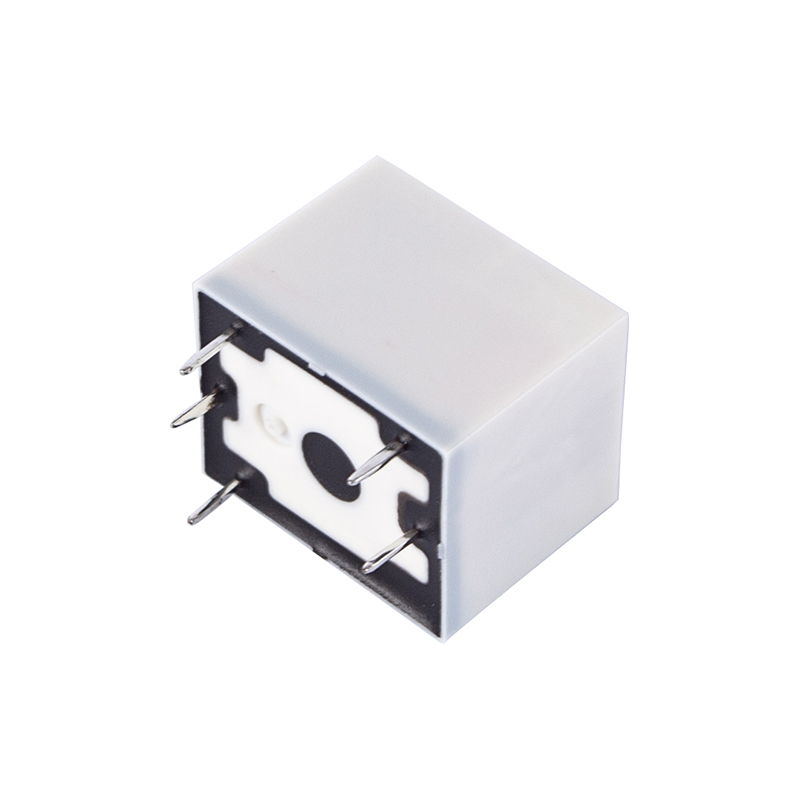

FH14L 12A 15A Latching Relay UL CQC Compliant

FH14L 12A 15A Latching Relay UL CQC Compliant

Features：
15A switching capability
Standard T73 mounting feet
High sensitivity type available with 250 mW coil power consumption
Contact arrangement:1A､1C
Environmental friendly product(RoHS compliant)
Outline Dimensions:(19.2×15.5×15.0)mm

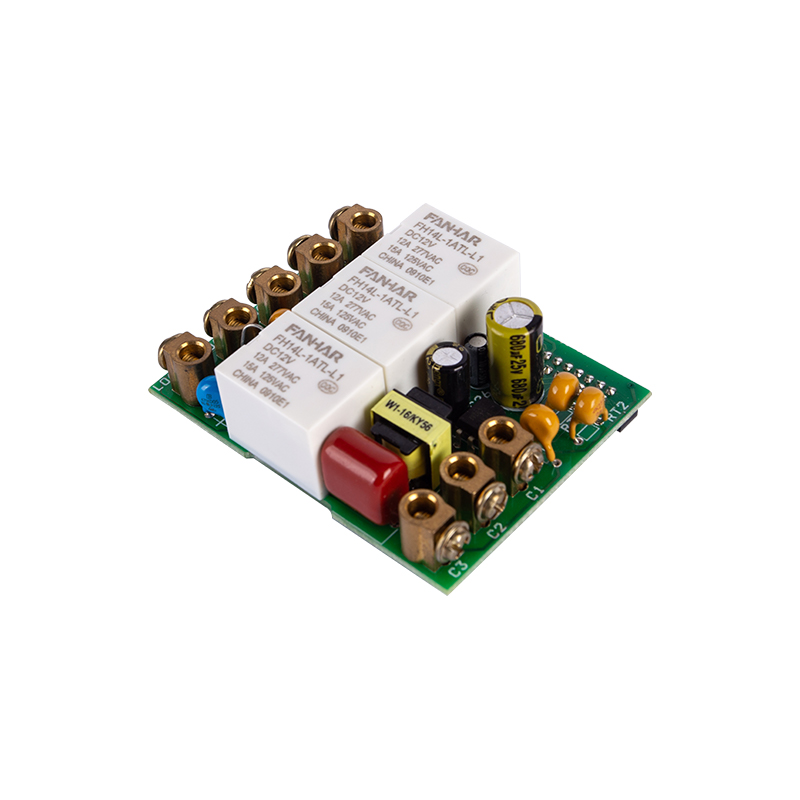

Main application: Smart home､Single fire switch

Contact Us Download
  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item



Contact Data

Contact arrangement

1A、1B、1C

Contact resistance(initial)

≤100mΩ(6VDC 1A)

Contact material

AgSnO2

Rated value

Rated load(Resistance load)

12A   277VAC

15A   125VAC

Max.switching voltage

277VAC

Max.switching current

16A

Max.switching capacity

3324VA

Min.allowing load

5VDC 100mA

Electrical performance

Insulation resistance(initial)

1000MΩ(500VDC)

Dielectric strength (initial)

Between open contacts

750VAC, 1min

Between coil&contacts

1500VAC,1min

Set time

≤10ms

Reset time

≤10ms

Mechanical performance

Shock resistance

Functional

98m/s2(10g)

Destructive

980m/s2(100g)

Vibration resistance

10Hz~55Hz 1.5mm DA

Endurance

Mechanical

1× 106ops

Electrical(Room temperature)

15A
12A

125VAC
277VAC

1× 104ops(ON/OFF= 1s/9s)
5× 104ops(ON/OFF= 1s/9s)

Operate condition

Ambient temperature

-40℃~85℃

Humidity

5% to 90%

Termination

PCB

Unit weight

Approx.9g

Construction

Plastic sealed,Flux proofed
