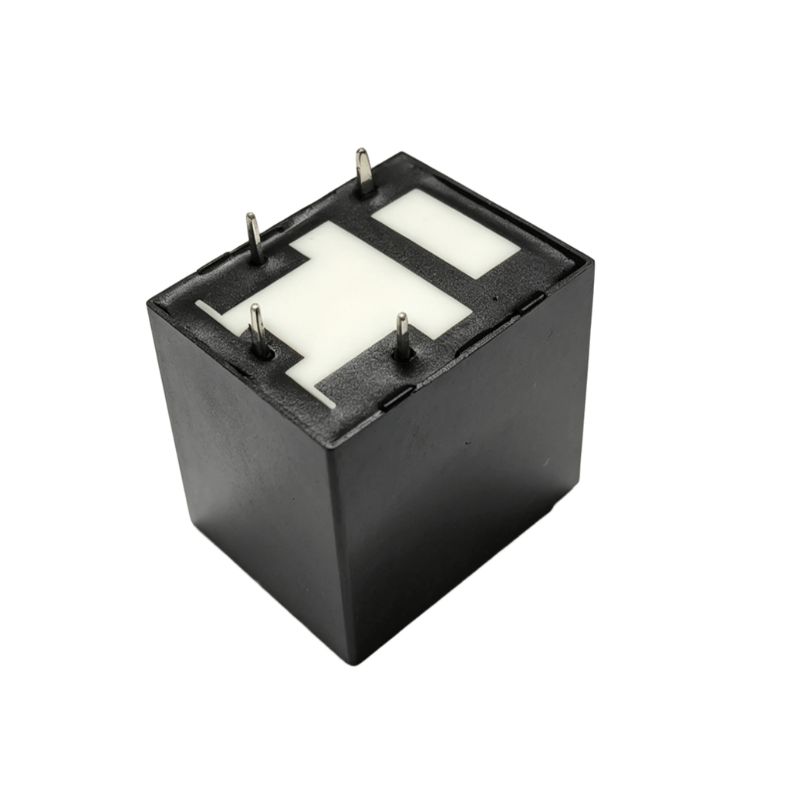

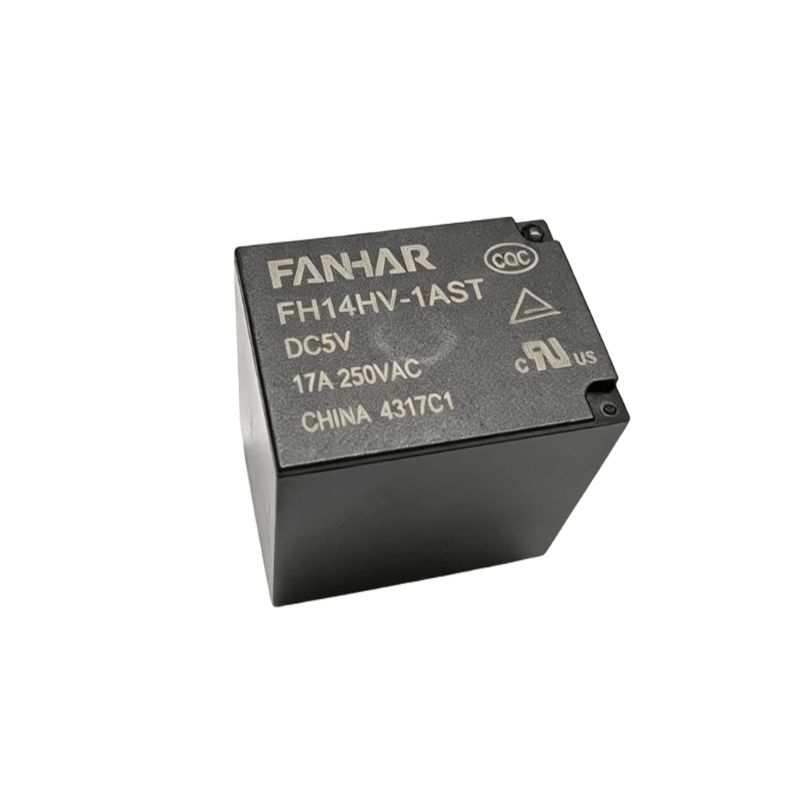

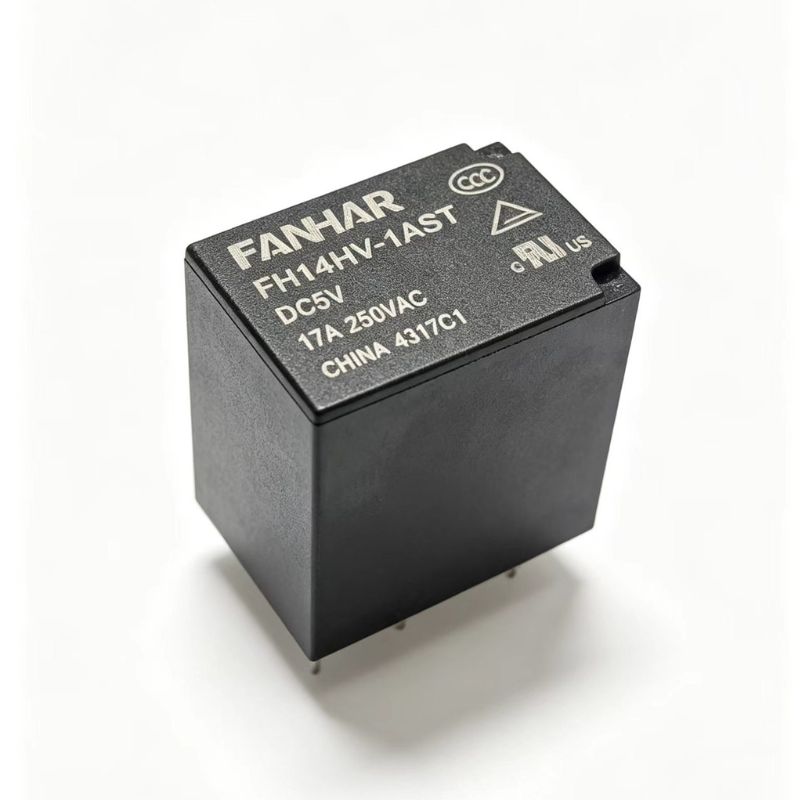

FH14HV 17A Industrial Relay UL TUV CQC Compliant

FH14HV 17A Industrial Relay UL TUV CQC Compliant

Features:
17A switching capability
Products with an operating temperature of 105℃ are available
UL insulation system:Class F
Ultra-small type, standard PCB terminals.
Outline Dimensions:(21.0*16.0*21.3)mm
Main application: Household appliances

Contact Us Download
  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item

FH14T

FH14HV



Contact Data

Contact arrangement

1A、1B、1C

Contact resistance

≤100mΩ(6VDC 1A)

Contact material

AgSnO2

Rated value

Rated load(Resistance load)

17A   250VAC

Max.switching voltage

277VAC

Max.switching current

20A

Max.switching capacity

4250VA

Min.allowing load

5VDC 100mA

Electrical

performance

Insulation resistance(initial)

100MΩ(500VDC)

Dielectric strength (initial)

Between open contacts

1000VAC, 1min

Between coil&contacts

2500VAC, 1min

3500VAC, 1min

Operate time

≤15ms

Release time

≤10ms

Mechanical

performance

Shock resistance

Functional

98m/s2(10g)

Destructive

980m/s2(100g)

Vibration resistance

10Hz~55Hz 1.5mm DA

Endurance

Mechanical

1× 106ops

Electrical(Room temperature)

17A   250VAC          5× 104ops (ON/OFF= 1s/9s)

Operate

condition

Ambient temperature

-40℃~ 105℃

Humidity

5% to 90%

Termination

PCB

Unit weight

Approx.15g

Construction

Plastic sealed、Flux proofed
