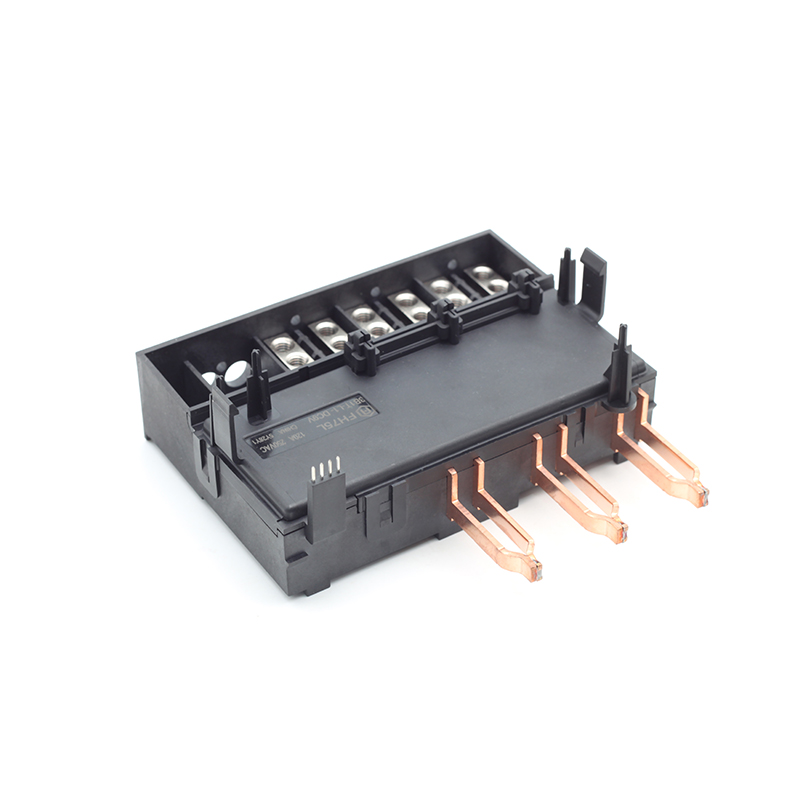

FH75L 120A Latching Relay

FH75L 120A Latching Relay

Features:

  • 120A switching capability
  • External accessories such asmanganese copper shunts and

transformers can be ordered according to customer requirements

  • The withstand voltage of themedium betweenthe coil and the contact reaches 4KV
  • Compliantto UC3 requirements of EN62052-31:2016 and

1EC62052-31:2015Standard, as well as AU NMIM 6-1 Standard

  • Environment-friendly product(RoHScompliant)
  • OutlineDimensions:(130.0×129.2×56.0)mm
  • Mainapplication: smartmeter
  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item



Contact Data

Contact arrangement

3A、3B

Contact resistance(initial)

≤1.0mΩ(6VDC 1A)

Contact material

AgSnO2

Rated value

Rated load(Resistance load)

120A   250VAC

Max.switching voltage

440VAC

Max.switching current

120A

Max.switching capacity

52800VA

Electrical

performance

Insulation resistance(initial)

1000MΩ(500VDC)

Dielectric

strength (Initial)

Between open contacts

2000VAC(50/60Hz 60s)

Between coil&contacts

4000VAC(50/60Hz 60s)

Groups and between-groups

4000VAC(50/60Hz 60s)

Closing time

≤30ms

Opening time

≤30ms

Mechanical

performance

Shock

resistance

Functional

98m/s2(10g)

Destructive

980m/s2(100g)

Vibration resistance

10Hz~55Hz 1.5mm double-amplitude

Endurance

Mechanical

1×106ops

Electrical (1)

ON/OFF=10S/20S

120A   288VAC

5000ops(COSφ=1)

Total 10000ops

5000ops(COSφ=0.5)

Operate

condition

Ambient temperature

-40℃~85℃

Humidity

5%~85%RH

Termination

Plug-in needle type+Screw type(connection strap)

Unit weight

Approx.430g (Without attachment)

Construction

Flux proofed
