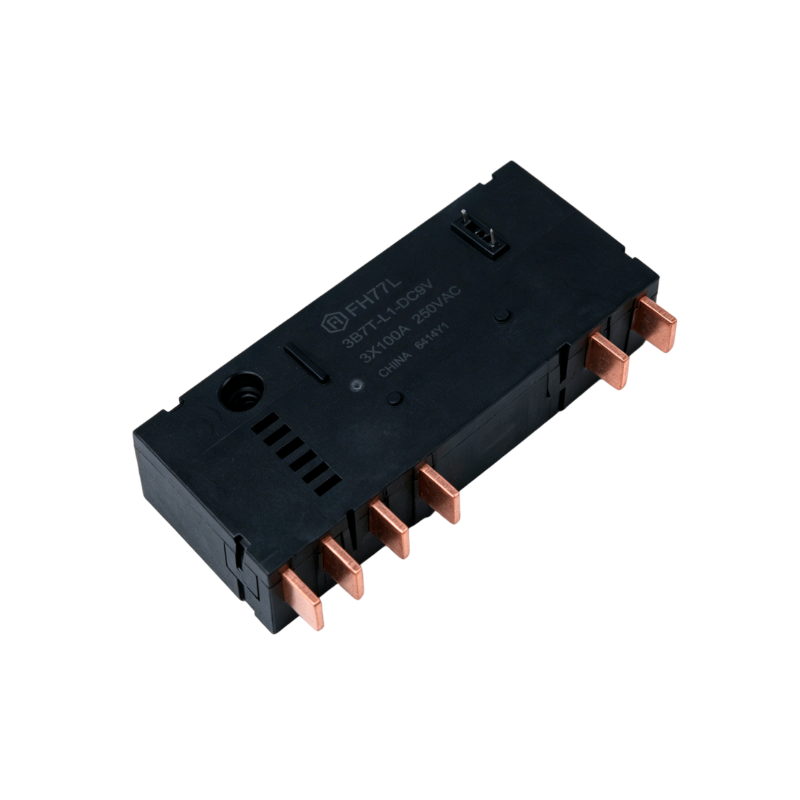

FH77L 100A Latching Relay

FH77L 100A Latching Relay

Features:

100A switching capability

Single coiland doublecoils are available

External accessories such asmanganese copper shunts and transformers can be ordered according to customer requirements

Breakdown voltage (between contact and coil):4KV

Meetstandardof IEC62052-31 :2005 UC3

Environment-friendly product(RoHS compliant)

Outline Dimensions:(103*45*24)mm

Can be integrated design, convenient automatic installation, and PR production
Mainapplication: smart meter

  • Parameters
  • Application
  • Describe
Parameters
Specifications Item
Contact Data Contact arrangement 3A 、3B
Contact resistance(initial) ≤1.0mΩ(6VDC 1A)
Contact material AgSnO2
Rated value Rated load(Resistance load) 100A   250VAC
Max. switching voltage 250VAC
Max .switching current 120A
Ma x.switching capacity 25000VA
Electrical
performance
Insulation resistance(initial) 1000MΩ(500VDC)
Dielectric
strength (Initial)
Between open contacts 2000VAC    1min
Between coil&contacts 4000VAC    1min
Closing time ≤30ms
Opening time ≤30ms
Mechanical
performance
Shock
resistance
Functional 98m/s2(10g)
Destructive 980m/s2(100g)
Vibration resistance 10Hz~55Hz 1.5mm DA
Endurance Mechanical 1×105ops
Electrical ON/OFF=1S/9S 100A   250VAC                                                   1×104ops(COSφ=1)
Electrical UC3(1) ON/OFF=10S/20S 100A   250VAC 5000ops(COSφ=1) Total 10000ops
5000ops Next time(COSφ=0.5)
Operate
condition
Ambient temperature -40℃~85℃
Humidity 5%~85%RH
Termination Plug-in needle type+Screw type(XB)
Unit weight Approx.265g (Without attachment)
Construction Flux proofed
