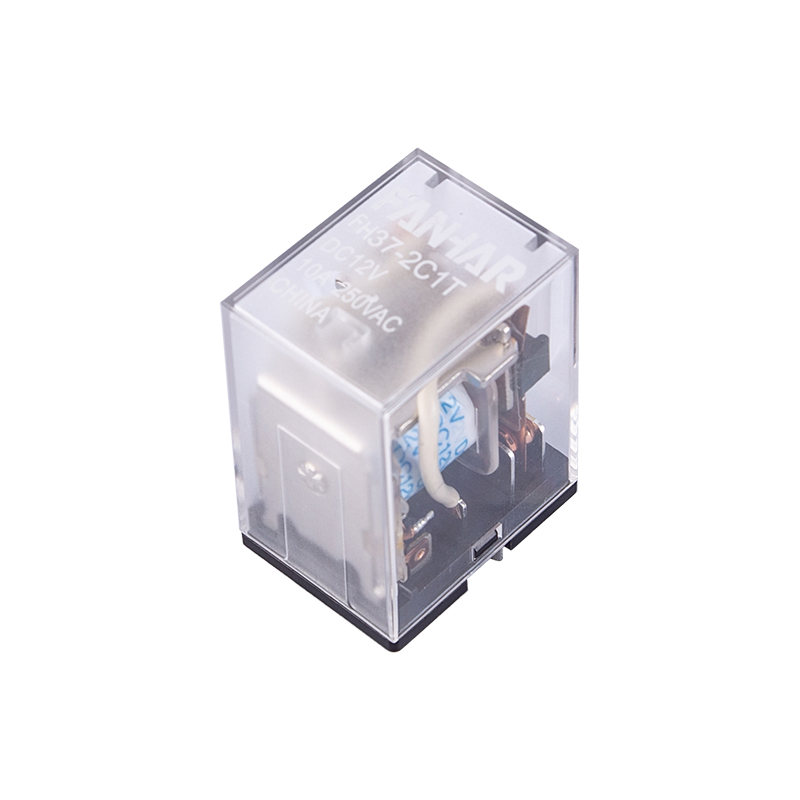

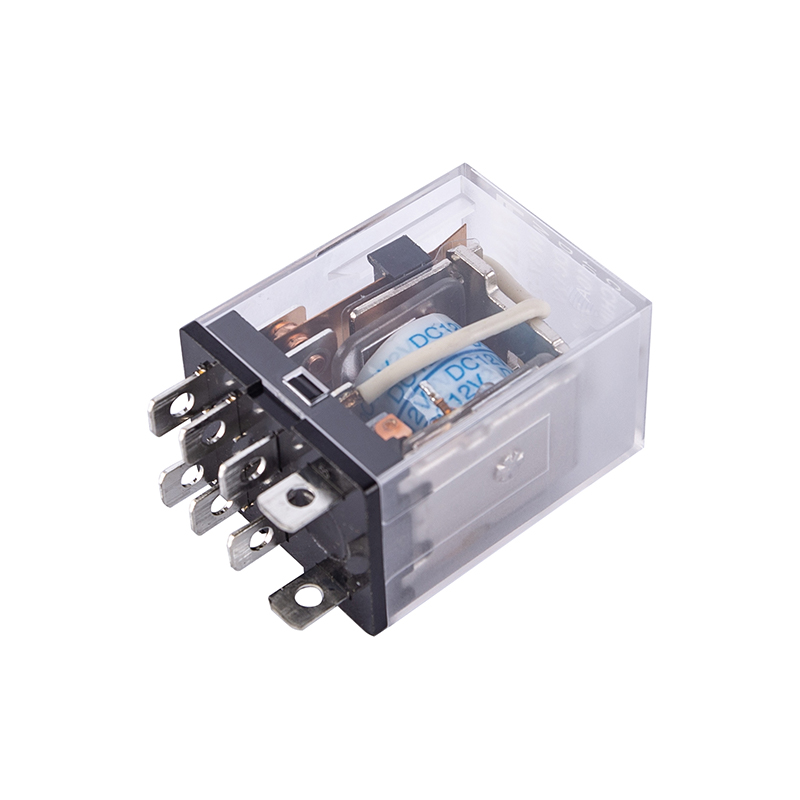

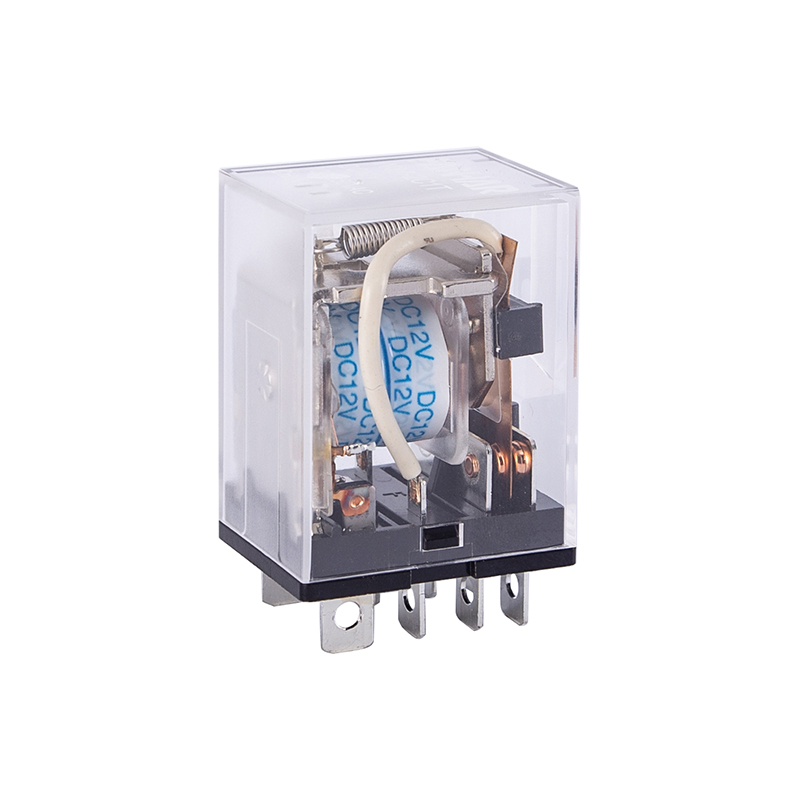

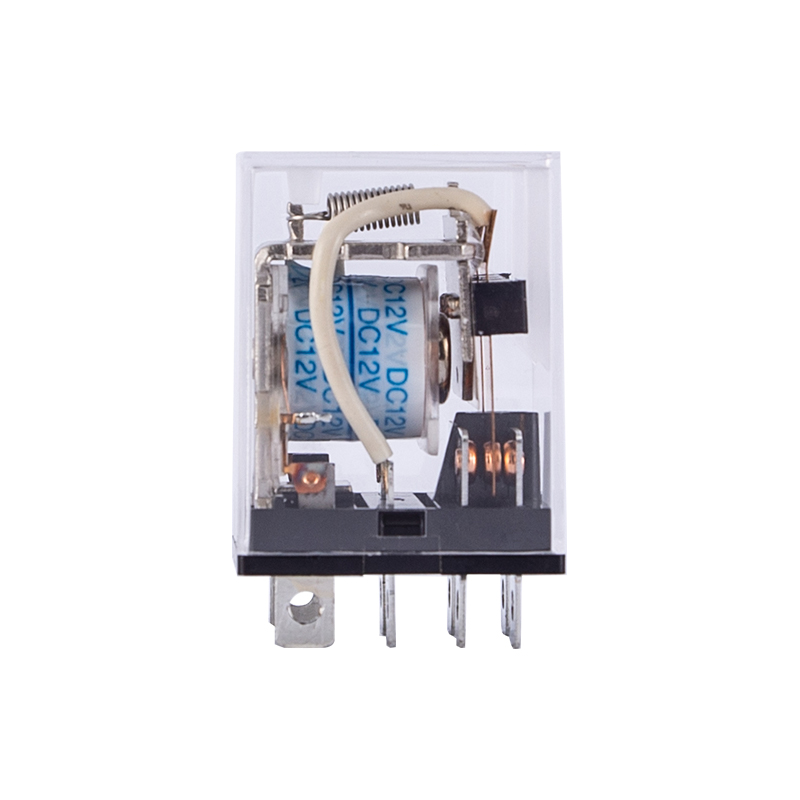

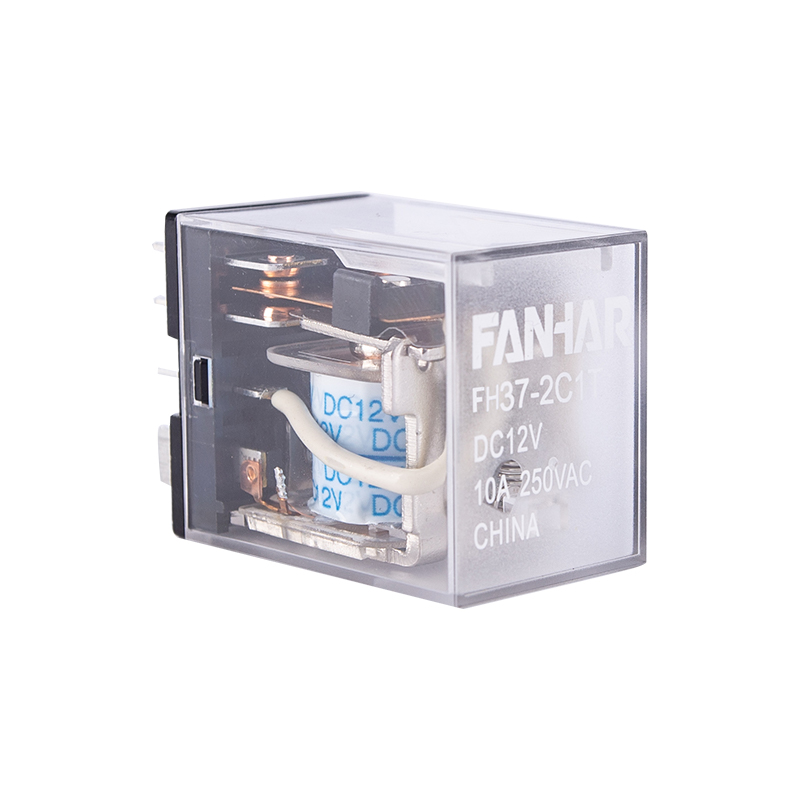

FH37 15A High-voltage DC Relay

FH37 15A High-voltage DC Relay

Features:
15Aswitching capability
Contact arrangement:1A、2A、3A、1C、2C、3C
Flux proofed
Transparent dust cover,Multiple installation mode
Optional different kinds of relay sockets,easy to installation and use
Outline Dimensions:(27.3×21.0×35.0)mm
Main application:Industrial Control

  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item





Contact Data



Contact arrangement

1A、1B、1C

2A、2B、2C

Contact resistance(initial)

100mΩ(6VDC 1A)

Contact material

AgSnO2





Rated value



Rated load(Resistance load)

15A 250VAC/30VDC

12A 250VAC/30VDC

Max.switching voltage

250VAC/30VDC

250VAC/30VDC

Max.switching current

15A

12A

Max.switching capacity

3750VA/450W

3000VA/360W

Min.allowing load

5VDC 100mA

Electrical

performance



Insulation resistance(initial)

1000MΩ(500VDC)

Dielectric

strength

(initial)

Between open contacts

1000VAC,1min

1000VAC,1min

Between

coil&contacts

1500VAC,1min

1500VAC,1min

Impact resitance voltage

1500VAC,1min

1500VAC,1min

Operate time

≤25ms

Release time

≤25ms

Mechanical

performance

Shock

resistance

Functional

98m/s2(10g)

Destructive

980m/s2(100g)

Vibration resistance

10Hz~55Hz 1.5mm DA



Endurance

Mechanical

1× 107ops

Electrical(Room temperature)

15A 250VAC/30VDC (Resistance)

1 ×105ops (ON/OFF= 1s/9s)

12A 250VAC/30VDC (Resistance)

 1 ×105ops (ON/OFF= 1s/9s)

Operate

condition

Ambient temperature

-40℃~70℃

Humidity

5% to 85%

Termination

PCB、Insert

Unit weight

Approx.37g

Construction

Flux proofed
