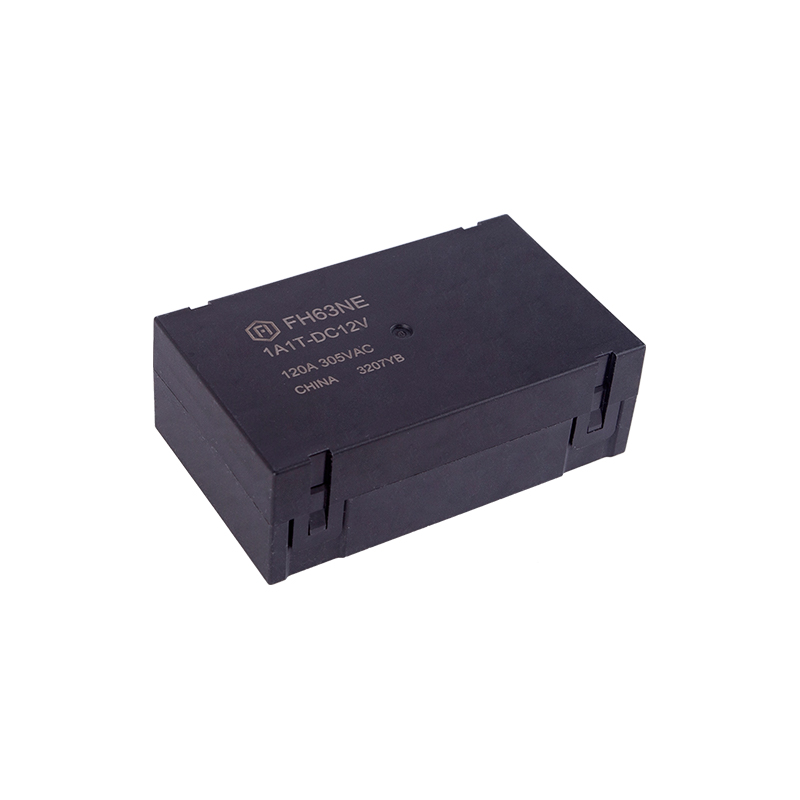

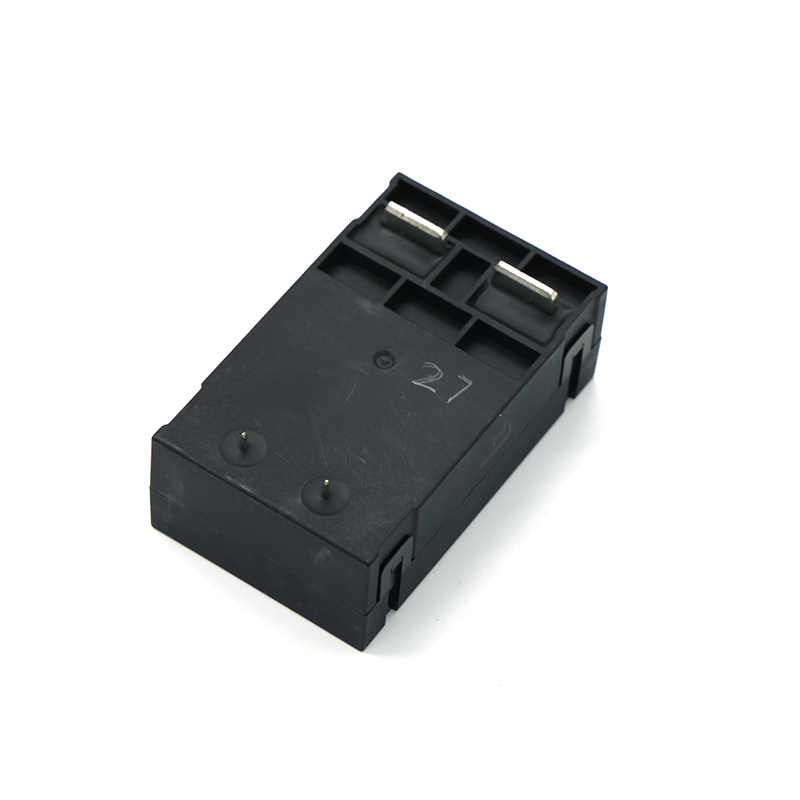

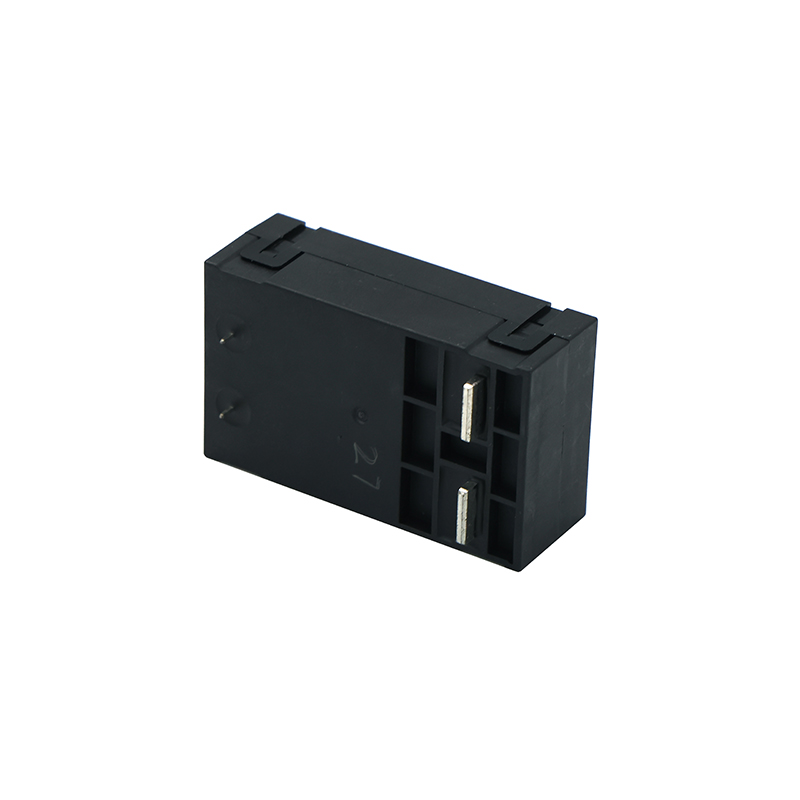

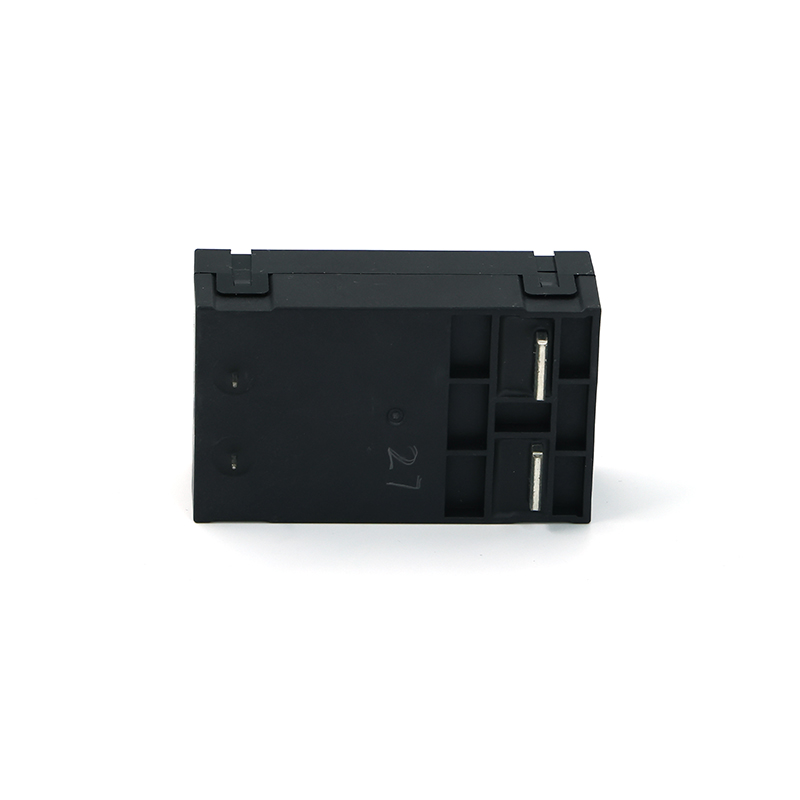

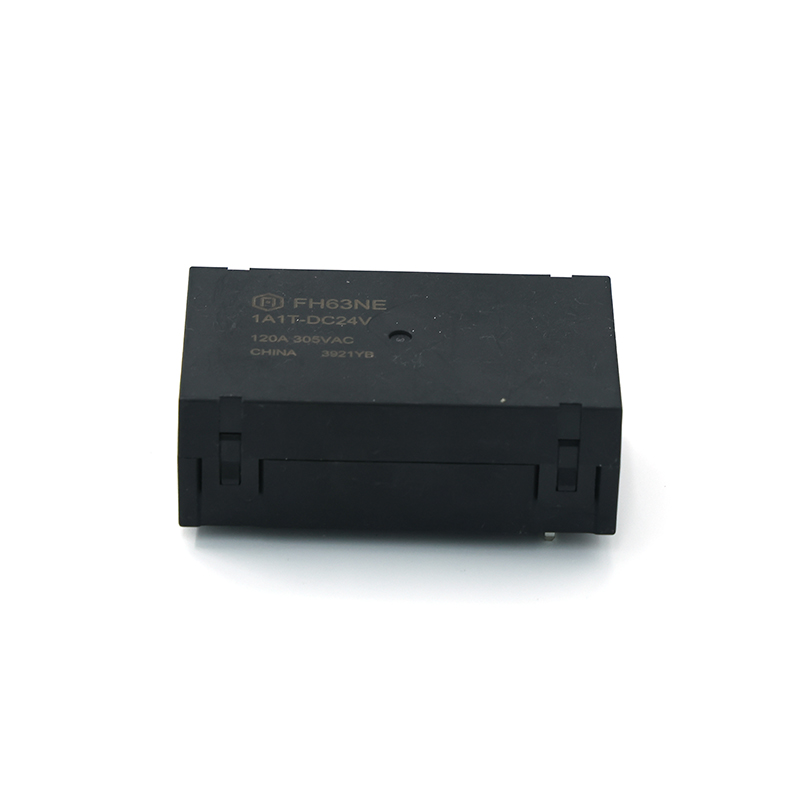

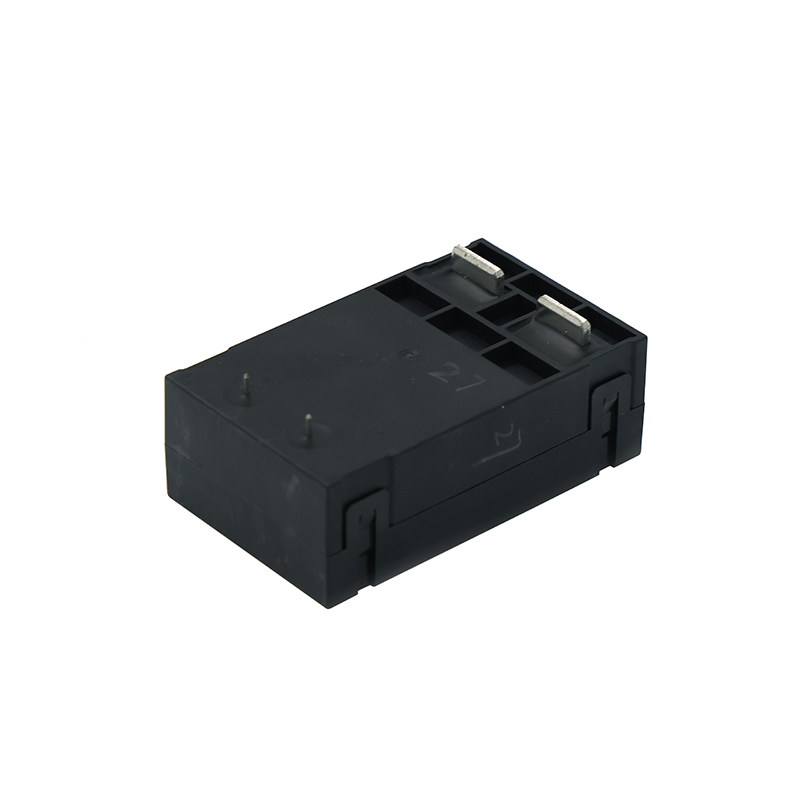

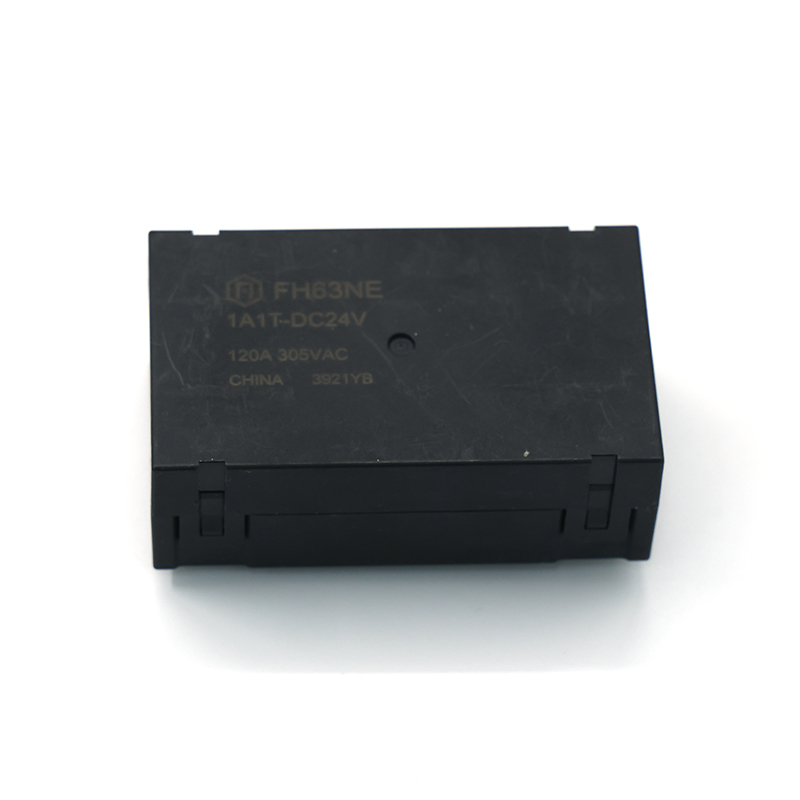

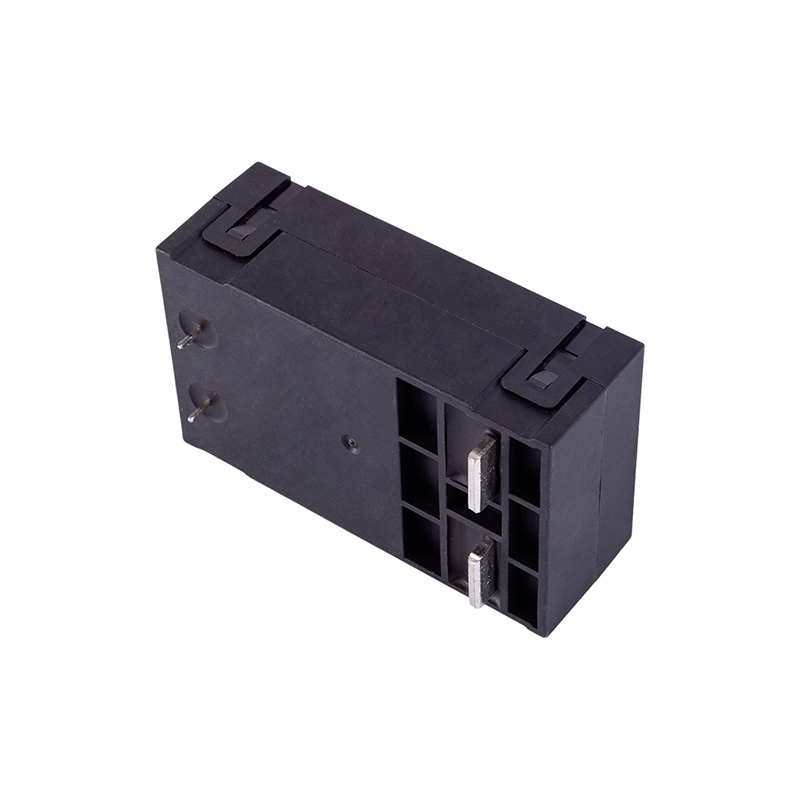

FH63NE 120A New Energy Relay UL TUV CQC Compliant

FH63NE 120A New Energy Relay UL TUV CQC Compliant

Features:
120A contact switching capability
Coil power is 4.8W
Contact gap is 3.0mm
UL insulation system: Class  F
Outline Dimensions:(71x43x24.6)mm
Main application: Power supply、Photovoltaic new energy

  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item



Contact Data

Contact arrangement

1A

Contact resistance(initial)

≤10mΩ(6VDC 20A)

Contact material

AgSnO2

Rated value

Rated load(Resistance load)

120A   415VAC

120A   30VDC

Max.switching voltage

415VAC/30VDC

Max.switching current

120A

Max.switching capacity

49800VA/3600W

Electrical

performance

Insulation resistance(initial)

1000MΩ(500VDC)

Dielectric

strength

(initial)

Between open contacts

2000VAC    1min(50Hz/60Hz)

Between coil&contacts

5000VAC    1min(50Hz/60Hz)

Operate time

≤30ms

Release time

≤15ms

Mechanical

performance

Shock resistance

Functional

98m/s2(10g)

Destructive

980m/s2(100g)

Vibration resistance

10Hz~55Hz 1.5mm DA

Endurance

Mechanical

1×105ops

Electrical

ON/OFF=1S/9S

120A         415VAC                                   Resistive      85℃     1×104ops

Operate

condition

Ambient temperature

-40℃~+85℃

Humidity

5%~85%RH

Surge voltage (Between coil&contacts)

10kV(1.2/50μs)

Surge current

400A/350VDC/4ms

Unit weight

Approx.175g

Construction

Flux proofed
