FH67NE 200A New Energy Relay

• New Energy

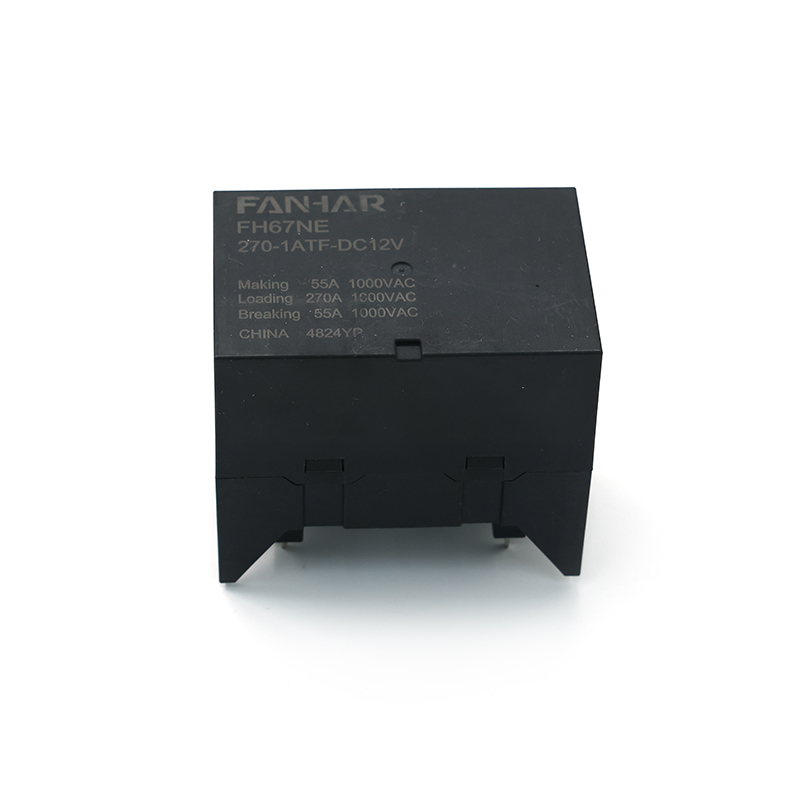

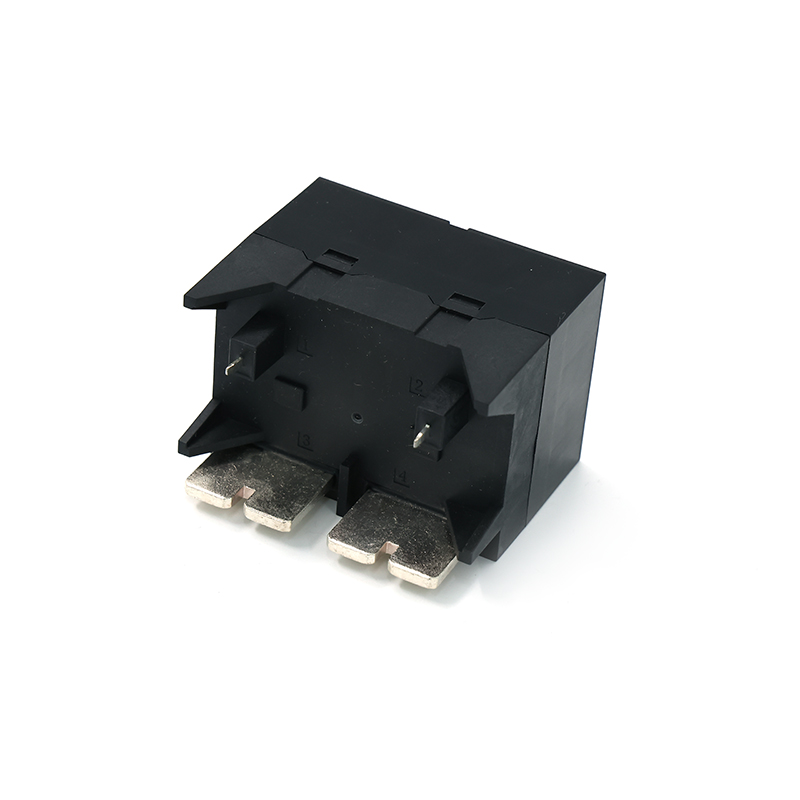

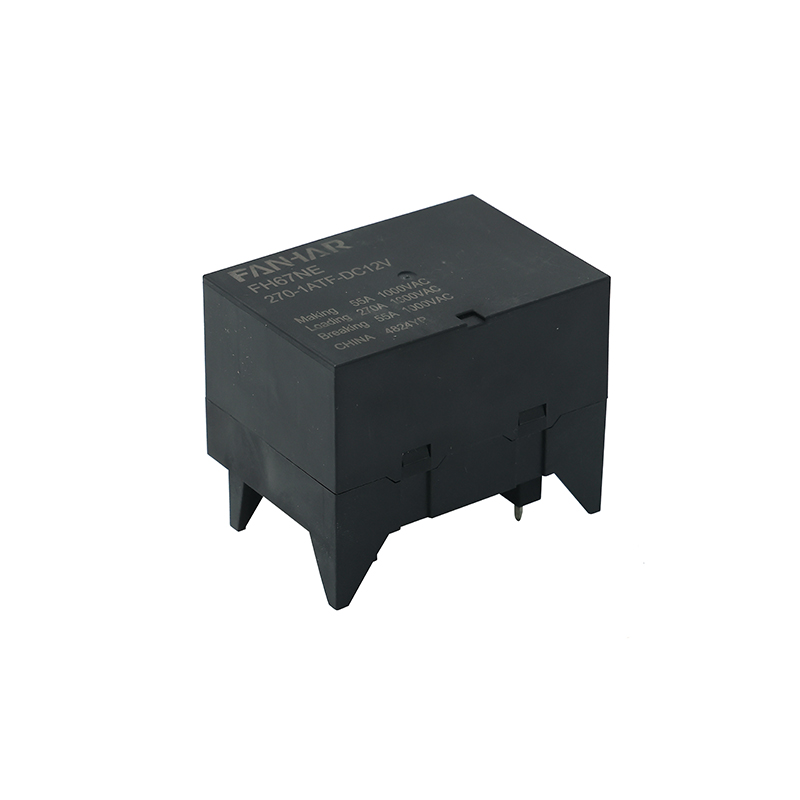

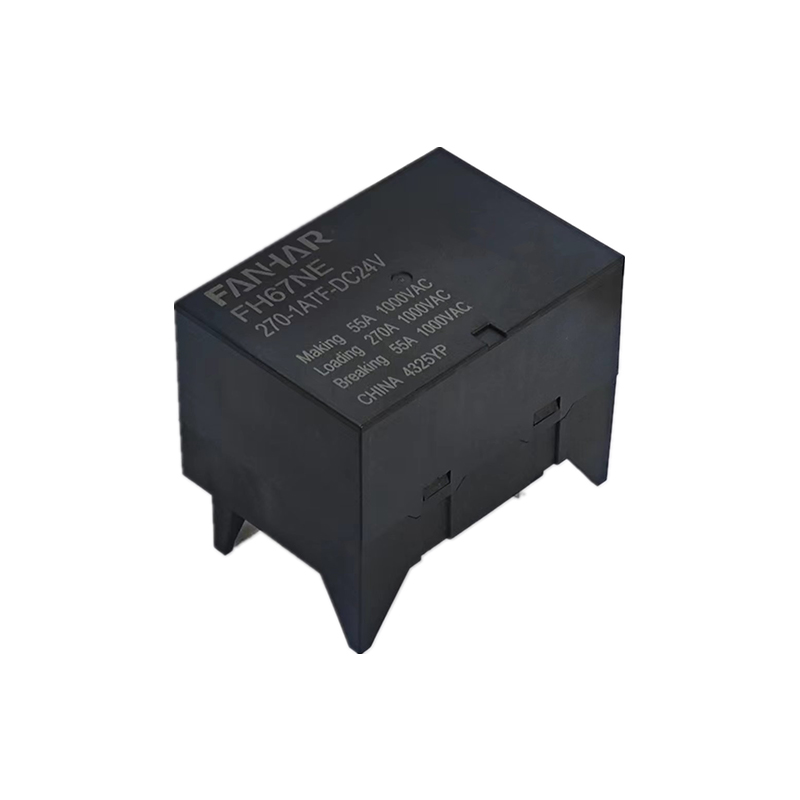

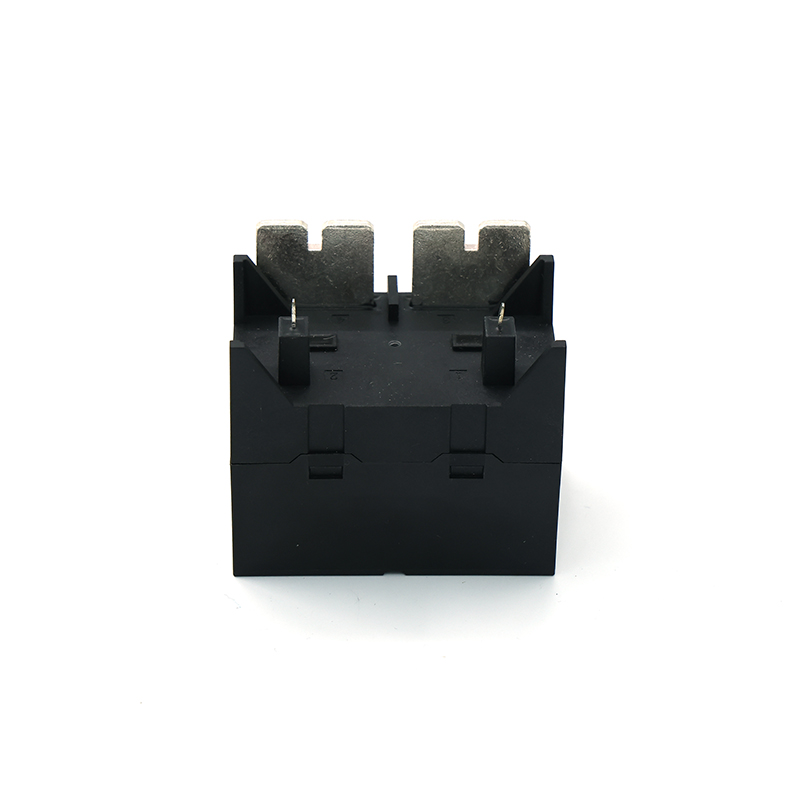

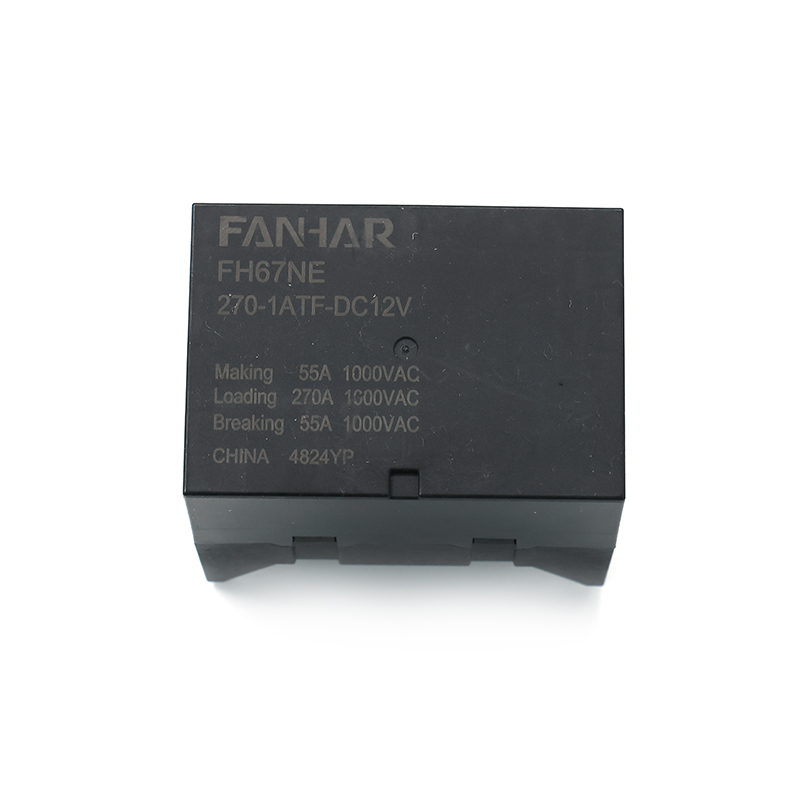

FH67NE New Energy Relay 270A Contact Switching Capability is a high-performance relay designed for the new energy field. Its rated current is up to 270A and is suitable for high current applications such as solar photovoltaic inverters. This relay uses AgSnO₂As as a contact material; it has excellent conductivity and durability, and is equipped with a Class F insulation system to ensure stable operation of the equipment in high-temperature environments. The contact form of the FH67NE relay is a 1A normally open group, supports a switching voltage of up to 1000VAC, and has a maximum switching capacity of up to 275,000VA, which can meet the needs of complex electrical systems. In addition, the mechanical properties of the relay are excellent, with an impact stability of 98m/s², a vibration frequency range of 5 Hz to 105 Hz, and an amplitude of only 1mm, ensuring reliability in harsh environments. In order to further improve the efficiency of the equipment, the FH67NE relay adopts an energy-saving design, with a coil holding voltage as low as 4.5V, effectively reducing energy consumption. Its compact size and lightweight design (standard weight is about 225g, heat sink weight is about 235g) make it easy to install and maintain. The FH67NE relay also supports a variety of installation methods, including printed board type and guide rail type, and users can choose the appropriate installation form according to their needs. Its wide operating temperature range (-40°C to 85°C) and humidity range of 5% to 85% make it suitable for various industrial applications. With its high current capability, excellent mechanical properties, and energy-saving characteristics, the FH67NE relay has become an indispensable key component in the field of new energy and is widely used in solar energy systems, electric vehicle charging stations, rail transportation, and other fields.
