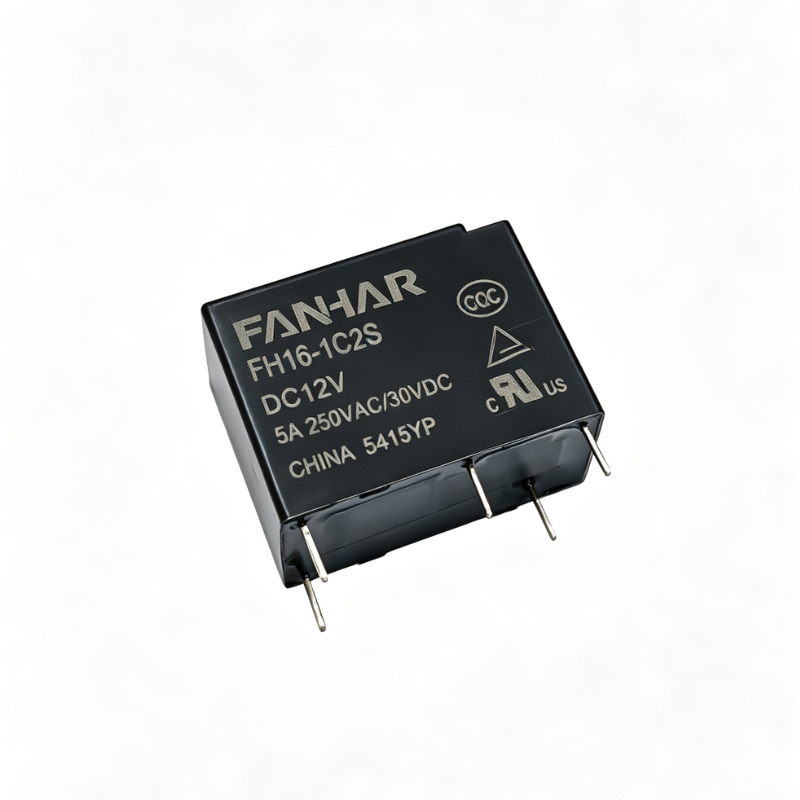

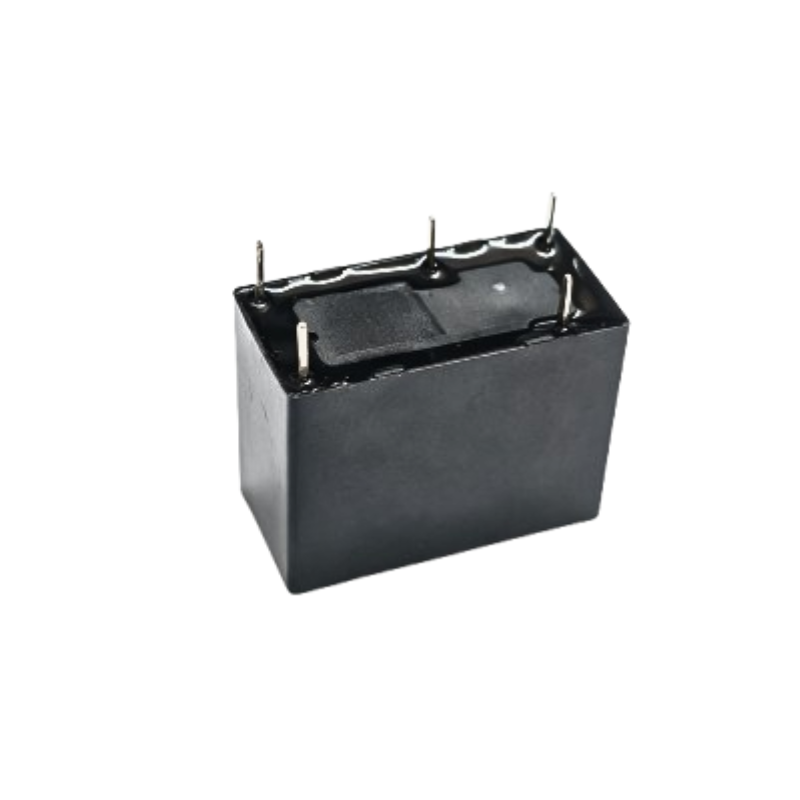

FH16 5A 10A Power Relay  UL TUV CQC Compliant

FH16 5A 10A Power Relay UL TUV CQC Compliant

Features:

10A switching capability

Contact arrangement:1A、1C

Products with operating temperature of 105℃ are available

Provide high sensitive type,coil power is :200mW

UL insulation system:Class F

Environment-friendly product(RoHS compliant)

Outline Dimensions:(20.5×10.5×15.6)mm

Main application:Home appliance、Electric power meter

  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item



Contact Data

Contact arrangement

1A、1B、1C

Contact resistance(initial)

≤100mΩ(6VDC 1A)

Contact material

AgNi、AgSnO2

Rated value

Rated load(Resistance load)

5A   250VAC/30VDC

10A  250VAC/30VDC

Max.switching voltage

277VAC/30VDC

Max.switching current

10A

Max.switching capacity

2500VA/300W

Min.allowing load

5VDC 100mA

Electrical performance

Insulation resistance(initial)

1000MΩ(500VDC)

Dielectric strength
(initial)

Between open contacts

1000VAC,1 min

Between coil&contacts

4000VAC,1 min

Operate time

≤10ms

Release time

≤5ms

Mechanical performance

Shock
resistance

Functional

98m/s2(10g)

Destructive

980m/s2(100g)

Vibration resistance

10Hz~55Hz 1.5mm DA

Endurance

Mechanical

5×106ops

Electrical(Room temperature)

5A   250VAC/30VDC                       1×105ops(ON/OFF=1s/9s)

10A  250VAC/30VDC                       5×104ops(ON/OFF=1s/9s)

Operate condition

Ambient temperature

-40℃~85/105℃

Humidity

5% to 90%

Termination

PCB

Unit weight

Approx 6g

Construction

Plastic sealed、Flux proofed
