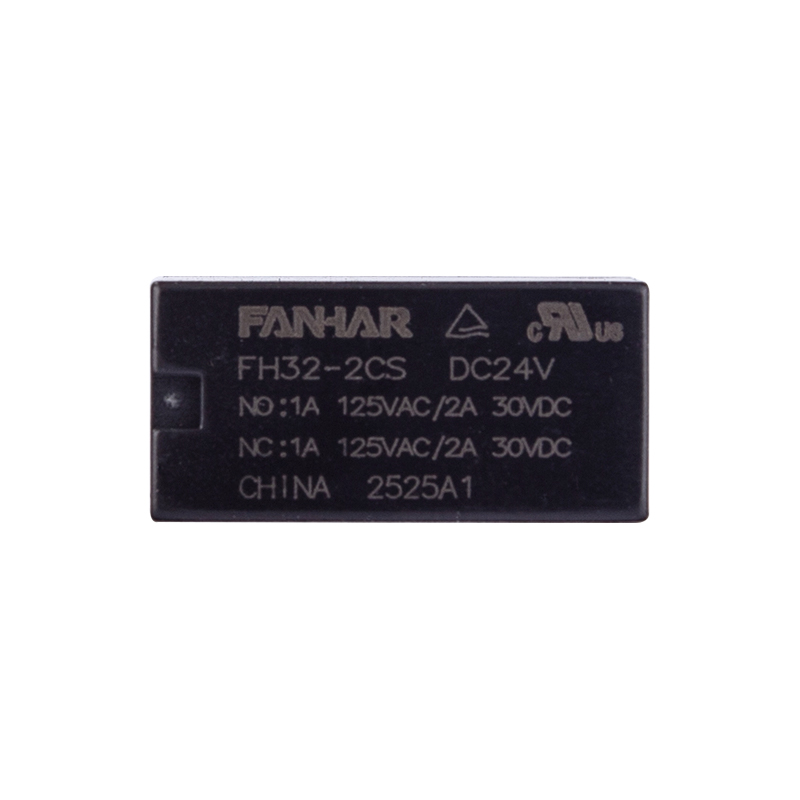

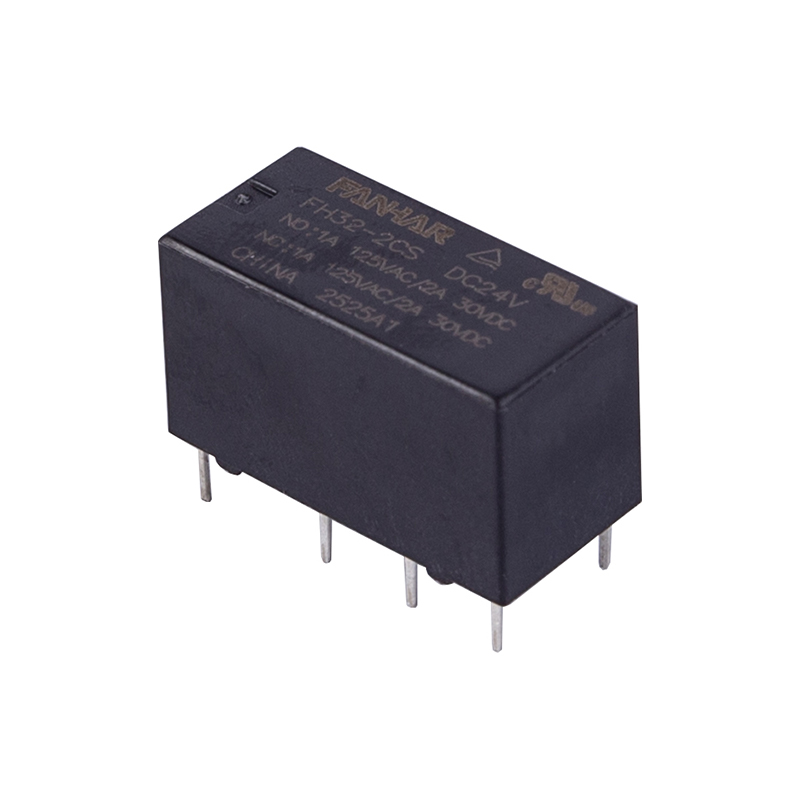

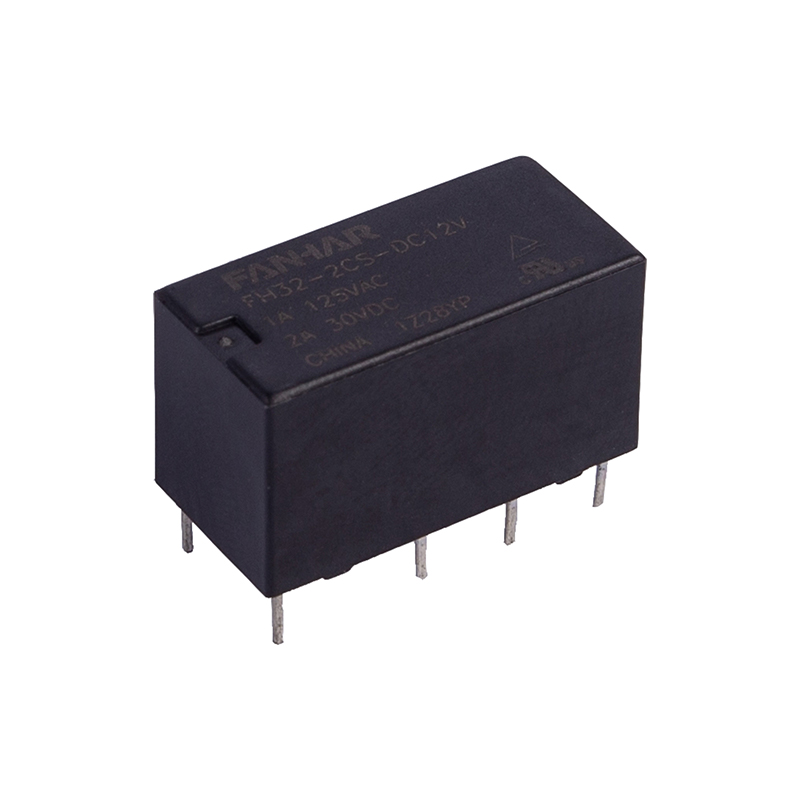

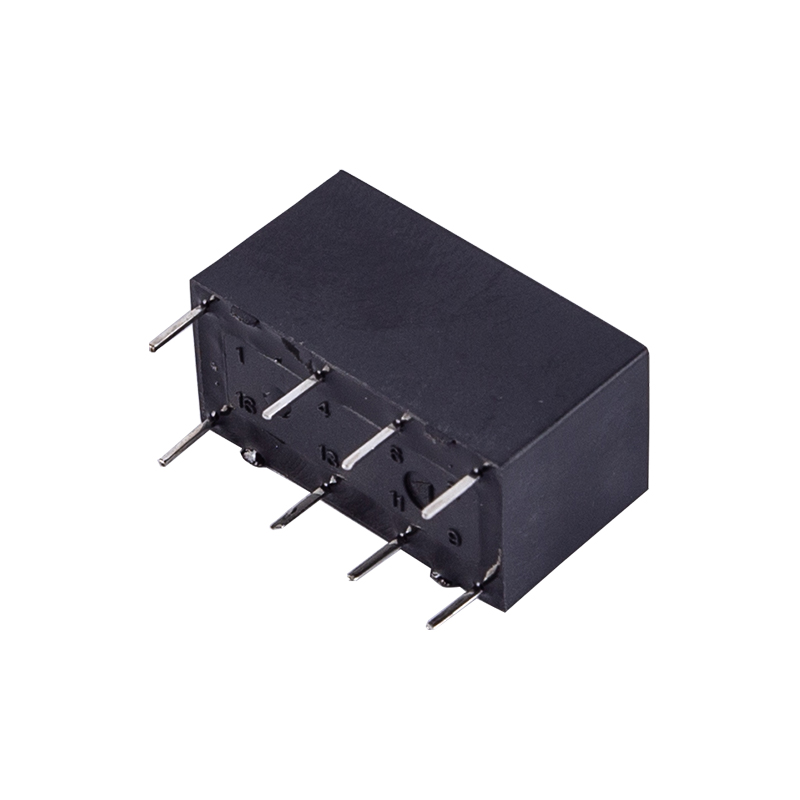

FH32 1A 2A Signal Relay UL TUV CQC Compliant

Name: FH32 1A 2A Signal Relay UL TUV CQC Compliant
Rating: 5 (99 reviews)

Features:
● 2A switching capability
● High sensitivity products,coil power is 200mW
● Standard DIP construction terminal
● Ultra - small type､gold plated contact
● Suit for complete machine wave soldering and integral cleaning process
● Environment-friendly product(RoHS compliant)
● Outline Dimensions:(20.2×10.0×11.5)mm
● Main application:Electrical protection､Automation､Communication

Download

PREV: FH38/FH38A 3A Signal Relay CQC Compliant NEXT: No next article

Parameters
Application
Describe

Parameters

Specifications	Item
Contact Data	Contact arrangement		2C
	Contact resistance(initial)		≤100mΩ(6VDC 1A)
	Contact material		AgNi+Gold Plating
Rated value	Rated load(Resistance load)		1A 125VAC 2A 30VDC
	Max.switching voltage		277VAC/30VDC
	Max.switching current		2A
	Max.switching capacity		250VA/60W
	Min.allowing load		10mV 10μA
Electrical performance	Insulation resistance(initial)		1000MΩ(500VDC)
	Dielectric strength (initial)	Between open contacts	750VAC,1min
		Between coil&contacts	1500VAC,1min
	Operate time		≤8ms
	Release time		≤5ms
Mechanical performance	Shock resistance	Functional	98m/s²(10g)
		Destructive	980m/s²(100g)
	Vibration resistance		10Hz~55Hz 1.5mm DA
Endurance	Mechanical		1×10⁷ops
	Electrical(Room temperature)		1A 125VAC 1×10⁵ops (ON/OFF=1s/9s) 2A 30VDC 5×10⁴ops (ON/OFF=1s/9s)
Operate condition	Ambient temperature		-40℃~85℃
	Humidity		5% to 90%
Termination			PCB(DIP Encapsulation)
Unit weight			Approx.5g
Construction			Plastic sealed

Describe

FH32 Signal Relay Switching Capability DIP Construction Terminal is a high-performance relay terminal device designed for signal relay and switching, suitable for a variety of industrial and electronic application scenarios. This product adopts DIP (Dual In-line Package) packaging, with compact size and flexible installation method, which is very suitable for use in space-constrained environments. The FH32 relay terminal has strong switching capability, supports load current up to 10A, and provides reliable electrical insulation performance. Its insulation resistance is up to 1000MΩ, and its dielectric strength can reach 5000VAC, ensuring stable operation even in high-voltage environments. In addition, the mechanical life and electrical life of the terminal reach 1×10^6OPS and 1.5×10^4OPS, respectively, indicating its durability and reliability under frequent operation. FH32 relay terminal uses AgSnO2 as the contact material, with low contact resistance and high contact reliability. The rated load current is 10A, which can meet the needs of industrial applications. Its wide operating temperature range, from -40°C to 85°C, adapts to various environmental conditions. This product complies with RoHS environmental standards and has passed international certifications such as VDE 0700 and IEC 60335-1, ensuring its performance in Safety, reliability, and environmental protection. In addition, the FH32 relay terminal also supports fast response time, with a startup time of no more than 4ms and a release time of no more than 8ms, making it perform well in applications that require fast signal switching. The FH32 Signal Relay Switching Capability DIP Construction Terminal is a relay terminal device that combines high performance, high reliability, and environmental protection, and is suitable for a variety of fields such as automotive electronics, industrial automation, and household appliances. Whether in terms of technical parameters or actual application effects, it is a trustworthy choice.
