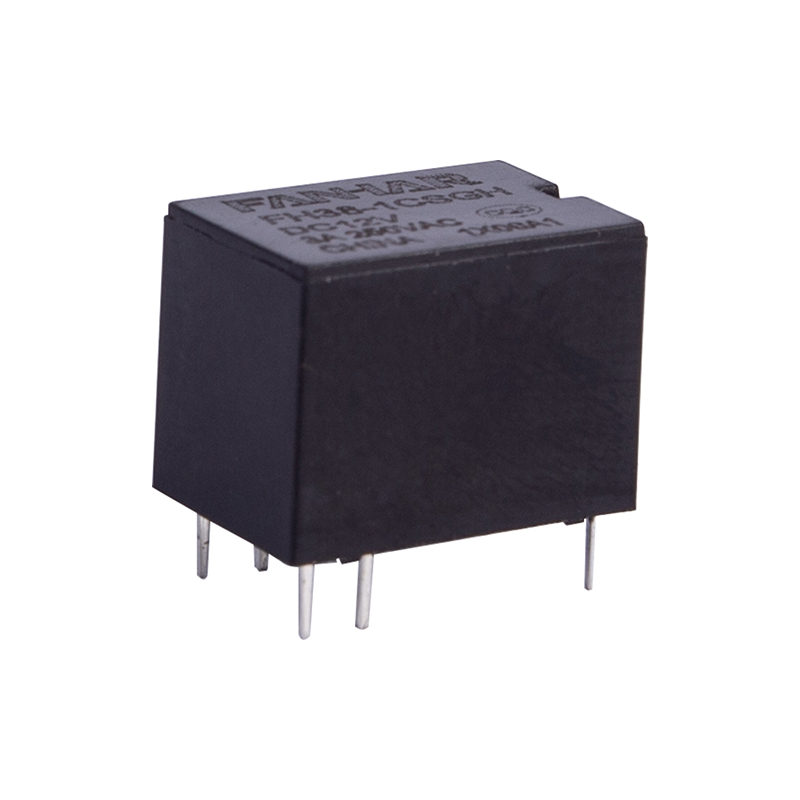

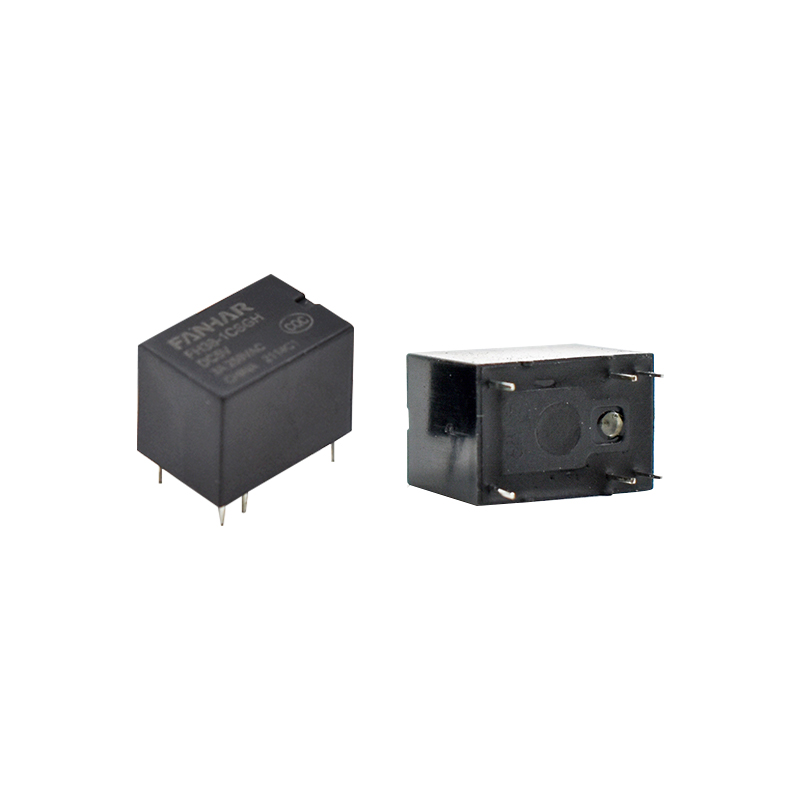

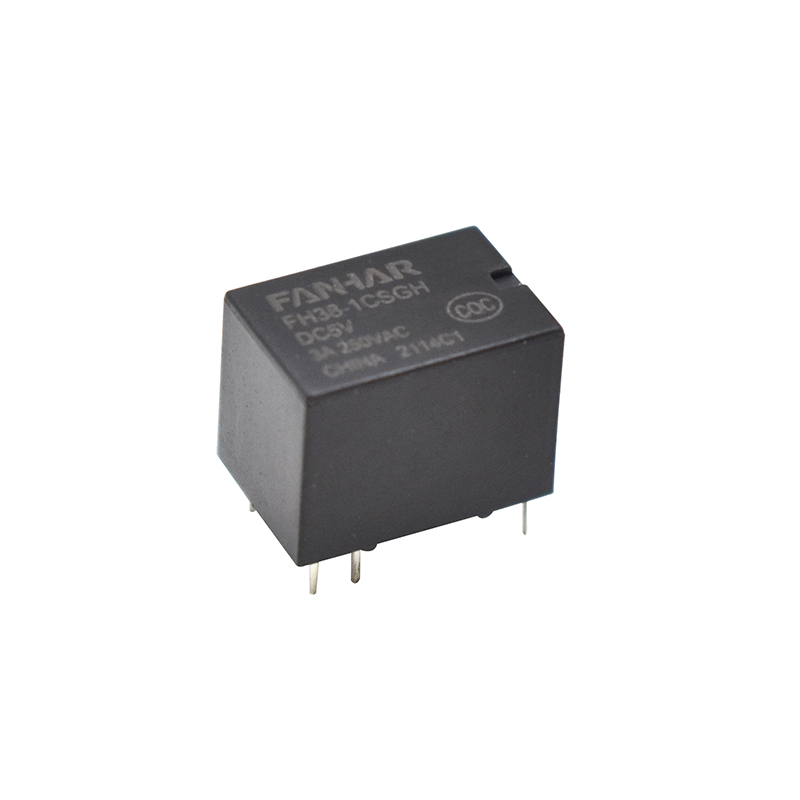

FH38/FH38A 3A Signal Relay CQC Compliant

FH38/FH38A 3A Signal Relay CQC Compliant

Features:

3A switching capability

Contact arrangement:1C

High sensitivity, coil power is 200 mW

Standard dual-in-line terminal (DIP Construction)

Ultra-small type､gold, gold-plated contact

Environment-friendly product (RoHS compliant)

Outline Dimensions::(15.5×10.5×11.5)mm

Main application: Power protection, Automation, Communication

Contact Us Download
  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item





Contact Data

Contact arrangement

1C

Contact resistance(initial)

≤100mΩ(6VDC 0. 1A)

Contact material

AgNi+Gold plated





Rated value





Rated load(Resistance load)

3A   250VAC

Max.switching voltage

277VAC

Max.switching current

5A

Max.switching capacity

750VA

Min.allowing load

5VDC 100mA





Electrical performance





Insulation resistance(initial)

1000MΩ(500VDC)

Dielectric strength (initial)

Between open contacts

500VAC, 1min

Between coil&contacts

1000VAC, 1min

Operate time

≤10ms

Release time

≤5ms

Mechanical

performance

Shock

resistance



Functional

98m/s2(10g)

Destructive

980m/s2(100g)

Vibration resistance

10Hz~55Hz 1.5mm DA

Endurance

Mechanical

1× 107ops

Electrical(Room temperature)

3A   250VAC                   5× 104ops (ON/OFF= 1s/9s)

Operate condition

Ambient temperature

-25℃~70℃

Humidity

5% to 85%

Termination

PCB(DIP Encapsulation)

Unit weight

Approx.5g

Construction

Plastic sealed、Flux proofed
