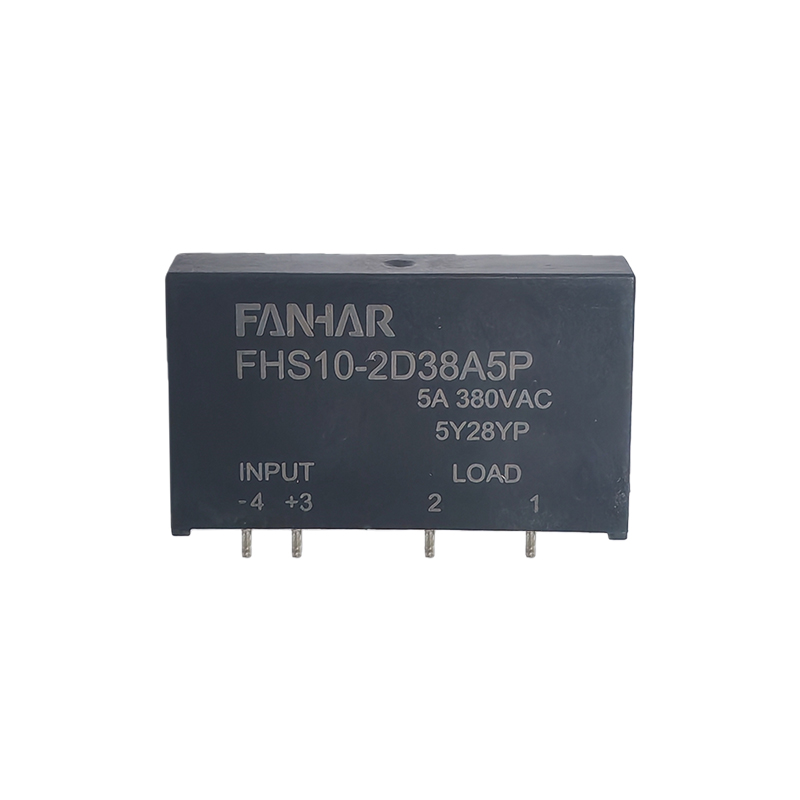

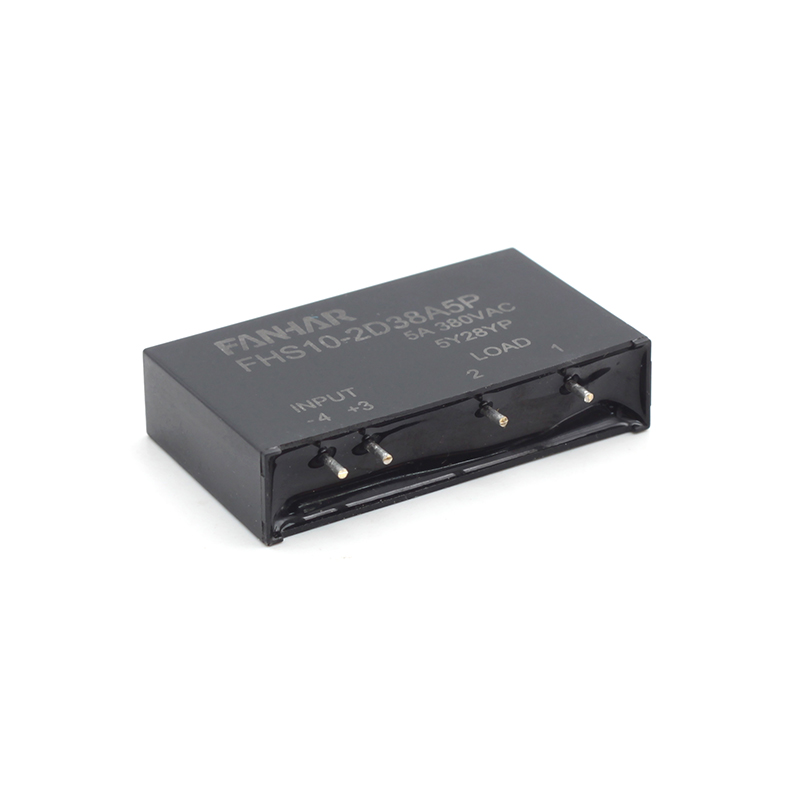

FHS10 5A 24A 38A 48A Solid State Relay

FHS10 5A 24A 38A 48A Solid State Relay

Features:

  • Non-contact switch haslong life, high reliability, fast switching speed and low control power;
  • Load current    5A75VAC~264VAC
  • Photoelectric isolation, dielectric strength 2500VAC
  • TTL compatible
  • PCBmounting,
  • Environment-friendly product(RoHS compliant)
  • OutlineDimensions:( 44.5×10.5×26)mm
  • Mainuses: electromagnetic valves, electric motors, incandescent lamps, communication and network equipment, computer terminal products, digital audio, video equipment, control systems, and instruments, medical devices, entertainment facilities, etc.;
  • GB/T 36640-2018;IEC 62314:2006
  • Parameters
  • Application
  • Describe
Parameters

INPUT SPECIFICATIONS (Ta=25℃)

Control voltage range

D

(4~32)VDC

1D

(9.6~14.4)VDC

2D

(19.2~28.8)VDC

24A

19.2VAC~28.8VAC

110A

85VAC~132VAC

220A

175VAC~264VAC

Must turn-on voltage

D

4VDC

1D

9.6VDC

2D

19.2VDC

24A

19.2VAC

110A

85VAC

220A

175VAC

Must turn-off voltage

1VDC

Max. input current

10mA

OUTPUT SPECIFICATIONS (Ta=25℃)



Load voltage range

24A

24VAC~280VAC

38A

24VAC~440VAC

48A

24VAC~530VAC

Load current range

0.1~5A

Max. surge current (10ms)

320A(10ms)

Max. I²t for fusing(10ms   A2S)

512

Max. off-state leakage current

≤5mA

Max. on-state voltage drop

1.5Vr.m.s

Max. turn-on time

Zerocross

≤1/2 Cycle+1ms

Random

≤1ms

Max. turn-off time

≤1/2 Cycle+1ms

Max. transient voltage

800VpK

Min. off-state(dv/dt)

1000V/uS

Max. zero-cross over voltage

±15V

Min. power factor

0.5

GENERAL SPECIFICATIONS (Ta=25℃)

Dielectric strength(input to output)

4000VAC     50HZ/60HZ    1min

Insulation resistance

1000MΩ(500VDC)

Overvoltage (1.2/50uS)

4KV

Mechanical

performance

Shock

resistance

Functional

98m/s2

Destructive

980m/s2

Vibration resistance

10Hz~55Hz 1.5mm DA

Operating temperature

-30℃~80℃

Storage temperature

-40℃~100℃

Ambient humidity

45%~85%

Unit weight

Approx.20g
