FH14L Compact High-Power Relay: An In-Depth Analysis of 15A Switching Capability and the Ideal Choice for Smart Home Control

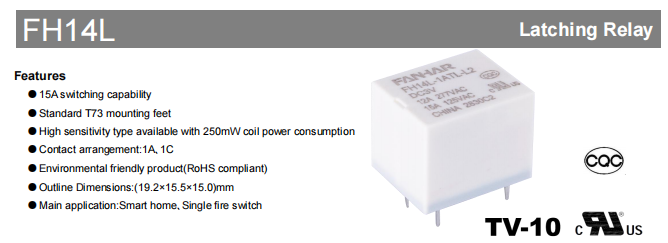

FH14L is a compact, high-performance relay specifically designed for modern smart control, industrial automation, and new energy applications. Within a compact footprint of only 19.2 x 15.5 x 15.0 mm, this product achieves a powerful switching capability of up to 15A and features a standard T73 mounting foot design, greatly enhancing PCB layout compatibility and replacement convenience. Fully compliant with RoHS environmental standards, the product offers a variety of configurations including single-coil and double-coil, standard and high-sensitivity (250mW) versions, and supports three contact forms: 1A, 1B, and 1C. It is widely used in smart homes, single-live-wire switches, industrial control, and security communications—electronic devices that require highly reliable load control.

FH14L 12A 15A Latching Relay UL CQC CompliantFH14L is a compact high-power relay (19.2×15.5×15.0mm) designed for smart home and industrial control applications, featuring 15A/125VAC and 12A/277VAC switching capability, a low-power sensitive version with a minimum coil power of 250mW, double-coil latching optionsView Product →

In-Depth Interpretation of Core Product Features

Powerful Load Capacity and High Voltage Withstand Capability: FH14L supports resistive load switching of 15A 125VAC and 12A 277VAC, with a maximum switching current of up to 16A and a maximum switching power of up to 3324VA. Its maximum switching voltage reaches 277VAC, allowing it to easily handle grid voltage fluctuations, making it suitable for scenarios such as high-power appliances, industrial lighting, and motor control.

Ultra-Low Power Consumption High-Sensitivity Design: For applications that are extremely sensitive to power consumption, such as smart home single-live-wire power extraction, FH14L specially offers a single-coil sensitive version with a coil power consumption of only 250mW. Compared with the standard 400mW version, power consumption is reduced by nearly 40%, effectively reducing the burden on the drive circuit and improving overall system energy efficiency.

Double-Coil Latching and Memory Function: Single-coil and double-coil latching versions are available. Latching relays operate only when triggered by a pulse and can maintain their state without continuous coil energization, which not only significantly reduces coil heat generation but also enables power-off memory functionality—making them an ideal choice for smart switches and state-holding applications.

Fast Response and Long Lifespan: Both the set time and reset time are ≤10ms, ensuring rapid response. Mechanical lifespan reaches up to 1×10⁶ operations, and electrical lifespan reaches 1×10⁴ operations at 15A 125VAC and 5×10⁴ operations at 12A 277VAC, ensuring long-term stable operation.

Eco-Friendly and Dual-Protection Construction: The contact material uses AgSnO2 (silver tin oxide), which is environmentally friendly and cadmium-free, fully compliant with RoHS standards. The product offers two constructions: flux-proofed and plastic-sealed. Flux-proofed is recommended for clean environments to maintain breathability, while plastic-sealed is recommended for unclean environments (containing H₂S, SO₂, NO₂, dust, and other pollutants) to provide comprehensive protection.

Wide Temperature Range and Strong Vibration Resistance: The product can operate stably within a wide temperature range of -40°C to 85°C. Shock resistance reaches 980m/s² (100g) (destructive), and vibration resistance is 10Hz~55Hz at 1.5mm double amplitude, adapting to harsh industrial and outdoor environments.

Detailed Technical Specifications

Contact Data

FH14L offers three contact forms: 1A (normally open), 1B (normally closed), and 1C (changeover). It uses AgSnO2 contact material, featuring low contact resistance and high load endurance, with a minimum allowable load of 5VDC 100mA, ensuring reliable conduction under small signals.

Electrical Performance

The relay features high insulation resistance (1000MΩ) and strong dielectric withstand capability (750VAC between contacts, 1500VAC between coil and contacts). Both set and reset times are controlled within 10ms, ensuring rapid response and real-time transmission of control signals.

Mechanical & Environmental Performance

The product offers excellent shock and vibration resistance and can operate stably within a wide temperature range of -40°C to 85°C, with a relative humidity adaptation range of 5% to 90%, meeting the requirements of most harsh environments.

Coil Specifications and Selection Guide

FH14L offers four coil specifications, supporting a wide voltage range from DC 3V to DC 48V. The coil power and resistance vary significantly among different specifications. When selecting, comprehensive consideration should be given to the power supply capability of the drive circuit, power consumption requirements, and whether latching functionality is needed. Below is a comparison of key parameters for each specification at typical voltages (DC 5V, 12V, 24V):

Note: For all coil specifications, the set voltage and reset voltage are ≤ 80% of the rated voltage, ensuring reliable operation during voltage fluctuations.

Certifications and Standards

FH14L relays have passed multiple international authoritative certifications (UL/C-UL, CQC), ensuring safety and compliance worldwide. Its UL certified ratings reach up to 16A/15A 250/125VAC and include a 5A 120VAC electronic ballast (E-ballast) load capability.

In-Depth Analysis of Application Fields

Smart Home: As the core executive component of smart switches, smart sockets, and appliance control modules, FH14L's high-sensitivity version (250mW) is particularly suitable for single-live-wire power extraction scenarios, effectively solving pain points such as "light flickering when turned off" or "inability to extract power" in smart switches.

Single-Live-Wire Switches: Utilizing high-sensitivity coil characteristics, it can reliably pull in under extremely small leakage currents, adapting to various single-live-wire smart panels without the need to modify existing wiring.

Industrial Control: Suitable for PLC output modules, instruments and meters, power control, and motor start/stop control. Its 277VAC high voltage withstand and 3324VA high-power switching capability can cover most industrial loads.
