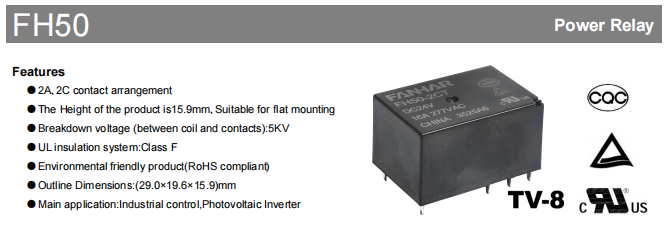

FH50 Industrial Relay

In the current swiftly changing realm of industrial automation and renewable energy, the requirements for fundamental system components—relays—have surpassed the basic role of "activating and deactivating circuits." They must now withstand harsher environments, handle higher power loads, ensure extended longevity, and comply with stringent global environmental regulations. Today, we provide an in-depth analysis of the FH50 High-Power Relay, a 16A high-performance device specifically engineered for demanding applications like industrial control and photovoltaic inverters.

Core Advantages

The FH50 represents more than just a relay; it is a solid commitment to system stability. Its core strengths are evident in the following aspects:

High-Density Design, Flexible Installation

With compact dimensions of just 29.0mm (L) x 19.6mm (W) x 15.9mm (H), its small footprint makes it exceptionally well-suited for flat mounting. This effectively saves valuable PCB space, aligning perfectly with the modern trend towards miniaturization and high-density design in industrial equipment. Its lightweight construction, approximately 16.5g, also facilitates automated assembly and production.

Electrical Isolation and Safety

Ultra-High Withstand Voltage: The dielectric strength between the coil and contacts attains an astonishing 5000VAC. This ensures strong electrical isolation for the system, thereby safeguarding the low-voltage control circuitry from errors on the high-voltage side—a vital characteristic in high-voltage applications such as photovoltaic inverters.

Insulation Rating: The initial insulation resistance attains 1000MΩ (at 500VDC), ensuring negligible leakage current.

UL Class F Insulation System: This indicates that the insulation materials can endure temperatures up to 155°C, providing a considerable safety margin and improved reliability.

Powerful Load Handling Capability

16A Rated Load: It can easily handle a 16A resistive load at 277VAC, with a maximum switching power of up to 4432VA. This is sufficient to operate various industrial machinery, motors, heaters, and further devices.

High-Quality Contacts: Utilizes environmentally sustainable AgSnO2 (Silver Tin Oxide) contact material.Compared to traditional AgCdO, AgSnO2 offers resistance to welding and arc erosion, leading to exceptional performance in high-current, high-inrush applications and markedly extending electrical lifespan.

Minimum Load Capability: Supports minimal loads down to 5VDC 100mA, allowing its use in some signal switching scenarios, thereby enhancing its versatility.

Fast Response and High Robustness

Quick Operation: Operating time ≤10ms, release time ≤5ms, satisfying the requirements for quick reaction in industrial control systems.

Broad Environmental Adaptability: The operating temperature range spans -40°C to +85°C, with a humidity range of 5% to 85%. It functions reliably in both extreme cold and intense heat.

Excellent Mechanical Performance: Exhibits shock resistance of 10g (operational) and 100g (catastrophic), in addition to vibration resistance of 10Hz to 55Hz, 1.5mm DA. This guarantees dependable functionality in industrial settings exposed to mechanical vibrations and impacts.

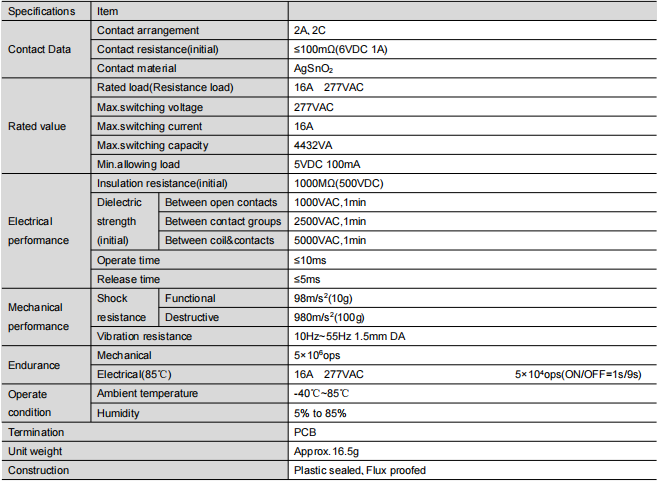

In-Depth Technical Parameter Analysis (Essential for Selection)

To assist you in making a more precise selection, we provide a deeper interpretation of key technical parameters:

Typical Applications: Beyond PV and Industrial Control

While its primary applications are industrial control and photovoltaic inverters, based on its performance, the FH50 is also widely used in:

PV Inverters: For switching and protection circuits on both direct current and alternating current sides. The high withstand voltage characteristic perfectly matches the high-voltage environment of PV systems.

Industrial Control Panels: Functioning as an intermediary between PLCs, timers, temperature controls, and external loads, including motors, solenoid valves, and heaters.

Smart Home / Building Automation: Utilized in high-power lighting regulation, HVAC systems, pump management, etc.

EV Charging Equipment: In AC charging piles, functioning as a key component for control pilot and main circuit switching.

Power Management: For power switching and output control in equipment like UPS and voltage regulators.

Selection and Usage Guide: How to Make the Best Choice?

The documentation highlights two structural types, which are key to the selection process:

Flux Proofed Type:

Recommended Environment: Clean environments, such as inside household appliances or air-conditioned distribution cabinets. It effectively prevents flux gases from entering the relay during the PCB soldering process.

Note: It does not provide complete protection against the infiltration of external corrosive gases (such as H2S, SO2, NO2) and particulate matter.

Plastic Sealed Type:

Recommended Environment: Unclean or abrasive conditions, including chemical facilities, outdoor machinery, or workshops with elevated dust concentrations. Its internal contacts are completely isolated from the external environment, offering corrosion resistance and dust protection.

Conclusion: If you have extreme requirements for long-term reliability or cannot predict the final operating environment, opting for the plastic sealed type is the more robust solution.

Installation and Design Reminders

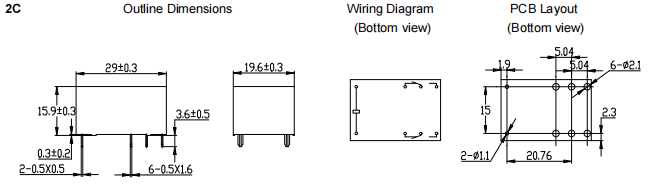

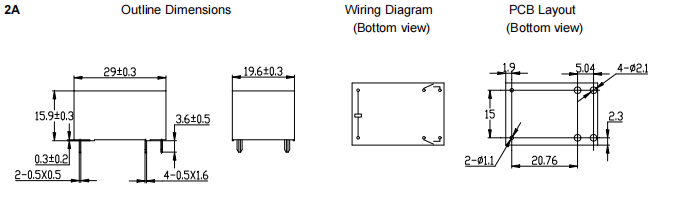

Strictly adhere to the recommended PCB layout tolerance (±0.1mm) and outline dimension tolerances to ensure proper mounting and soldering quality.

During product handling and installation, avoid dropping or subjecting it to strong impacts, as this may cause changes to its internal parameters.

Summary and Outlook

The FH50 High-Power Relay, characterized by its compact size, an isolation voltage of up to 5KV, a significant load capacity of 16A, and comprehensive international safety certifications (UL, TUV, CQC), represents a formidable choice for the industrial control and renewable energy sectors. It exceeds a simple switching component; it acts as a vital ally that ensures the lasting, reliable performance of your system and enhances the market competitiveness of your products.

The FH50 is an exemplary option for those in pursuit of a high-performance, high-reliability power relay, meriting exploration and evaluation. Reach out to us immediately to obtain samples and technical assistance, and allow the FH50 to protect your forthcoming project!

Disclaimer: The parameters in this article are compiled based on public datasheets. For specific selection and design, please refer to the official latest datasheet. Product specifications are subject to change without notice.
