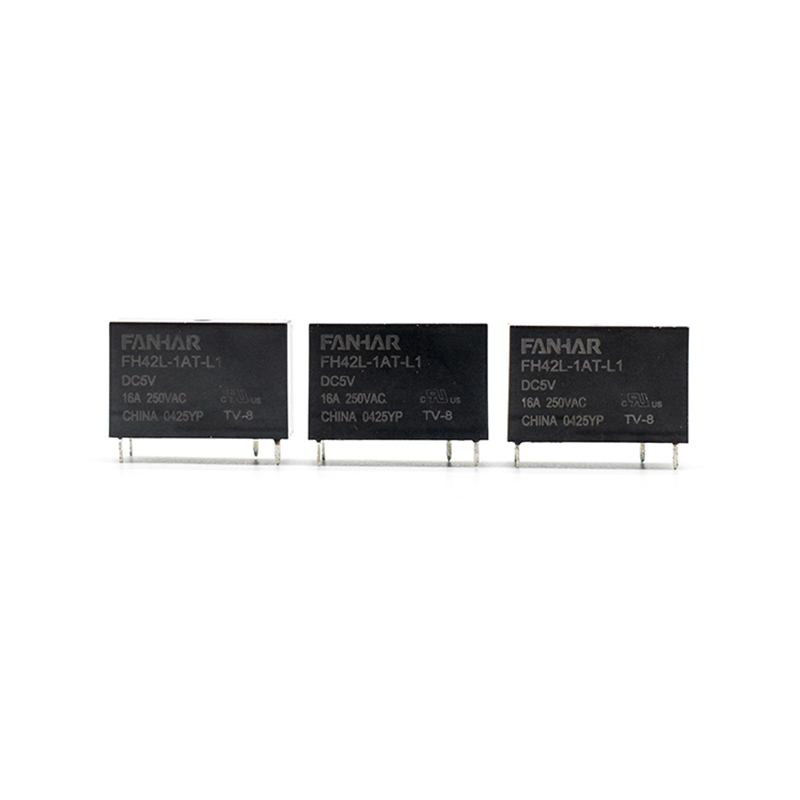

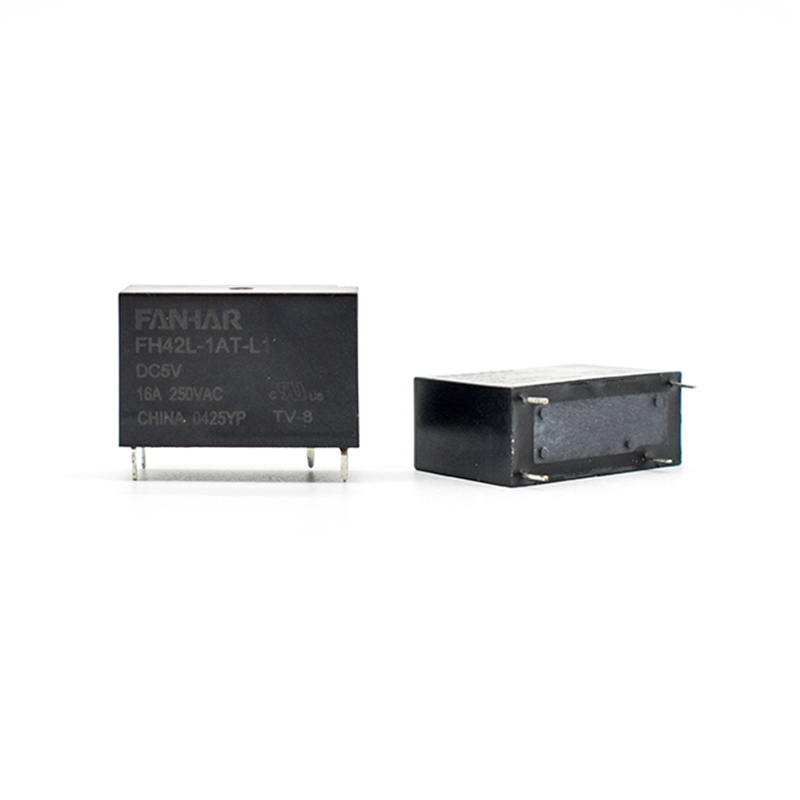

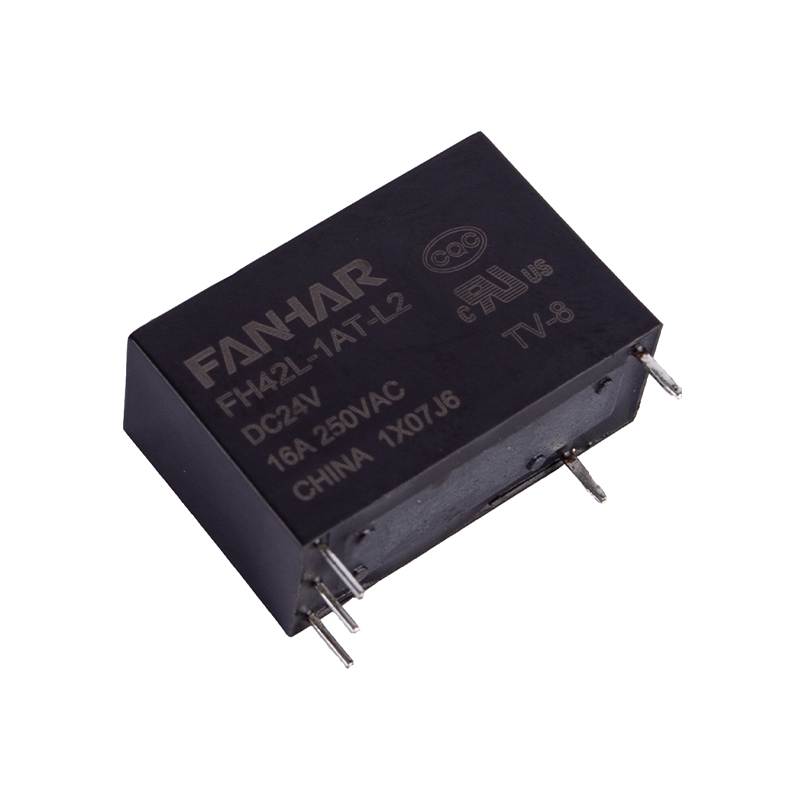

FH42L 16A 20A Latching Relay UL CQC Compliant

16A /20A switching capability
Single coils and double coils are optional
High sensitive, coil power is 250mW
More lower height(the height is 15.8mm)
Breakdown voltage(between contact and coil):5KV
UL insulation system: Class F
Environment-friendly product(RoHS compliant)
Outline Dimensions:(24.0×10.0×15.8)mm
Main application: Smart home､Lighting control､Electric power meter

Download

PREV: FH44L 16A Latching Relay UL TUV CQC Compliant NEXT: No next article

Parameters
Application
Describe

Parameters

Specifications	Item
Contact Data	Contact arrangement			1A､1B
	Contact resistance			≤50mΩ(6VDC 1A)
	Contact material			AgSnO₂
Rated value	Rated load(Resistance load)			16A 250VAC (Standards) 20A 250VAC
	Max.switching voltage			277VAC
	Max.switching current			20A
	Max.switching capacity			4000VA
	Min.allowing load			5VDC 100mA
Electrical performance	Insulation resistance(initial)			1000MΩ(500VDC)
	Dielectric strength (initial))	Between open contacts		1000VAC,1 min
		Between coil&contacts		4000VAC,1 min
	Set time			≤15ms
	Reset time			≤15ms
Mechanical performance	Shock resistance		Functional	98m/s²
			Destructive	980m/s²
	Vibration resistance			10Hz~55Hz 1.5mm DA
Endurance	Mechanical			1×10⁶ops
	Electrical(Room temperature)			16A 250VAC 9×10⁴ops(ON/OFF=1s/9s) 20A 250VAC 5×10⁴ops(ON/OFF=1s/9s) 600W 120VAC(LED lamp load) 5×10⁴ops(ON/OFF=1s/9s) TV-8 2.5×10⁴ops(ON/OFF=1s/9s)
Operate condition	Ambient temperature			-40℃~85℃
	Humidity			5% to 90%
Termination				PCB
Unit weight				Approx.8g
Construction				Plastic sealed､Flux proofed
