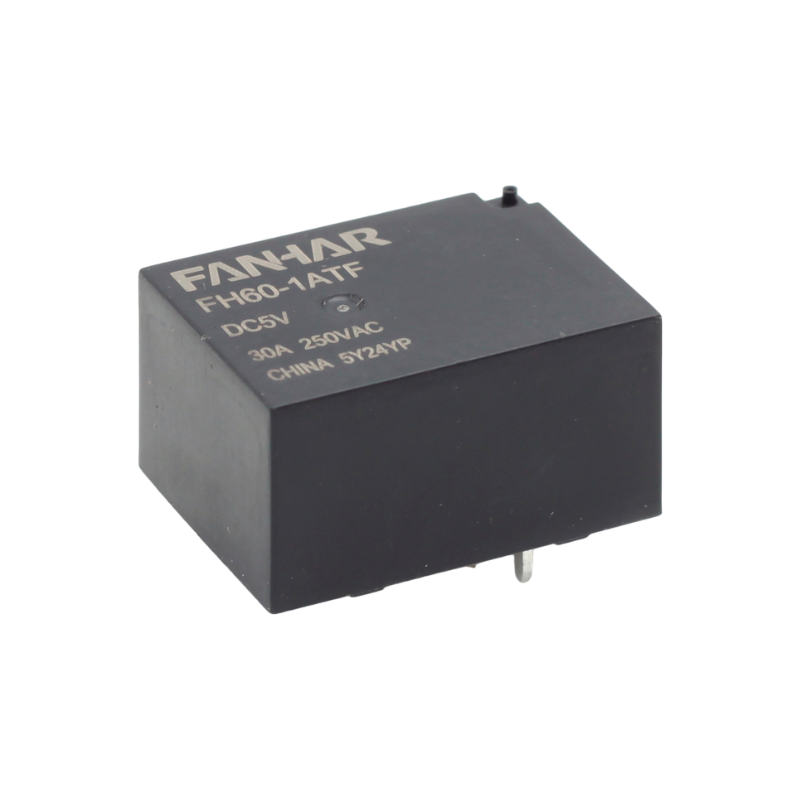

FH60 30A Latching Relay

FH60 30A Latching Relay

Features:

  • 30A switching capability
  • UL insulation system: ClassF
  • Breakdown voltage (between coil and contacts):4kV
  • Clearance/Creepage(between coil and contacts):>6.4mm
  • OutlineDimensions:(28.8*21.5*15.6)mm
  • Parameters
  • Application
  • Describe
Parameters
Specifications Item FH60
Contact Data Contact arrangement 1A
Contact resistance(initial) ≤100mΩ(6VDC 1A)
Contact material AgSnO2
Rated value Rated load(Resistance load) 30A   250VAC(Standard)
40A   250VAC(High load)
Max. switching voltage 480VAC
Max .switching current 40A
Ma x.switching capacity 7500VA
M in. allowing load 5VDC 100mA
Electrical
performance
Insulation resistance(initial) 1000MΩ(500VDC)
Dielectric
strength (initial)
Between 1500VAC, 1min
open contacts
Between 4000VAC, 1min
coil&contacts
Operate time ≤15ms
Release time ≤10ms
Mechanical
performance
Shock
resistance
Functional 98m/s2(10g)
Destructive 980m/s2(100g)
Vibration resistance 10Hz~55Hz 1.5mm DA
Endurance Mechanical 1× 107ops
Electrical(Room temperature) 30A 250VAC 5× 104ops(ON/OFF= 1s/9s)
40A 250VAC 6× 103ops(ON/OFF= 1s/9s)
Operate
condition
Ambient temperature -40℃~ 105℃
Humidity 5% to 85%
Termination PCB
Unit weight Approx. 18g
Construction Plastic sealed, Flux proofed
