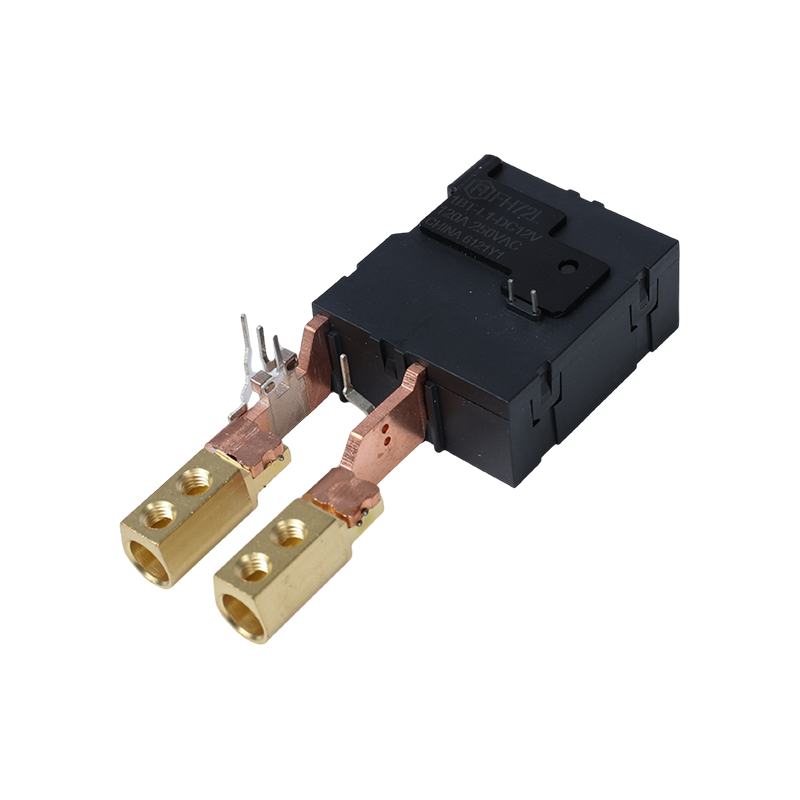

FH72L 120A Latching Relay

FH72L 120A Latching Relay

Features
● 120A switching capability
● Single coil and double coils are available
● External accessories such as manganese copper shunts and transformers can be ordered according to customer requirements
● Breakdown voltage (between contact and coil):4KV
● Meet standard of IEC62052-31:2005 UC3
● Environment-friendly product(RoHS compliant)
● Outline Dimensions:(48×43×20.8)mm
● Can be integrated design, convenient automatic installation and production
● Power frequency interference resistance, and good consistency
● Main application: smart meter, compound switch, Smart home, new energy

  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item

Contact Data

Contact arrangement

1A 、 1B

Contact resistance(initial)

≤0.5mΩ(6VDC 1A)

Contact material

AgSnO2

Rated value

Rated load(Resistance load)

120A   250VAC

Max.switching voltage

250VAC

Max.switching current

120A

Max.switching capacity

25000VA

Electrical

performance

Insulation resistance(initial)

1000MΩ(500VDC)

Dielectric strength

(Initial)

Between open contacts

2000VAC 1min

Between coil&contacts

4000VAC 1min

Closing time

≤30ms

Opening time

≤30ms

Mechanical performance

Shock

resistance

Functional

98m/s2(10g)

Destructive

980m/s2(100g)

Vibration resistance

10Hz~55Hz 1.5mm DA

Endurance

Mechanical

7×103ops

Electrical

ON/OFF=10S/20S

120A   220VAC                                                          1×103ops(COSφ=1)

Operate condition

Ambient temperature

-40℃~85℃

Humidity

5%~85%RH

Termination

Plug-in needle type+Screw type(XB)

Unit weight

Approx. 121.8g (Without attachment)

Construction

Flux proofed
