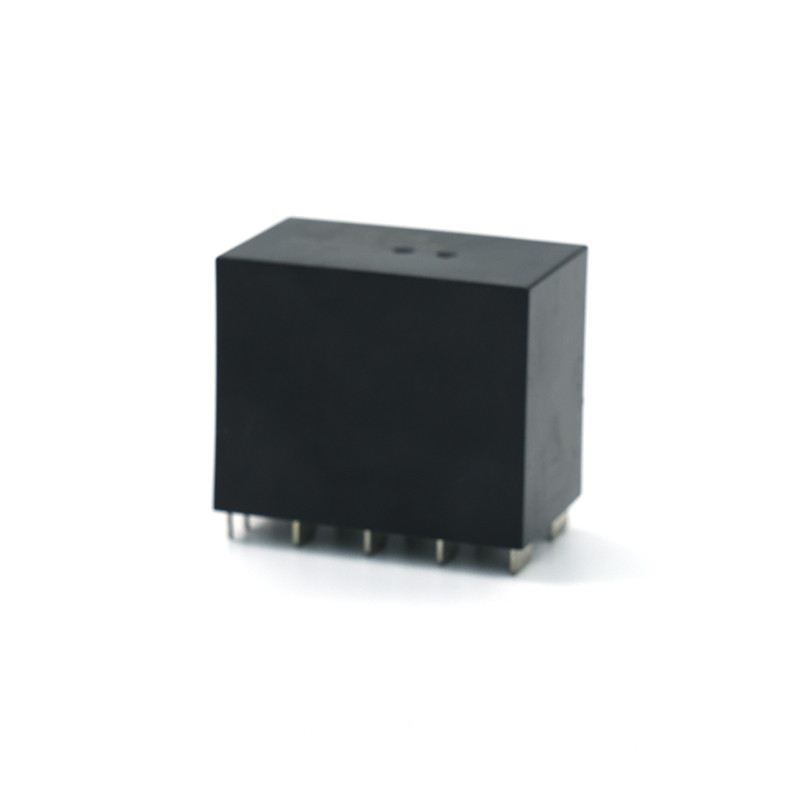

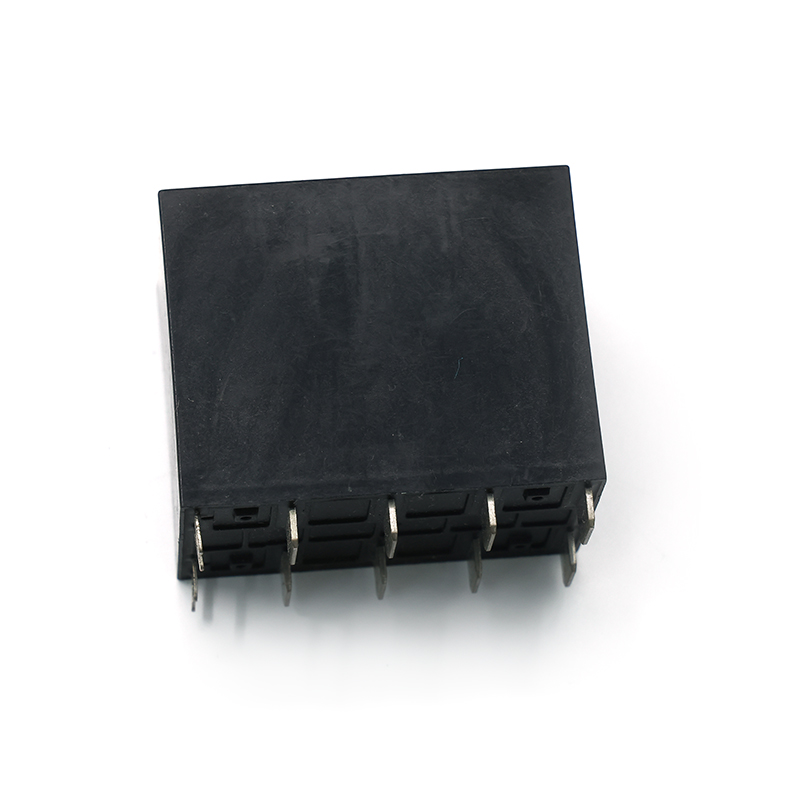

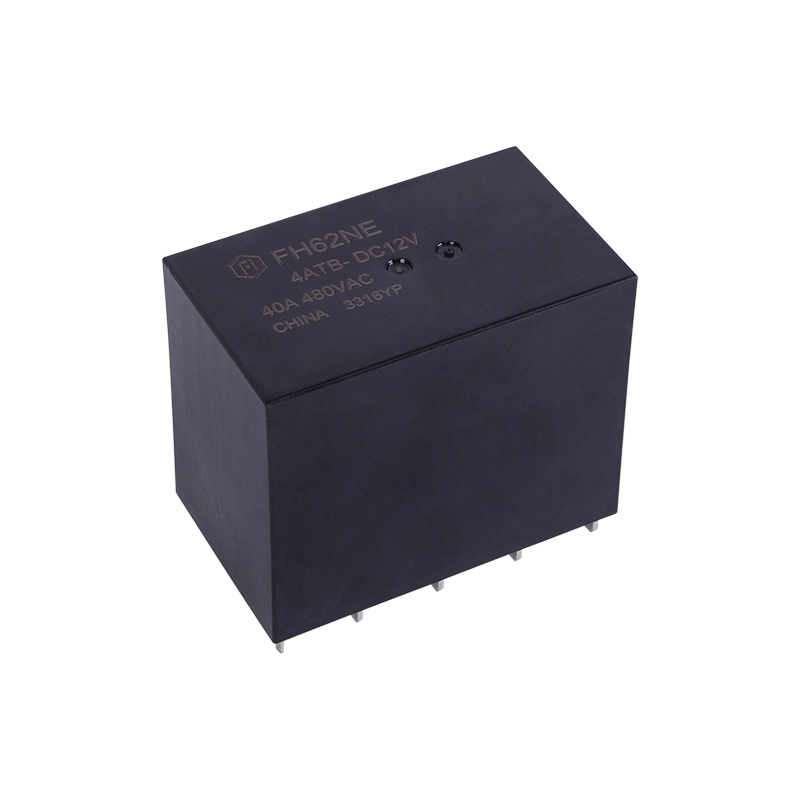

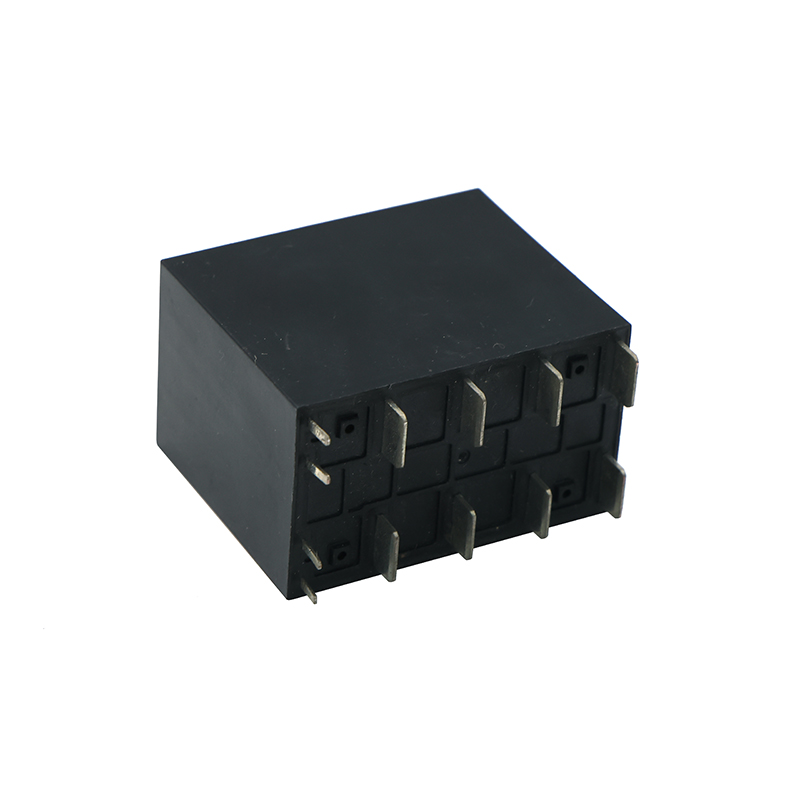

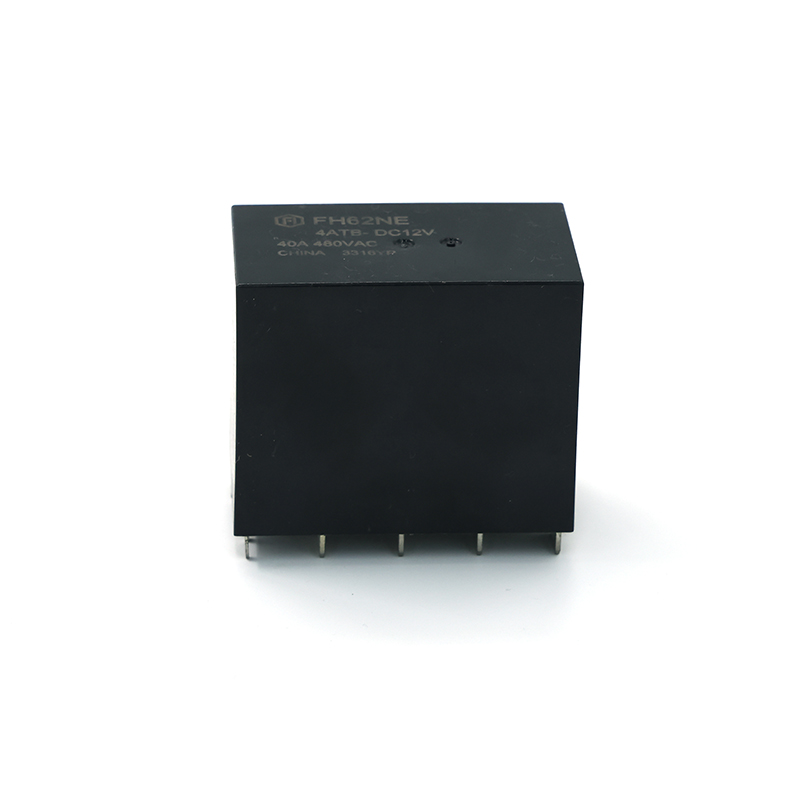

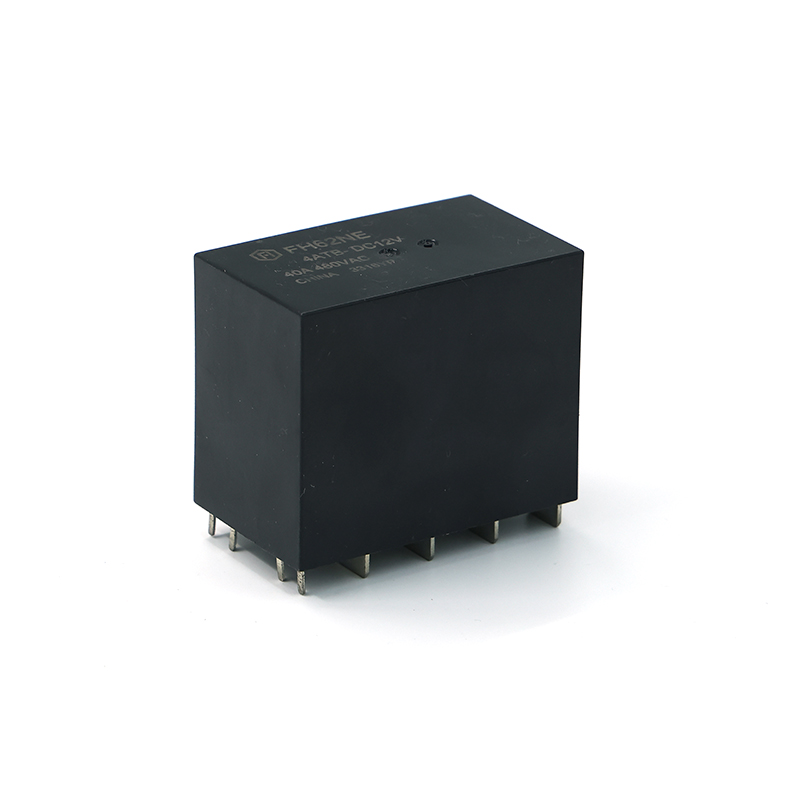

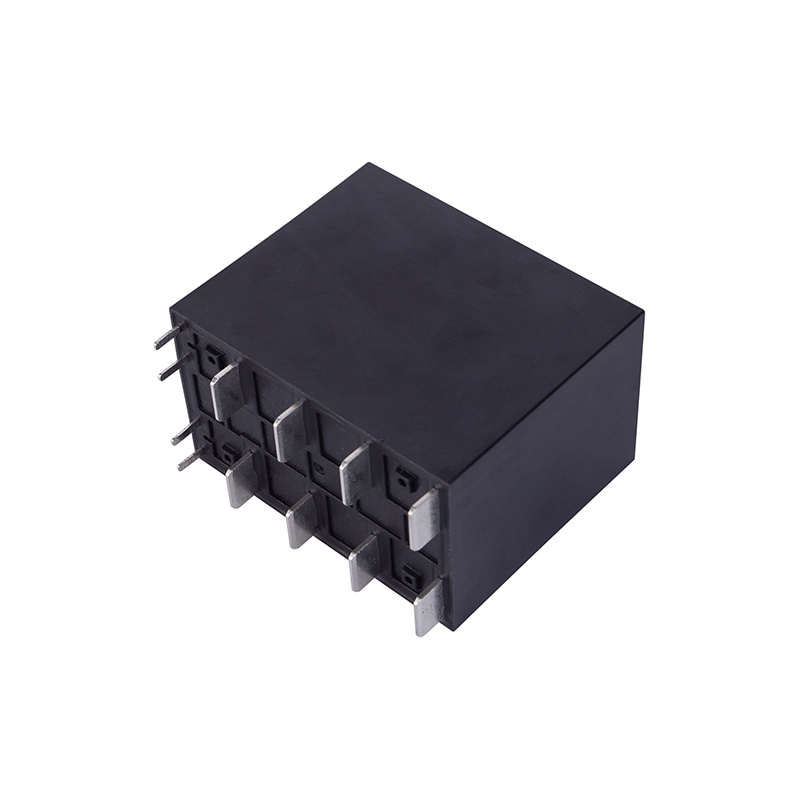

FH62NE 40A New Energy Relay

Features：
4 sets of 40A main contacts+1 set of auxiliary contact
When the main contact sticks, the Auxiliary contacts meet the Safety monitoring function (According to IEC61810-3)
Contact gap :3.9mm(main contact) Auxiliary contact:Min0.5mm(When the main contact sticks)
Coil power is 4.8W
UL insulation system: Class F
Meet the 3KA short circuit current test of IEC 62955
Creep distance:>8mm
Outline Dimensions:(58x35x47)mm
Main applications: Inverter for solar photovoltaic power generation, AC charge spots
The coil voltage is applied to the complete machine to save power loss

Download

PREV: FH63NE 120A New Energy Relay UL TUV CQC Compliant NEXT: No next article

Parameters
Application
Describe

Parameters

Specifications	Item
Contact Data	Contact arrangement		4A	4AB
	Contact resistance(initial)	Main contact	≤10mΩ(6VDC 20A)
		Auxiliary contact	/	≤100mΩ(6VDC 1A)
	Contact material	Main contact	AgSnO2
		Auxiliary contact	/	AgNi
Rated value	Rated load (Resistance load)	Main contact	40A 480VAC
		Auxiliary contact	/	1A 277VAC, 1A 30VDC
	Max.switching voltage	Main contact	480VAC
		Auxiliary contact	/	277VAC,30VDC
	Max.switching current	Main contact	40A
		Auxiliary contact	/	1A
	Max.switching capacity	Main contact	19200VA
		Auxiliary contact	/	277VA/30W
Electrical performance	Insulation resistance(initial)		1000MΩ(500VDC)
	Dielectric strength (Initial)	Disconnect between main contacts	2000VAC 1min(50Hz/60Hz)
		Between main contact and auxiliary contact
		Between main contact groups
		Between coil and auxiliary contact
		Between the coil and the main contact	5000VAC 1min(50Hz/60Hz)
		Disconnect between auxiliary contacts	/	1000VAC 1min(50Hz/60Hz)
	Operate time		≤40ms
