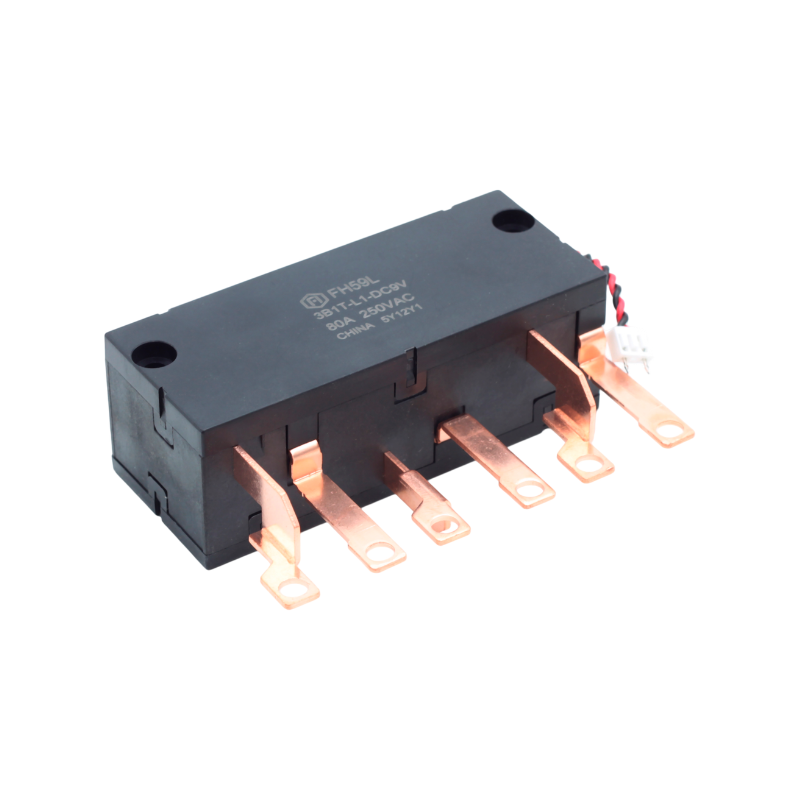

FH59L 80A Power Relay

FH59L 80A Power Relay

Features

  • 80A switching capability
  • Lowconsumption, pulse-driven operation
  • Strongresistance ability to shock and vibration, High reliability
  • Breakdown voltage (betweencontactand coil):4KV
  • Environment-friendly product(RoHScompliant)
  • Meetstandardof IEC62052-31:2005 UC2
  • OutlineDimensions:(98.4×40.3×34.8)mm
  • Mainapplication: smartmeter
  • Parameters
  • Application
  • Describe
Parameters
Specifications Item
Contact Data Contact arrangement 3A 、3B
Contact resistance(initial) ≤1.0mΩ
Contact material AgSnO2
Rated value Rated load(Resistance load) 80A   250VAC
Max. switching voltage 250VAC
Max .switching current 90A
Max .switching capacity 20000VA
Electrical
performance
Insulation resistance(initial) 1000MΩ(500VDC)
Dielectric
strength (Initial)
Between open contacts 2000VAC    1min    50/60Hz
Between coil&contacts 4000VAC    1min    50/60Hz
Closing time ≤20ms
Opening time ≤20ms
Creepage distance 8mm
Mechanical
performance
Shock
resistance
Functional 98m/s2(10g)
Destructive 980m/s2(100g)
Vibration resistance 10Hz~55Hz 1.5mm DA
Endurance Mechanical 1×105ops
Electrical 1×104ops
Operate
condition
Ambient temperature -40℃~70℃
Humidity 5%~85%RH
Unit weight Approx. 230g
