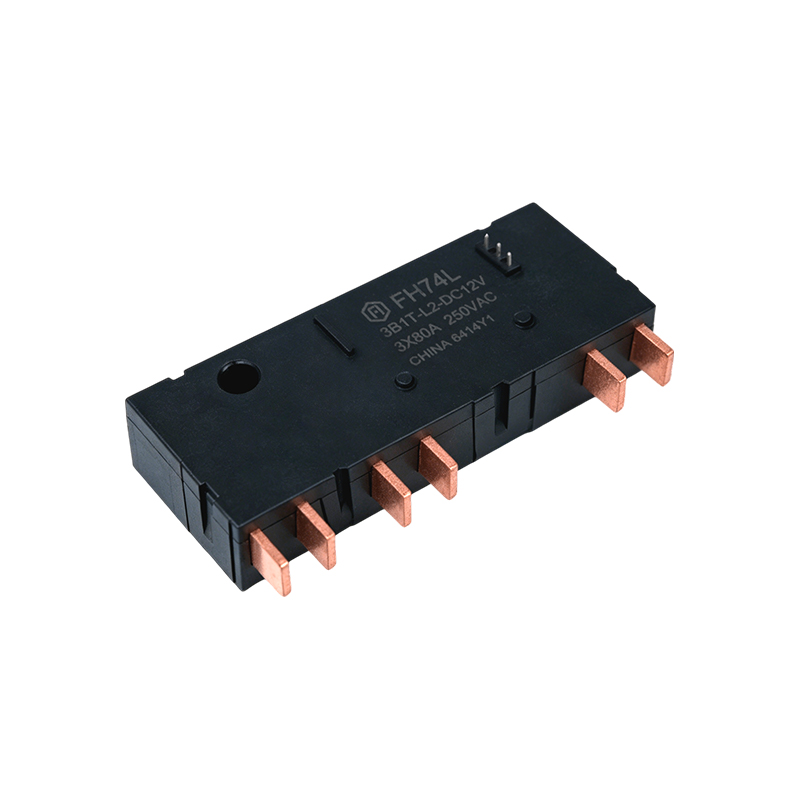

FH74L 120A Latching Relay

FH74L 120A Latching Relay

Features
● 80A switching capability
● Single coil and double coils are available
● External accessories such as manganese copper shunts and transformers can be ordered according to customer requirements
● Breakdown voltage (between contact and coil):4KV
● Meet standard of IEC62052-31:2005 UC2
● Optional auxiliary contact available, with synchronous/
asynchronous state selectable relative to load-side contact
● Environment-friendly product(RoHS compliant)
● Outline Dimensions: (97.5*36*18.8)mm
● Can be integrated design, convenient automatic installation
and PR production
● Power frequency interference resistance, and good consistency
● Main application: smart meter

  • Parameters
  • Application
  • Describe
Parameters

Specifications

Item

 Contact Data

Contact arrangement

3A 、3B

Contact resistance(initial)

≤1.0mΩ(6VDC 1A)

Contact material

AgSnO2

Rated value

Rated load(Resistance load)

80A   250VAC

Max. switching voltage

276VAC

Max. switching current

100A

Max. switching capacity

27600VA

Electrical

performance

Insulation resistance(initial)

1000MΩ(500VDC)

Dielectric strength (Initial)

Between open contacts

2000VAC    1min

Between coil&contacts

4000VAC    1min

Closing time

≤30ms

Opening time

≤30ms

Mechanical performance

Shock

resistance

Functional

98m/s2(10g)

Destructive

980m/s2(100g)

Vibration resistance

10Hz~55Hz 1.5mm DA

Endurance

Mechanical

3×105ops

Electrical

ON/OFF=1S/9S

80A   250VAC                                        1×104ops(COSφ=1)

Electrical UC2(1)

ON/OFF=10S/20S

80A   230VAC

5000ops(COSφ=1)

Total 10000ops

5000ops 次(COSφ=0.5)

Operate condition

Ambient temperature

-40℃~85℃

Humidity

5%~85%RH

Termination

Plug-in needle type+Screw type(XB)

Unit weight

Approx. 270g (Without attachment)

Construction

Flux proofed
